Program Control Paper Cutting Machine /Paper Cutter/Guillotine ( 137S )
Program Control Paper Cutting Machine /PaperCutter/Guillotine 137SFunction1. 7-inch full touch LCD;2. The resolution rate is 0.05mm;3. 60 program units;4. Over 6000 different cutting positions;5. The max paper-pushing speed is 5-10m/min.================================================== Configurati......
Send Inquiry
Product Description
Function
1. 7-inch full touch LCD;
2. The resolution rate is 0.05mm;
3. 60 program units;
4. Over 6000 different cutting positions;
5. The max paper-pushing speed is 5-10m/min.
==================================================
Configuration
1. It has self-diagnostic function of troubles and displays the
operating pattern with dynamic follow-up.
France, Japan and Korea, Taiwan ball lead screw, and imported bearing
of low maintenance.
3. It has linear double guiderail and slotless working table to ensure the accuracy
for cutting and it has IR ray protective device.
4. Optical knife-line alignment, button operated by two hands and single
circulation cutting device make it convenient for cutting.
5. Flat worm speed reducer transmission for cutting

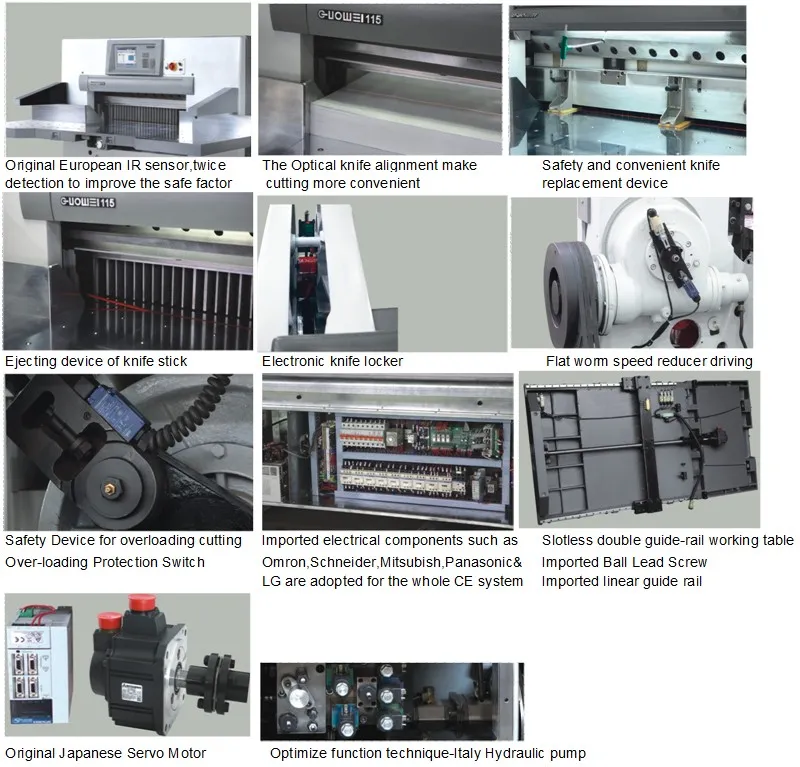

Configuration of Paper Cutting Machine/Paper Cutter/Guillotine

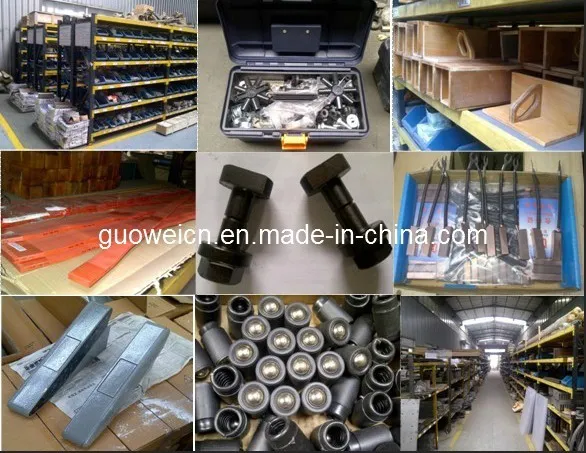

Spare Parts Warehouse

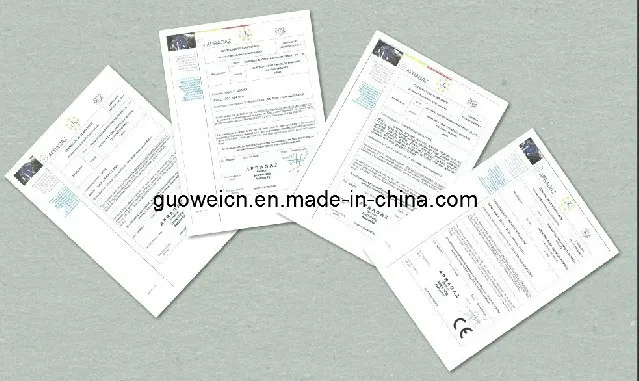

CE Certificate
Our Advantages
- Experience in paper cutting machine for over 15 years and served customers all over the world. Enjoying high reputation in domestic & oversea market.
- We have biggest production, 80%of our cutting machines are for export, so our machine is following closely to quality.
- A group of High-tech technical staff
- Cooperating with famous group , such as :Schneider,OMRON, MOELLER, LG, Leuze electronic, AirTAC, ABB, NSK, Mitsubishi, Panasonic, atos,brevini etc.
Our commitment
- Strictly follow ISO quality control, competitive price, fast delivery
- We will not take a chance on selling marginal or poorly made products.
| Model | Unit | 137 | 155 | 166 | 186 | 220 |
| Max.Cutting Width | cm | 137 | 155 | 166 | 186 | 220 |
| inch | 54 | 61 | 65.4 | 73.2 | 86.6 | |
| Max.Cutting Height (without false clamp) | cm | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min.Cutting Size (without false clamp) | cm | 3 | 3 | 3 | 3 | 3 |
| inch | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Front Table length | cm | 74 | 75 | 75 | 75 | 75 |
| inch | 29.1 | 29.5 | 29.5 | 29.5 | 29.5 | |
| Max.Cutting Speed | times/min | 45 | 42 | 42 | 40 | 33 |
| Max.Clamp Pressure | N | 45000 | 55000 | 60000 | 65000 | 70000 |
| Power of Main Motor | Kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Paper Feeding Motor | Kw | 1 | 1 | 1 | 1 | 1.1 |
| Air Pump | Kw | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 |
| Net Weight | Kg | 4500 | 5200 | 5500 | 6800 | 10200 |
| Packing Size(L×W×H) | cm | 280×160×215 | 296×165×215 | 315×160×215 | 340×182×230 | 390x190x270 |
| Configuration | |
| Model | S |
| Imported ball lead screw | YES |
| Imported double guide-rail slotless working table | YES |
| Chrome-plated main and assistance working table with air ball | YES |
| IR photoelectric protection and hands operating protection | YES |
| Ejecting device for cutting stick | YES |
| Inside electronic knife locker | CAN |
| Safe and convenient knife replacement system | YES |
| Overloading protection device for cutting | YES |
| Flat worm speed reducer transmission | YES |
| Optical knife alignment | YES |
| PLC conrtol system | NO |
| Imported hydraulic system | YES |
| Imported electric components | YES |
| Enlarged side working table | CAN |
| Soft pressure | CAN |
| Optimize function | NO |
| YES: Standard configuration | |
| CAN: Optional configuration | |
| NO: Without this configuration | |
