Paper Cutter (1400/ 1700 /1900)

Paper Cutter (1400/1700/1900)  is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 8 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.

Model: CHM-1400mm/1700mm/1900mm
MAIN SPECIFICATIONS:
Reference weight of cutting paper: 60-550GSM
Cutting accurancy: 0.5mm tolerance allowed
Max. Cutting speed: 300sheets/min
Max. Cutting meter speed: 300m/min
Cutting lenght range: 450-1450mm
Max. Diameter of reel: 1800mm
Paper stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700/1900mm

MAIN WORK SECTIONS:

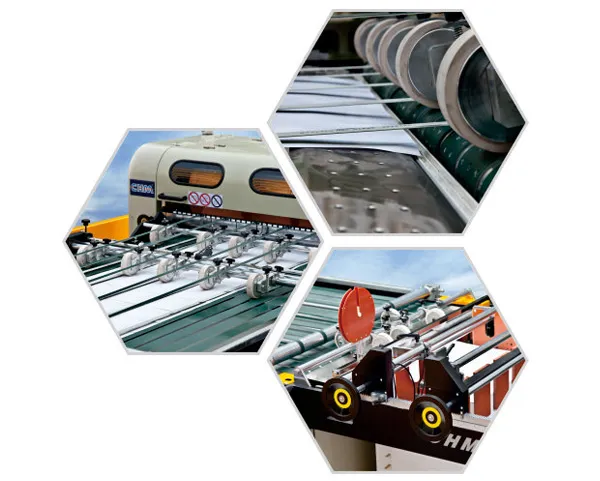

Cutting section:
1. Computer operation interface, easy to operate.
2. High precision special alloy steel knife
3. Cutting accuracy is at 0.5 tolerance allowed

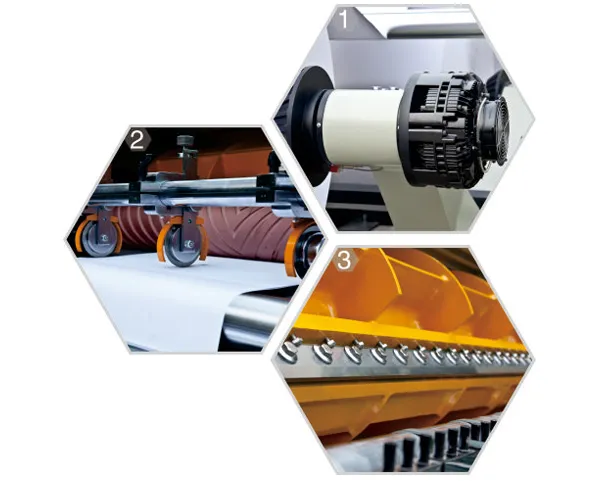

Paper feeding section:

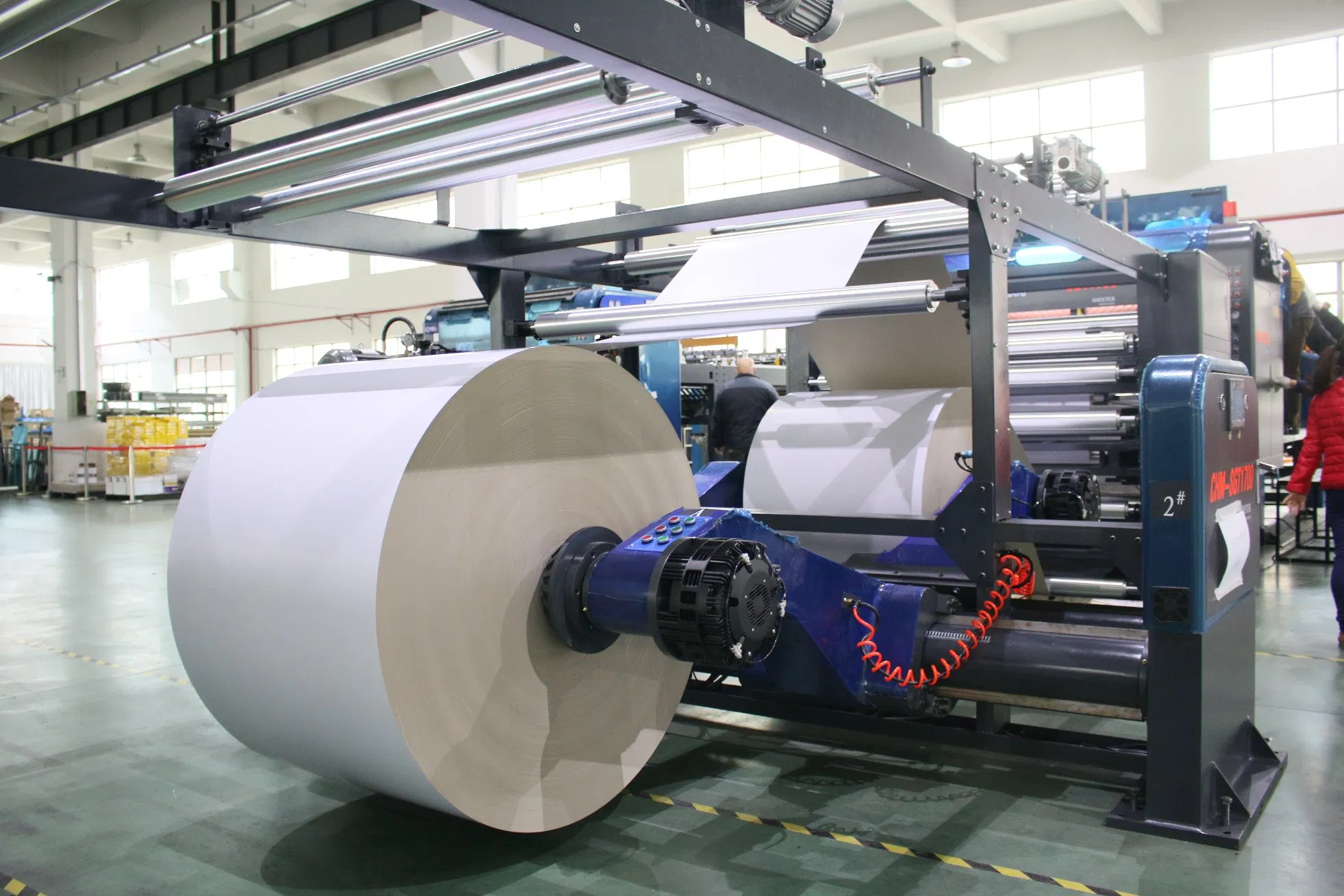

1. Double limbs oil pressure shaftless paper rack
2. Auto tension control system
3. Auto paper edge guiding system

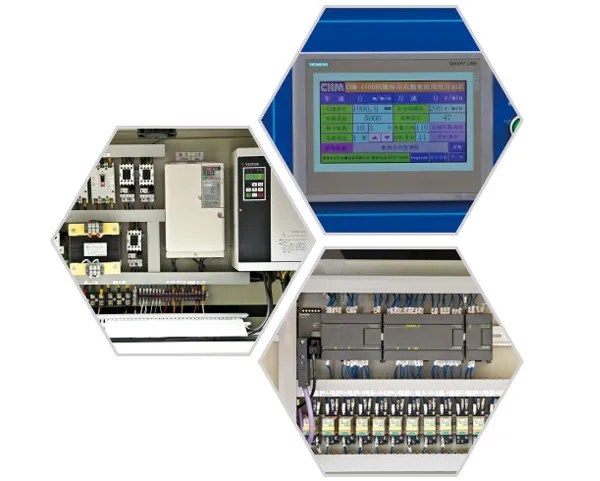

Electric control section:
1. PLC control system
2. AC servo driving motor
3. High precision encoder
4. High precision cutting.
5. Long endurance

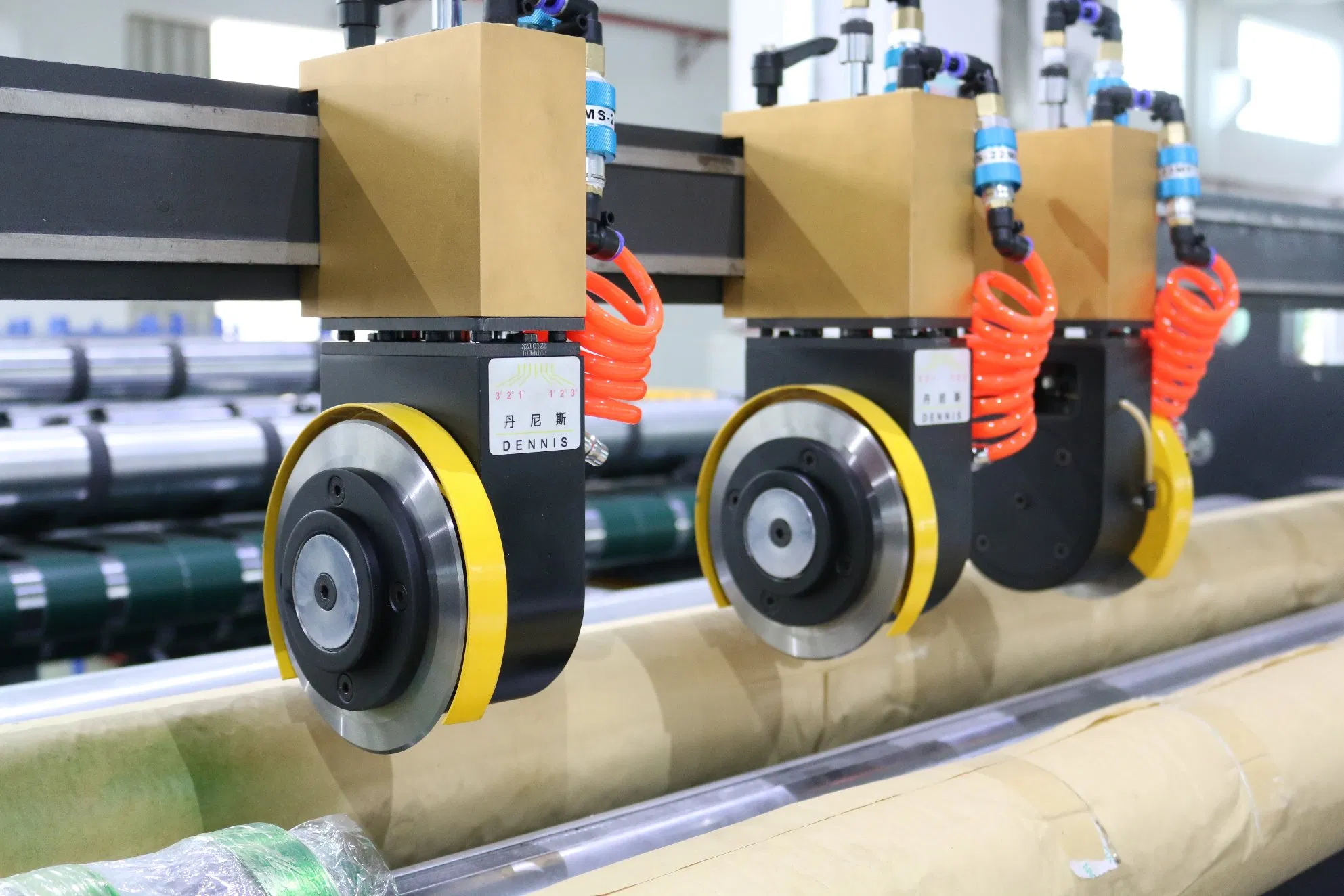

Slitting knife:
1. Three sets of slitting knife
2. Used for trimming and middle slitting
Paper delivering section
1. The number of overlapping sheets can be adjusted by this section.
2. The single sheet outlet can be adjusted.

If you are interested please send quick enquiry for more information about machine.
