Product Description

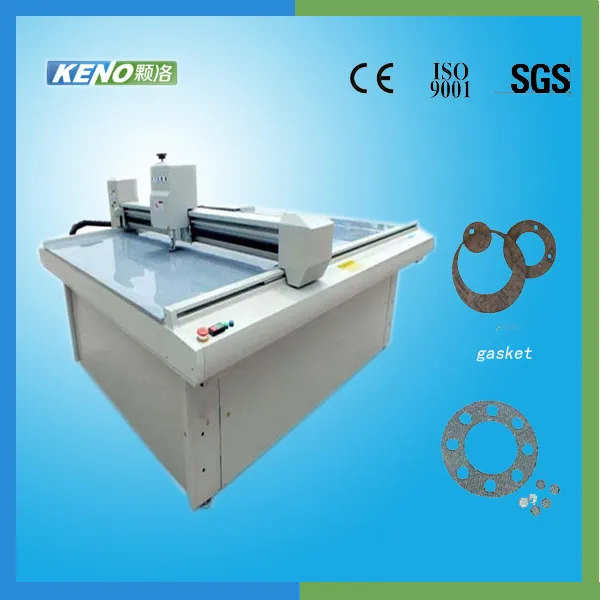

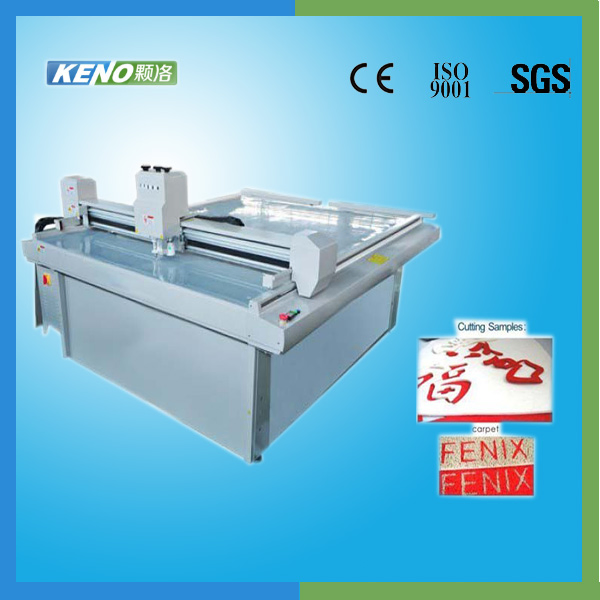

Carton Box Sample Cutting Plotter (KENO-ZX1310)

Model	KENO-ZX3520, KENO-ZX3018, KENO-ZX3016, KENO-ZX2516, KENO-ZX1713, KENO-ZX1310
Feature	1)It can cut many different materials. Such as card paper, plastic board, compound paper. 2)Folding functionit can press an accurate folding line on card paper and offset board. 3)Half cutting and dotted lineit can cut a side of paper and draw dotted and folding line according to the customer's needs.
Feature	4)Location it can accurately locate and cut the printed paper box. 5)Drawing function, it can draw an accurate figure on a paper and a film.
If you need more information about the feature of this equipment, please contact us without any hesitation. Thanks !
Character	1)Model: KENO-ZX3520, KENO-ZX3018, KENO-ZX3016, KENO-ZX2516, KENO-ZX1713, KENO-ZX1310 2)Max speed: 1000mm/s 3)Min. Cut Diameter: 6mm 4)Input area: 32MB 5)Max. Cutting thickness: 15mm 6)Precision: ≤ 0.1mm 7)Vacuum: 5.5KW 8)Control: Servo/Step 9)Data form: HPGL 10)Voltage: 220V/50Hz 11)Data port: ISA port 12)Speed: 10MB/S 13)Dimension(mm): 3850X2380X1150mm, 3350X2180X1150mm, 3350X1890X1150mm, 2850X1860X1150mm, 2050X1650X1150mm, 1950X1350X1150mm 14)Effective cutting area(mm): 3500X2000mm, 3000X1800mm, 3000X1600mm, 2500X1600mm, 1700X1300mm, 1300X1000mm
Contact Information	Shanghai KENO Industrial Co.,Ltd 24 Hours Consulting Mobile Number:

Shanghai Keno Industrial Co., Ltd. is an integrated corporation of science research, design, manufacture and sale. We have manufactured all kinds of machinery and materials for many years, such as filling machinery, computerized cutting machinery, labeling machinery, pallet wrapping machinery, printing machine, heat shrinking wrapping machinery, carton sealer, strapping machinery, metal detector, check weigher, PE stretch film, BOPP tape, PET strap and other related equipment.
