1300mm Width Material Paper Cutting and Cutter Machine
1. INTRODUCTIONSHENDA SQZ-130CT KD equip with LED display, microcontroller programming, 120 line encoder positioning accuracy. Operating system with shortcut keys, easy to learn. ABB electrical control components, double rail slot working platform. Quick pressure paper hydraulic system, worm cutting......
Send Inquiry
Product Description
1. INTRODUCTION

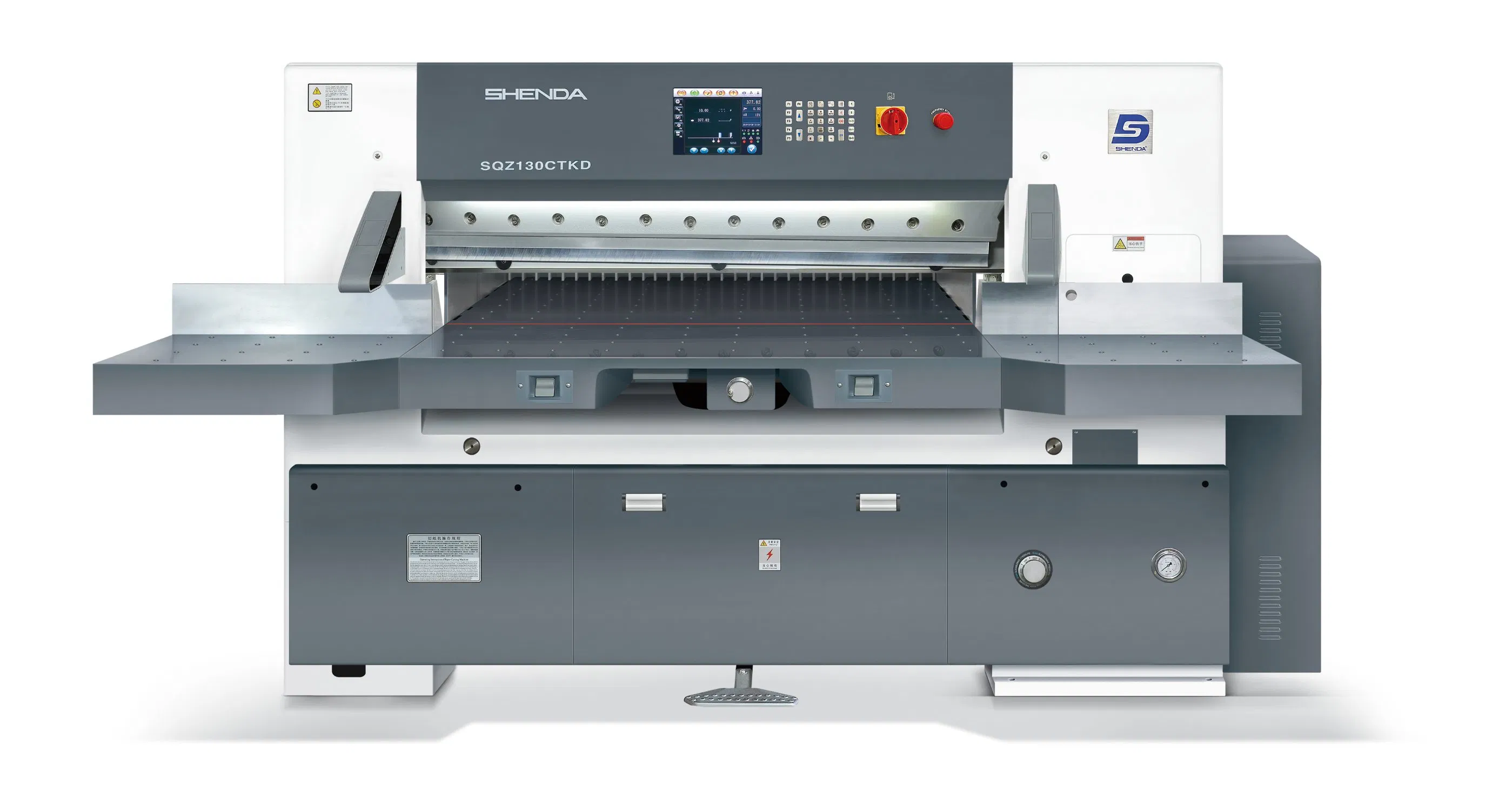

SHENDA SQZ-130CT KD equip with LED display, microcontroller programming, 120 line encoder positioning accuracy. Operating system with shortcut keys, easy to learn. ABB electrical control components, double rail slot working platform. Quick pressure paper hydraulic system, worm cutting structure.
2.MAIN SPECIFICATION
| MODEL | SQZ-130CT KD |
| Cutting width(mm) | 1300 |
| Max.cutting height(mm) (Without auxiliary panel ) | 130 |
| Max.cutting length(mm) | 1300 |
| Main motor power(kw) | 4 |
| Net weight(kg) | 3700 |
| Width with sideway(mm) | 2800 |
| Without sideway(mm) | 2450 |
| Machine lenght | 2580 |
| Machine height | 1560 |
| Front table length(mm) | 735 |
| Table height(mm) | 900 |
| Clamp pressure min(dan/bs) | 150 |
| Max(dan/bs) | 4500 |
| Knife thickness(mm) | 12.7 |
| Grinding reserve(mm) | 30 |
| Without false clamp(mm) | 25 |
| With false clamp(mm) | 90 |
| Cutting speed(mm) | 45 |
| Voltage(three-phase)(v) | 361-339 |
| Packing size(L*W*H)(mm) | 2750*1400*1910 |

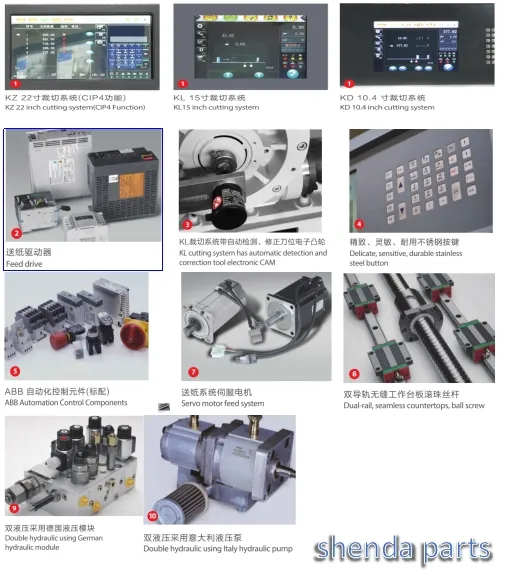

3.THE SYSTEM OF COMPUTER:
(1)The displaying panel use 10.4 inch touch screen, you can adjust the color by yourself.
(2)They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.
(3)The multi-language operating interface, such as Chinese,English,Spanish...
(4)It has luminous shortcut key so as to ensure the high stability.
4.THE APPARATUS CONTROLLED SYSTEM:
(1)Adopts Switzerland ABB, German MULLER, Japan OMRON.
(2) Air pump is from TAIWAN GELING
.
5.THE PAPER PUSHER CONTROLLED SYSTEM:
(1)Roller ball lead screw: TAIWAN TBI
(2) Double rail guide way: TAIWAN TBI
6.THE HYDRAULIC SYSTEM:
(1) Adjustable-pressure single-hydraulic system(paper pressing by the hydraumatic),
(2)combined valve from German, ISO approved hydraulic units.
7.THE SAFETY PROTECTED SYSTEM:
(1)Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
(2) Blade-Replacement Device with safety and convenience.
(3) Air cushion and chromeplating platform of photoelectricity protective device.
(4) Underlay cutter frame.
(5) The closed paper pusher frame.
(6) Machine lock, safety bolting, the safety button and light grid.
(7)The driving cutting part uses worm.
8.THE ACCESSORY WITH MACHINE:
(1) Tool box: 1 set
(2) Manual book
(3) Operational CD
(4) Guarantee sheet(details in contract).
9.THE DELIVERY TIME:
About 30 to 40 days after receipt of the deposit.(If we have no in stock)

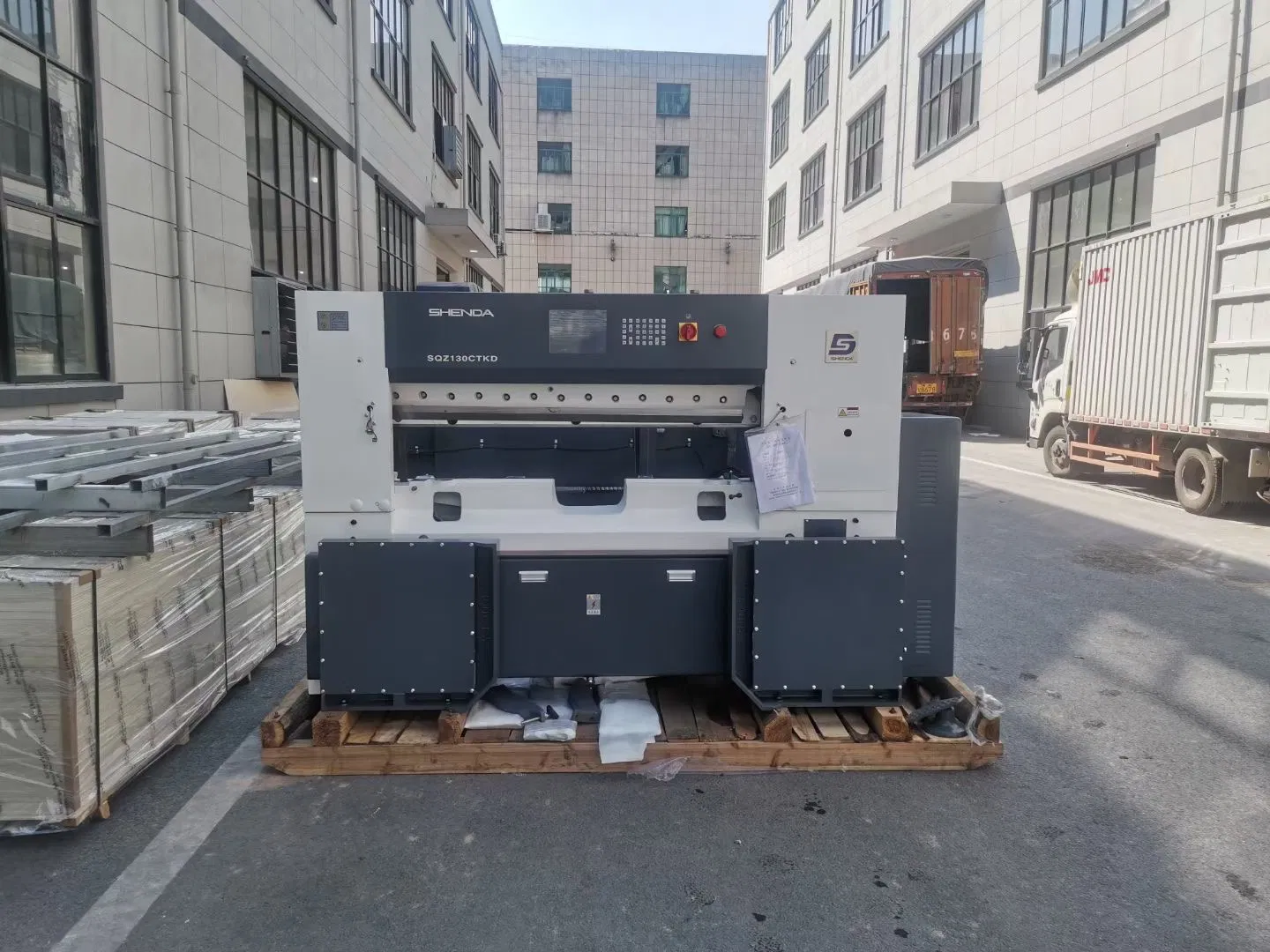

10.MACHINE TRANSPORT AND PACKING
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
