Semi/Full Automatic Flute Laminator Machine for Corrugated Cardboard Sheet Paper (STM-1300/ 1450 /1600)
Automatic Flute Lamination MachineFeatures:1.STM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.2.The machine uses speed variators , PLC......
Send Inquiry
Product Description

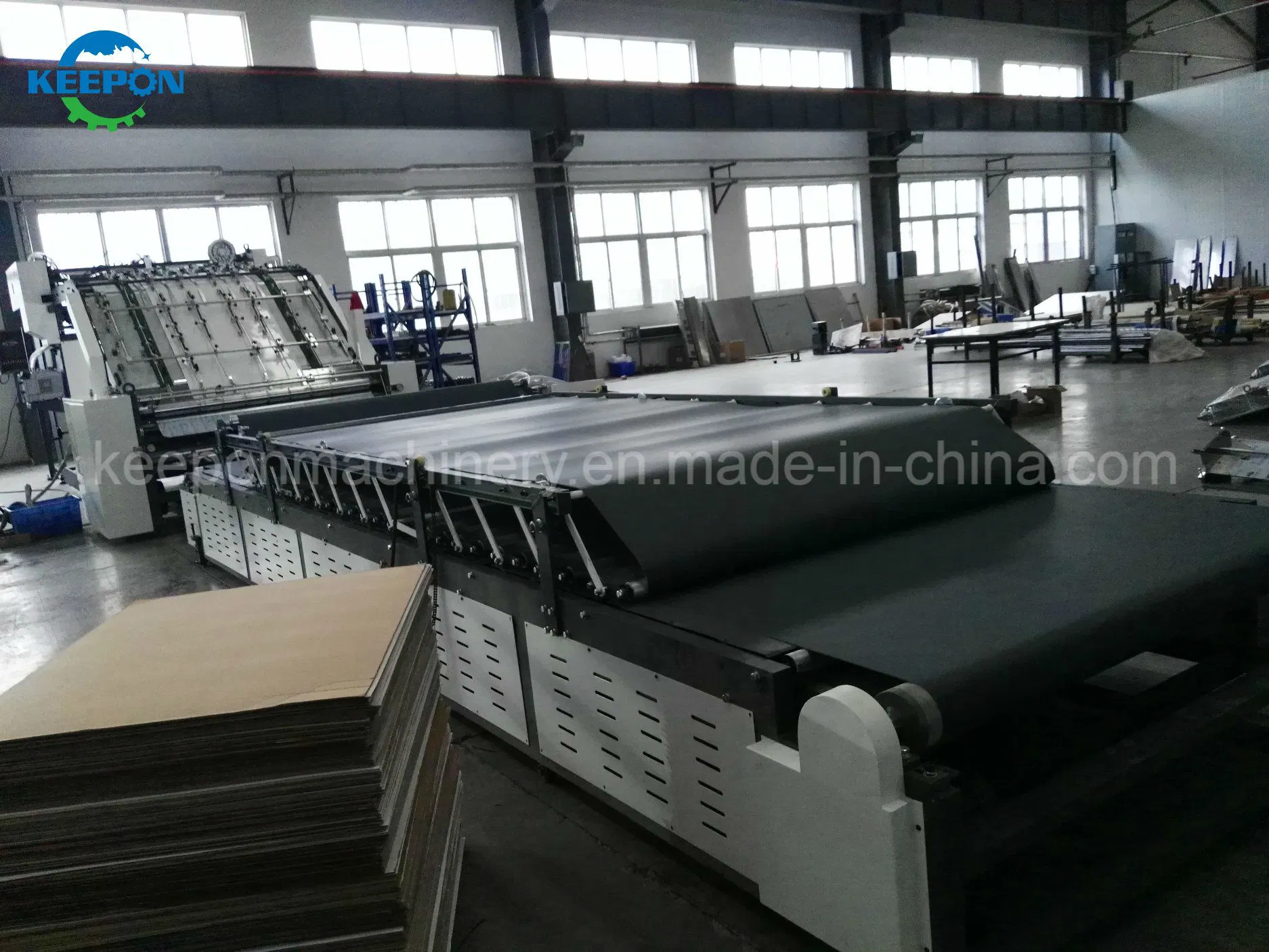

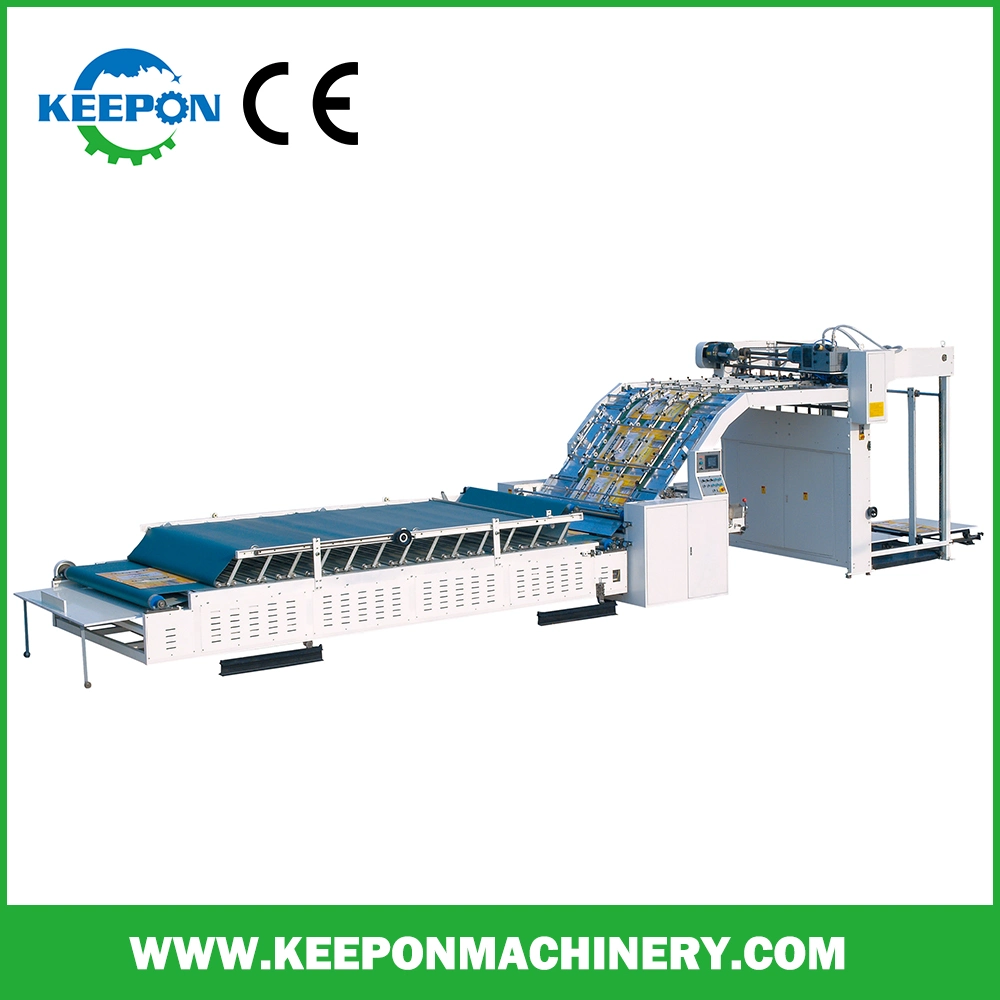

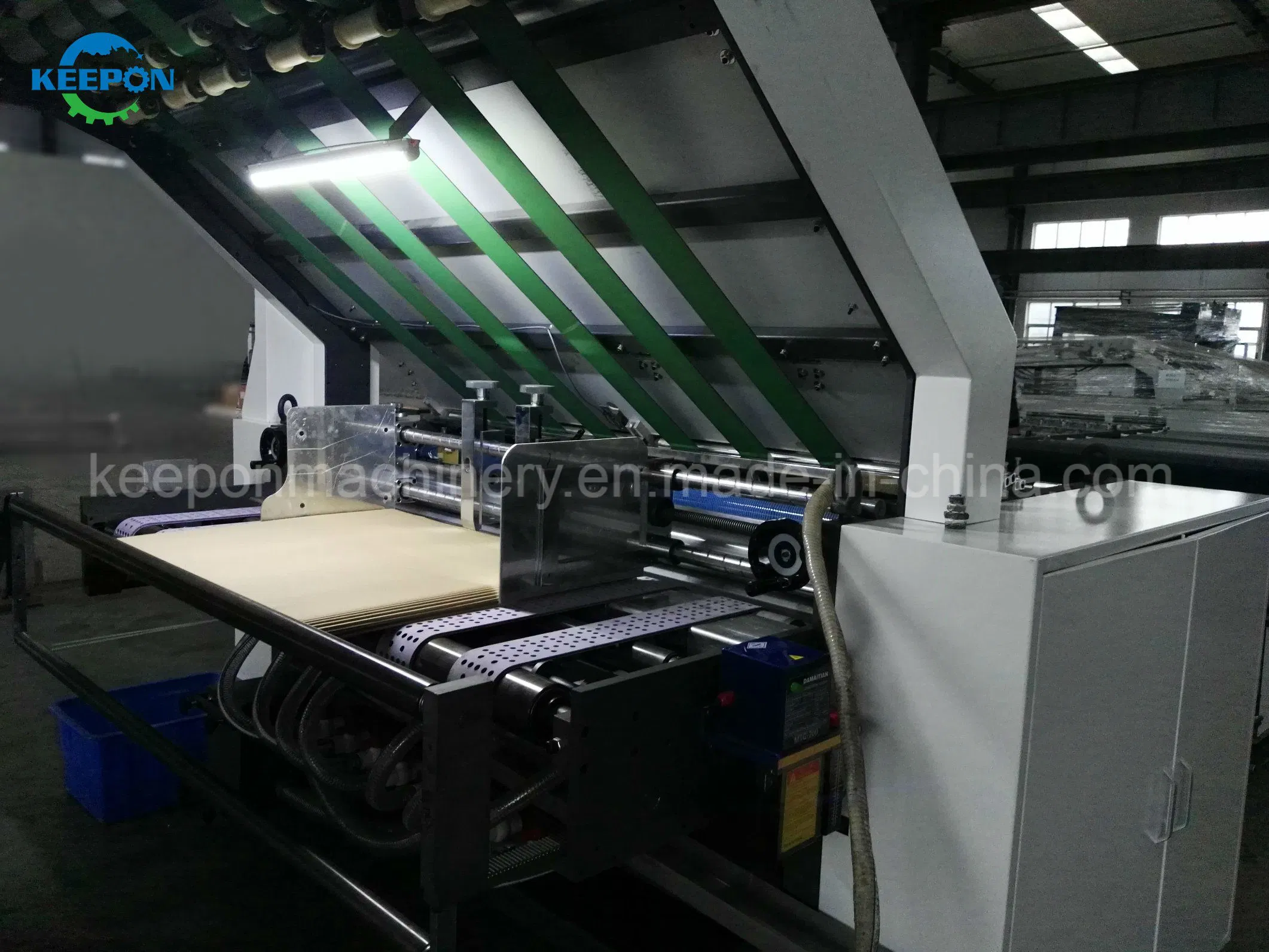

Automatic Flute Lamination Machine
Features:
1.STM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.
2.The machine uses speed variators , PLC central control, simulation to digit program system.
3.The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
4.Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.
5.The machine adopts automatic glue supply and recyclable glue circulating system.
6.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world wide available brand or well-known Chinese brand.
7.All material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.
8.The bottom sheet for this machine can be A, B, C, E, F flute, 3 or 5 ply corrugated board to sheet lamination. The range for top paper can be 150-450 GSM. It has top paper advance or alignment function.
Technical Parameter:
Features:
1.STM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.
2.The machine uses speed variators , PLC central control, simulation to digit program system.
3.The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
4.Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.
5.The machine adopts automatic glue supply and recyclable glue circulating system.
6.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world wide available brand or well-known Chinese brand.
7.All material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.
8.The bottom sheet for this machine can be A, B, C, E, F flute, 3 or 5 ply corrugated board to sheet lamination. The range for top paper can be 150-450 GSM. It has top paper advance or alignment function.
Technical Parameter:
| Model | STM-1300 | STM-1450 | STM-1600 |
| Maximum size | 1300×1300mm | 1450×1300mm | 1650×1600mm |
| Minimum size | 400×400mm | 400×400mm | 400×400mm |
| Speed | 153m/min | 153m/min | 153m/min |
| Total power | 16.25kw | 16.25kw | 18.1kw |
| Machine size | 14000×2300×2700mm | 14300×2450×2700mm | 14800×2550×2700mm |

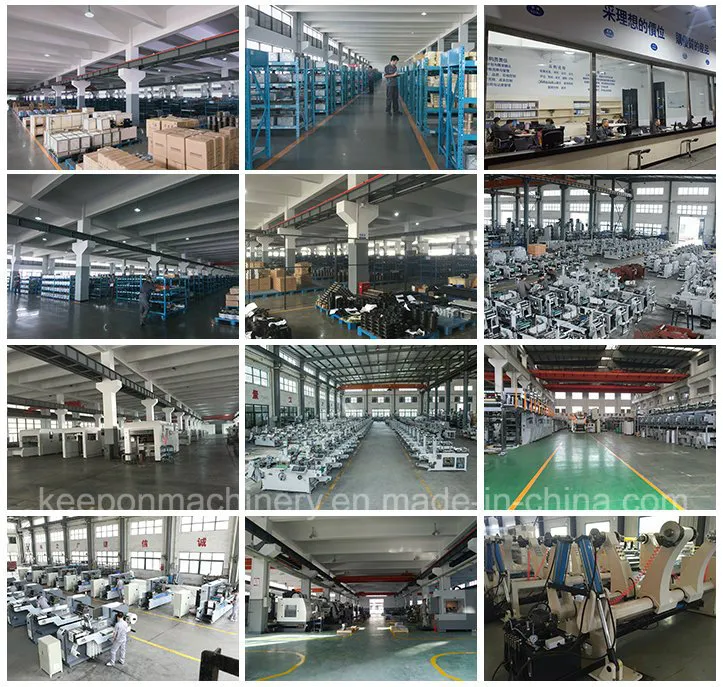

Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: 30-50 days usually
4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.
