Professional Manufacturer Lefu Lf1700-D4 Warm Laminator Cold Laminator Roll Laminator

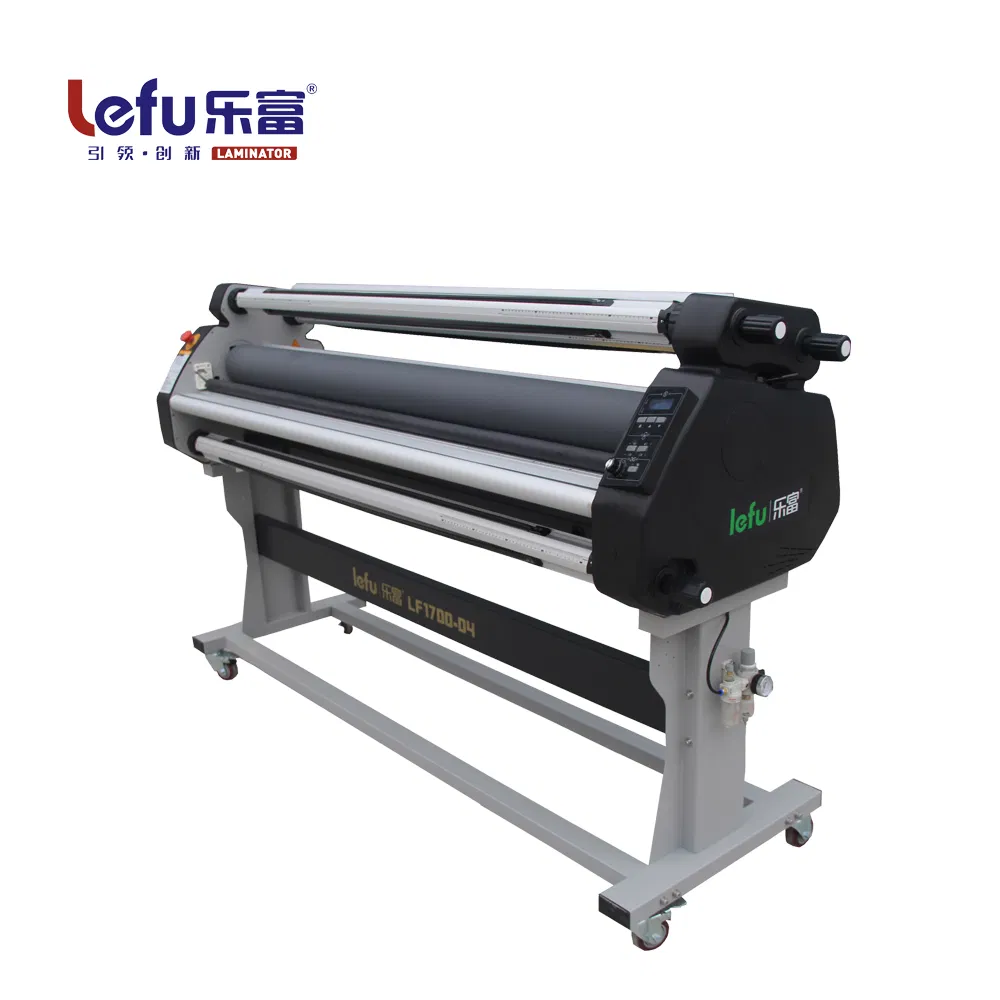

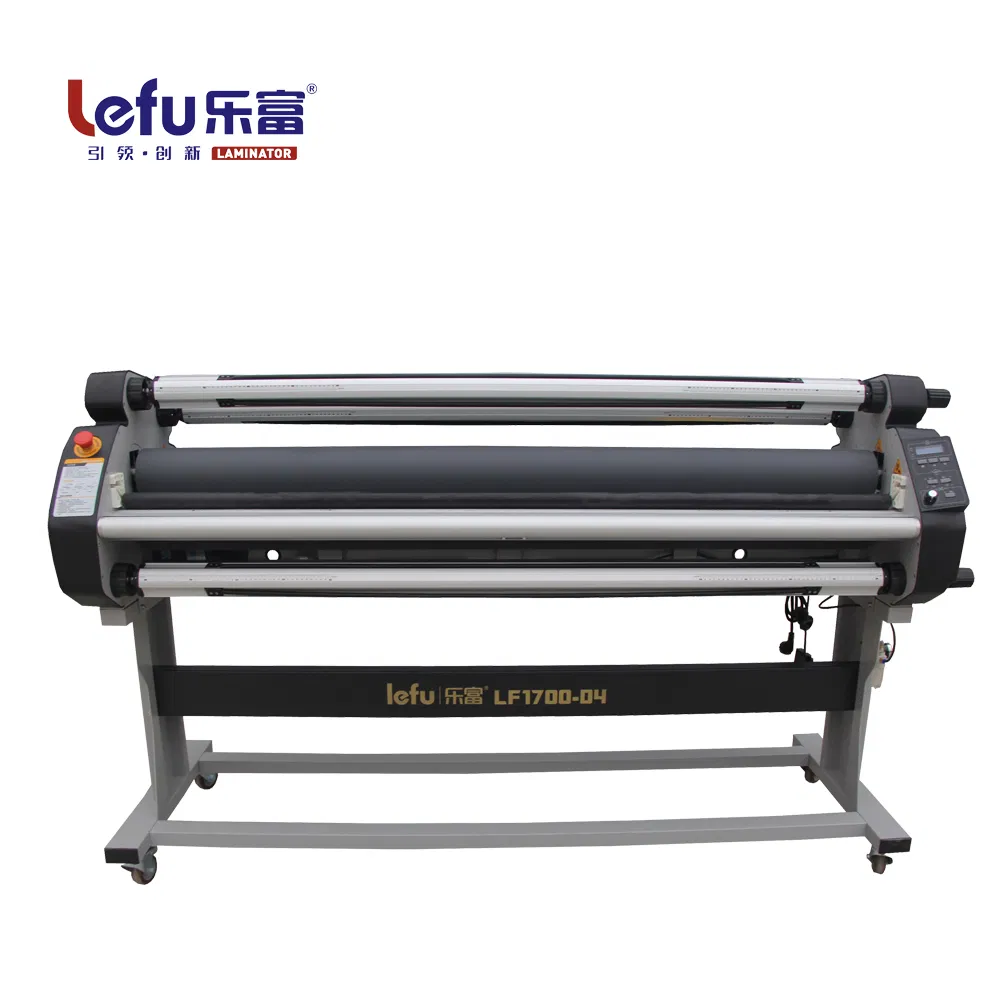

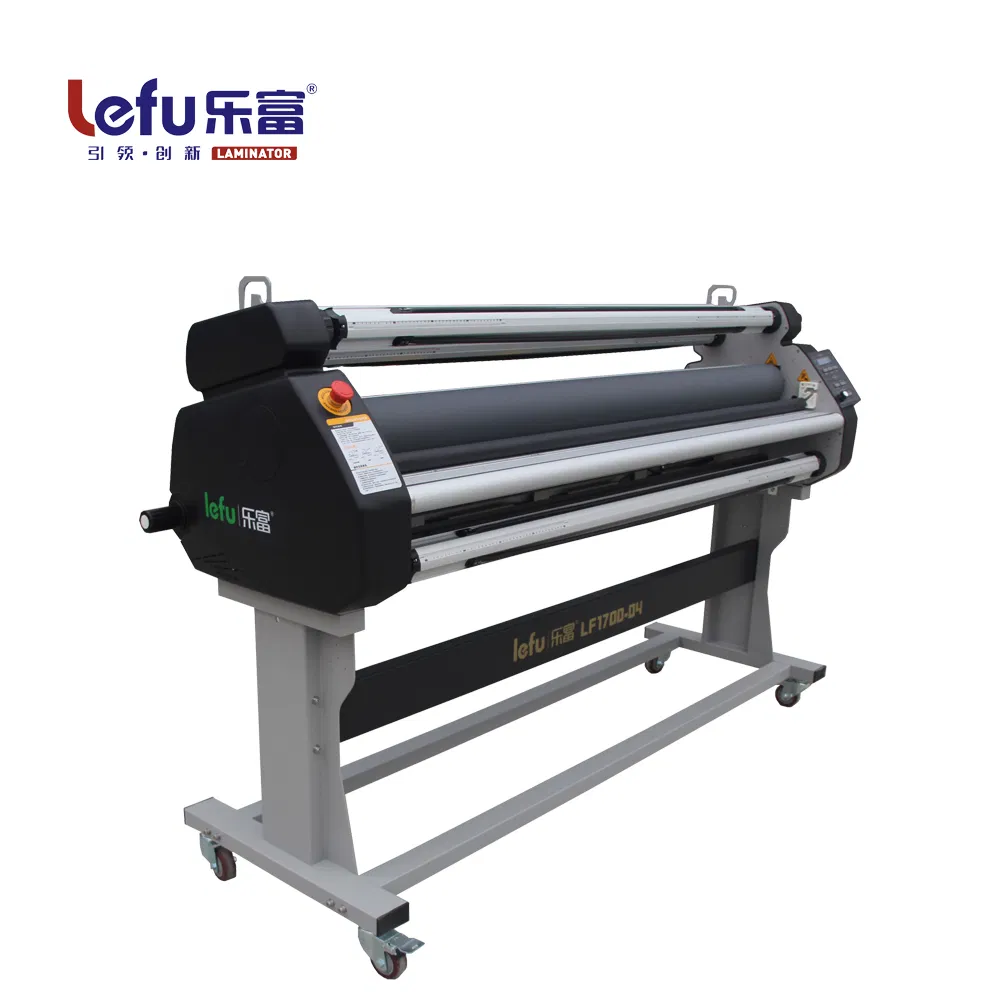

Lefu LF1700-D4 Warm and Cold LaminatorLefu LF1700-D4 Warm and Cold Laminator is new product of Lefu Laminator. It uses air pressure to adjust vertical cutter up and down. There are 3 vertical cutters; Max Lamination Width: 1630mm, Max lamination Speed: 18M/Min, Max Lamination Temp: 120C/242F. Techni......
Send Inquiry
Product Description
Technical Parameters
Parameter | LF1700-D4 |
Max Lamination Width | 1630mm/64'' |
Cutters | ≥3 Sets |
Laminating Type | Roll-to-Roll |
Heating Roller | Top |
Max Laminating Speed | 12m/Min |
Max Lamination Thickness | 28mm/1.1'' |
Lamination Type | Hot and Cold |
Max Temp | 60°C /140°F (120°C/242°F Optional) |
Roller | Silicon |
Diameter of Roller | 130mm |
Pressure/Height Adjust | Automatic (Pneumatic Pressure) |
Hand Protection Device | Safety Laser Sensor |
Anti-Static | Yes |
Motor | 90W |
Certificate | CE, RCM, ROHS |
Heating | Infrared |
Preheating Time | 10-15 min |
Voltage | 110V/220V 50/60Hz |
Power Input | 1400Kw/h |
G.W. | 190KGS |

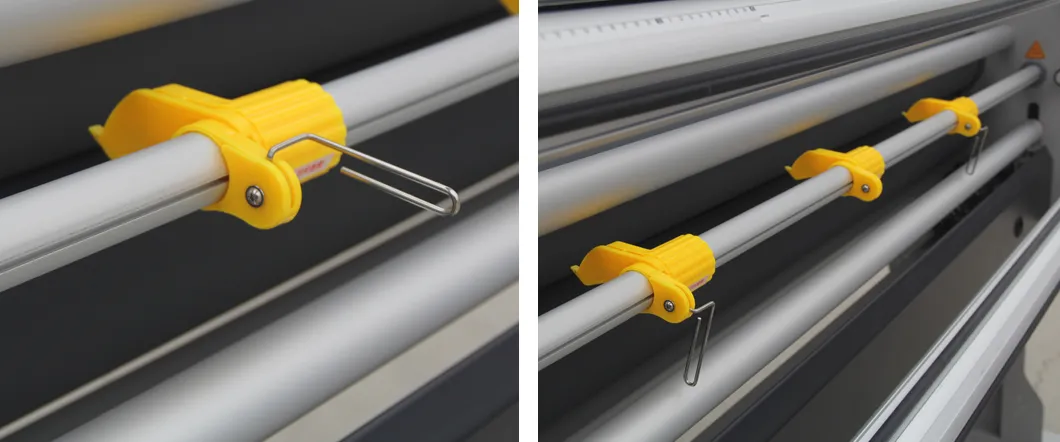

1. Tungsten Steel Cutters
There are 3 cutters at back of laminator, customer can choose more cutters as requirements. Machine can do vertical cutting during lamination. Trimming switch also can adjust cutters right and left.

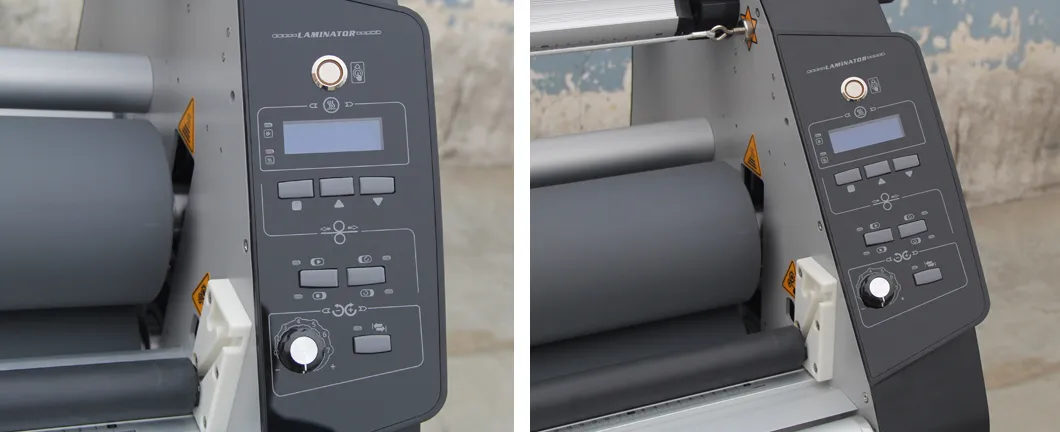

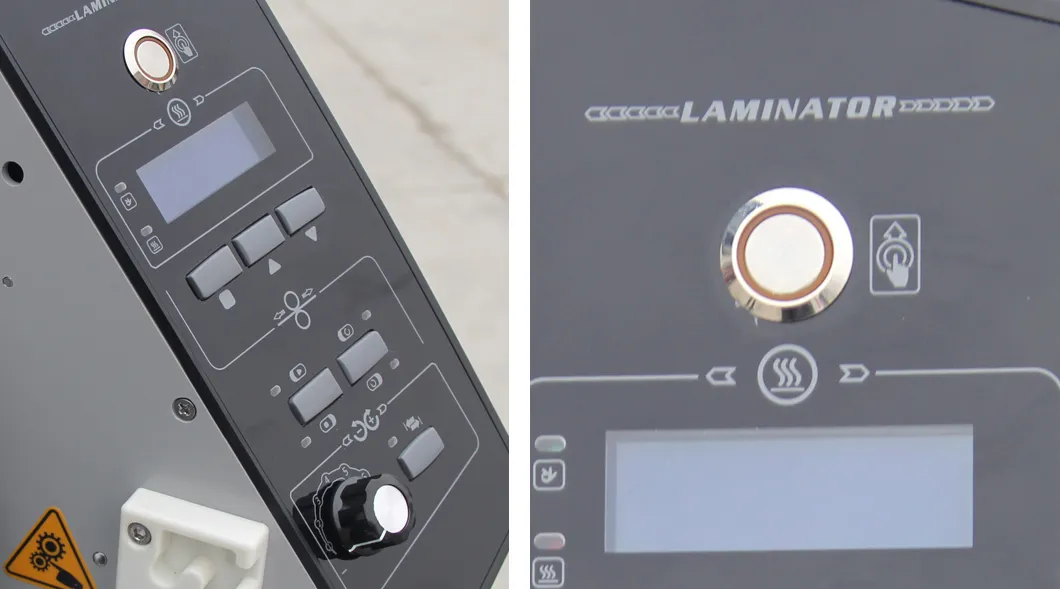

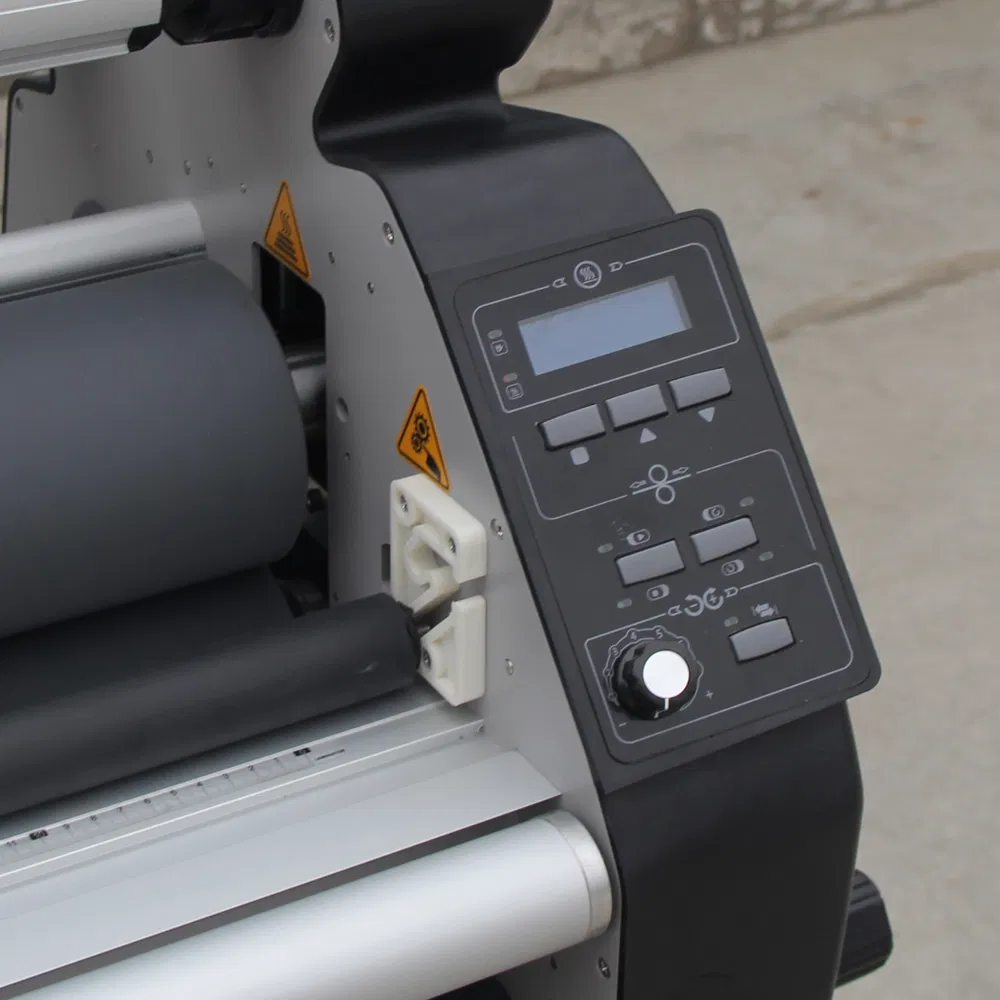

2. Intelligent Operation Panel
English-Chinese operation panel. Operators can adjust lamination speed and avoid materials go right or left. Keep lamination quality. And foot switch for hands free operation.

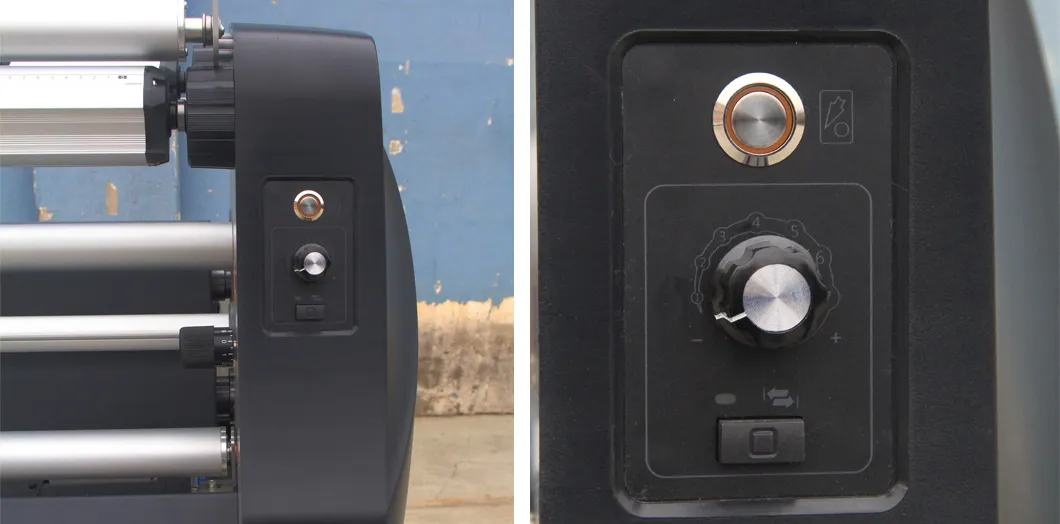

3.Rear Speed Control Switch
Speed control switch and roller up & down switch at back of laminator can operate machine easily when operator at back of laminator.

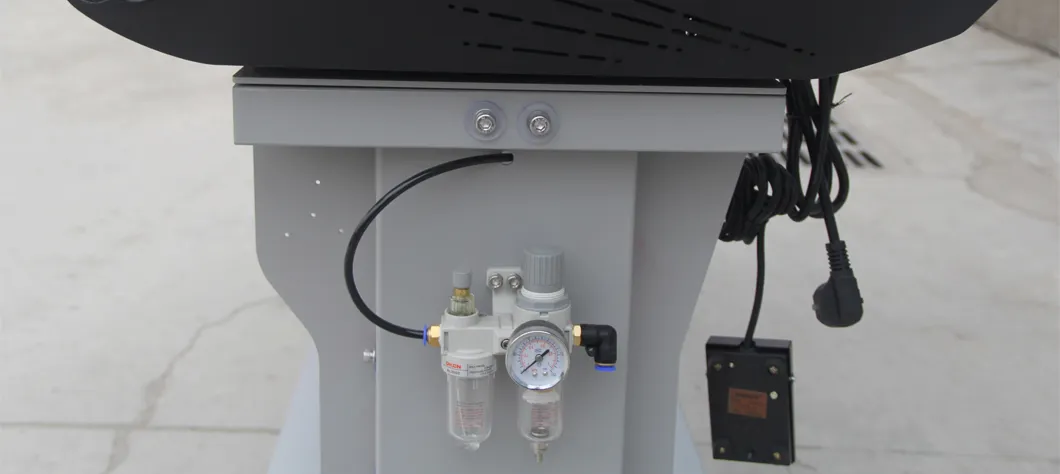

4.Electron Magnetic Valve
Laminator uses electron magnetic valve to control the roller up and down. Electron magnetic valve has stable work condition and long time service life.
5. Footpad Switch
Laminator footpad switch is easily for single operator to do laminate It also has step lamination and reverse lamination.

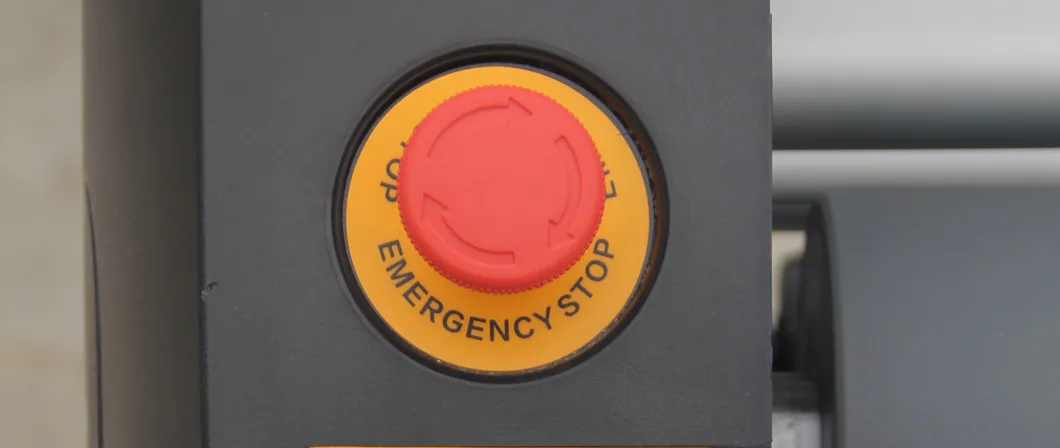

6.Hand Safety Sensor
This sensor can protect operator's hand during lamination.
Remote Assistance:
Free, customers can reserve from sales department in advanced.
Warranty:
12 Months warranty time for our printers. In the warranty time, if the parts are broken without man-made sabotage. You can send back the broken spare parts to repair or replace. Beyond warranty time, for broken parts just need cost price.OEM Service
We can send our technician to your site to provide technology supporting and training your opeartors. It is also acceptable for you sending your opeartors to our factory for traning.
COMPANY INFORMATION
Zhengzhou Mefu CNC Equipment Co., Ltd is a leading Company of Hot and Cold laminator in China. Focused on making and designing laminating machines more than 8 years. Mefu has become an innovative power in advertising industry.
CUSTOMER VISITING

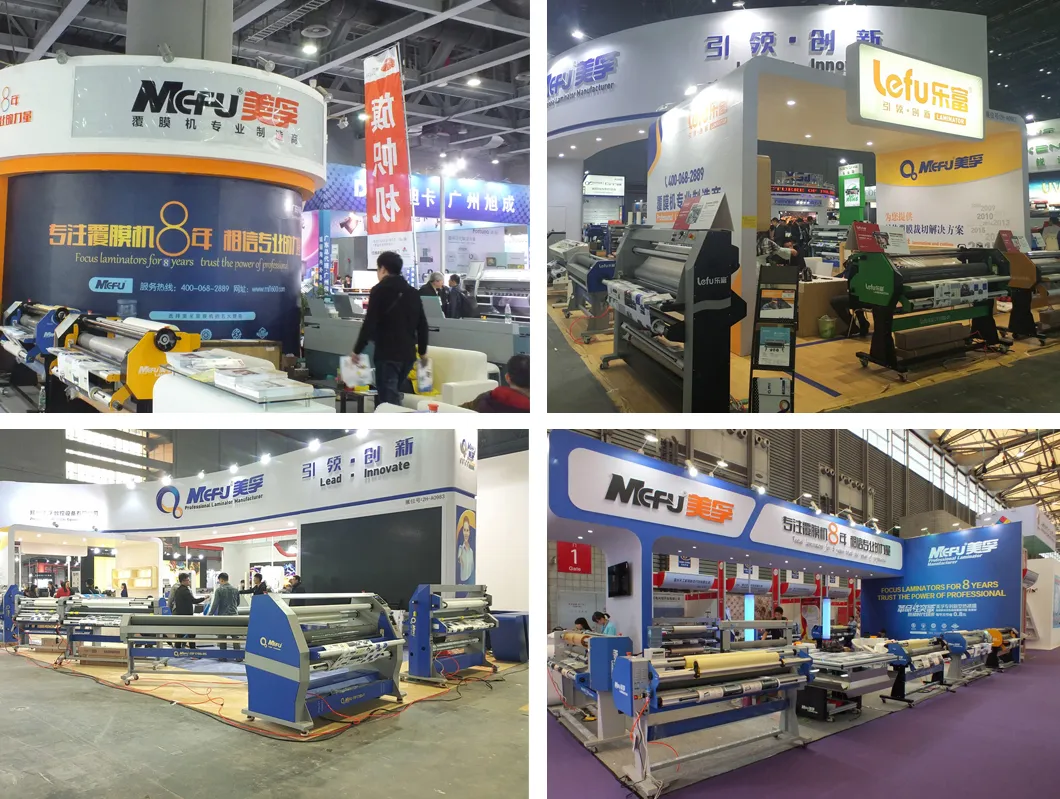

Laminators made under the Mefu brand name "Lefu" and "Mefu" is known throughout industry as durable, responsible, effective solutions to lamination problems that add appeal and long life to many different kinds of printed output such as menus, signs, posters, wall hangings, maps, charts, brochures, photos, displays and other commercial materials.EXIHIBITION

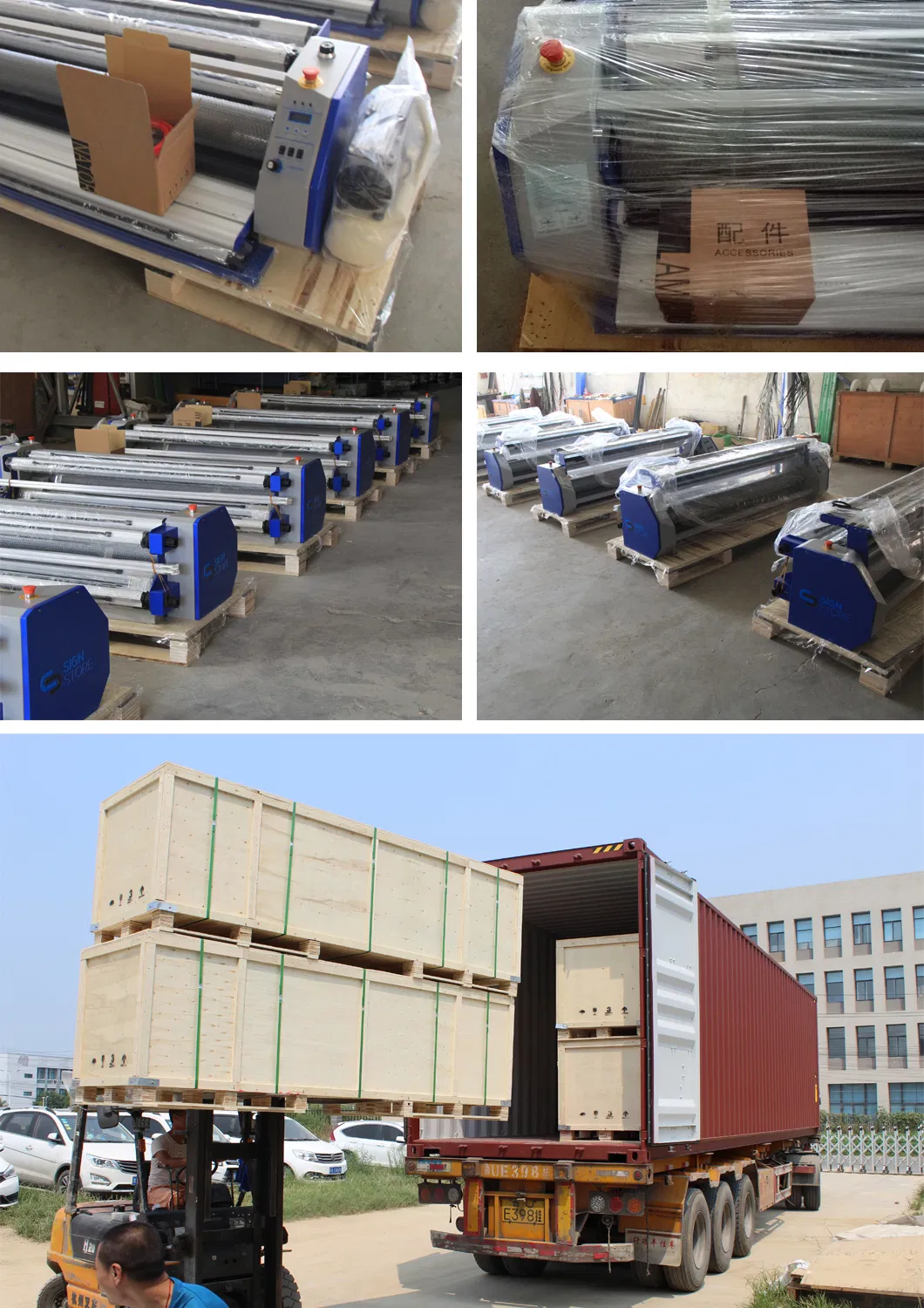

PACKING & SHIPPING
