High Speed Automatic Flute Paper Laminating Machine / Corrugated Cardboard Paper Litho Lamination Machine (AFL-1300/ 1450 /1600)
Automatic Flute Laminating MachineVideo: https://youtu.be/_48nWX882wwFeatures:1.AFL Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which makes this series of machine fits for a larger range o......
Send Inquiry
Product Description

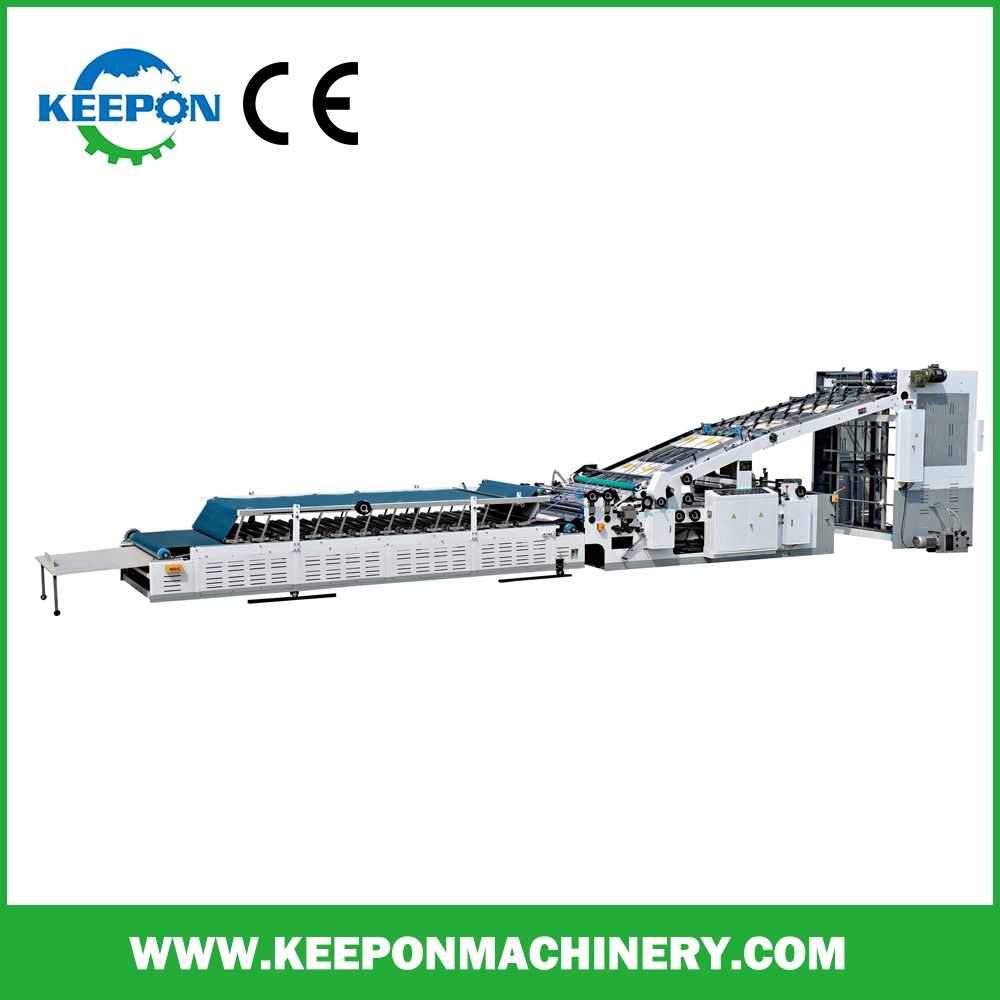

Automatic Flute Laminating Machine
Video: https://youtu.be/_48nWX882ww
Features:
1.AFL Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which makes this series of machine fits for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
2.The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3.Balance-tested rollers, tight assembling technique, plus tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4.The machine adopts automatic glue supply,recyclable glue circulating system and auto-central oil supply system.
5.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6.All material bought from outside are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
7.The bottom sheet for this machine can be A, B, C, E, F flute,3 or 5 ply corrugated sheet as well as cardboard not less than 250gsm. The range for top paper can be 200-800 GSM sheet or 3 ply laminated board. It has top paper advance or alignment function.
Technical Parameter:
Video: https://youtu.be/_48nWX882ww
Features:
1.AFL Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which makes this series of machine fits for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
2.The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3.Balance-tested rollers, tight assembling technique, plus tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4.The machine adopts automatic glue supply,recyclable glue circulating system and auto-central oil supply system.
5.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6.All material bought from outside are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
7.The bottom sheet for this machine can be A, B, C, E, F flute,3 or 5 ply corrugated sheet as well as cardboard not less than 250gsm. The range for top paper can be 200-800 GSM sheet or 3 ply laminated board. It has top paper advance or alignment function.
Technical Parameter:
| Model | AFL-1300 | AFL-1450 | AFL-1600 |
| Maximum size | 1300×1100mm | 1450×1100mm | 1600×1400mm |
| Minimum size | 380×380mm | 380×380mm | 400×400mm |
| Laminate precision | ≤±1.5mm | ≤±1.5mm | ≤±1.5mm |
| Speed | 6000Sheets/h | 6000Sheets/h | 6000Sheets/h |
| Total power | 11.65kw | 11.65kw | 13kw |
| Length of machine | 14.8m | 14.8m | 15.57m |
| Total weight | 6.8T | 7.2T | 8.0T |

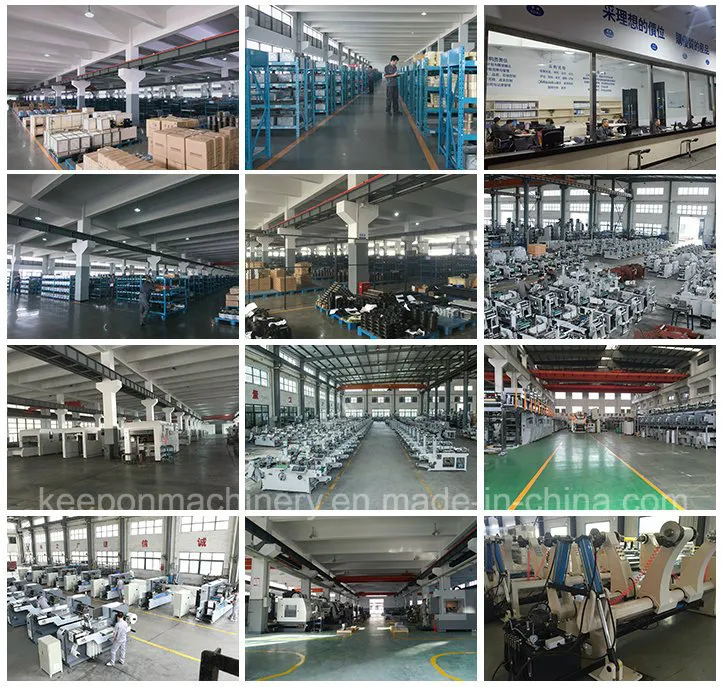

Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: 30-50 days usually
4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.
