Fully automatic Chain knife Vertical type Film Laminator [LZFM1080SJ]

LZFM1080  Chain knife type


LZFM1080  Chain knife type+ powder removal mechanism type

LZFM1300   Chain knife type

LZFM1300  Chain knife type+ powder removal mechanism type


Mian configuration(Chain knife type):
Pre-pile+feeder+sheet drawing+laminator+chain knife+rotary flying knife+stacker

Mian configuration(Chain knife type+ powder removal mechanism type):
Pre-pile+feeder+sheet drawing+powder removal mechanism+laminator+chain knife+rotary flying knife+stacker


Main performance characteristics of this series models

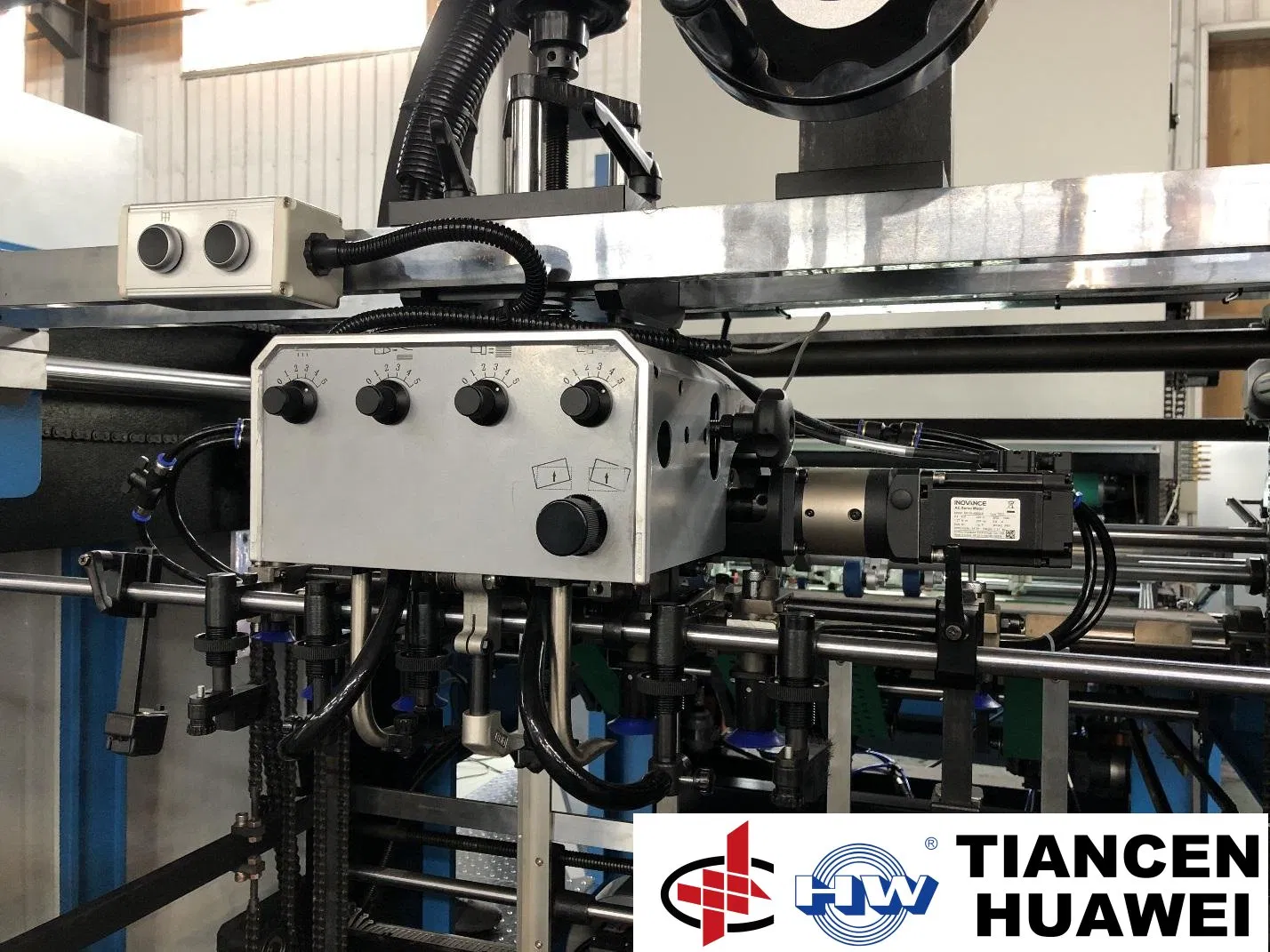

1. With four suction and four send feeder, high speed and high precision feeding is realized.Precise front and pull gauges combine servo technology to ensure paper straightness and overlap accuracy (overlap accuracy 2mm)Equipped with pre-pile paper mechanism to realize the non-stop feeding, reduce labor intensity and save downtime.Drying system adopts hot air circulation, Heat energy is recovered and reused to achieve energy saving purposes. Not only reduces the power consumption cost of the film laminating, but also improves the speed of film laminating.

The whole machine adopts the display screen centralized control and PLC information processing, which is safe and reliable and easy to operate.

1. The whole machine adopts the display screen centralized control and PLC information processing, which is safe and reliable and easy to operate.The mirror press roller is surface polished, and use the mold temperature machine heating, roll surface temperature error is small, temperature control precision. (880, 1300 series Use double Mold temperature machine Heating mode)

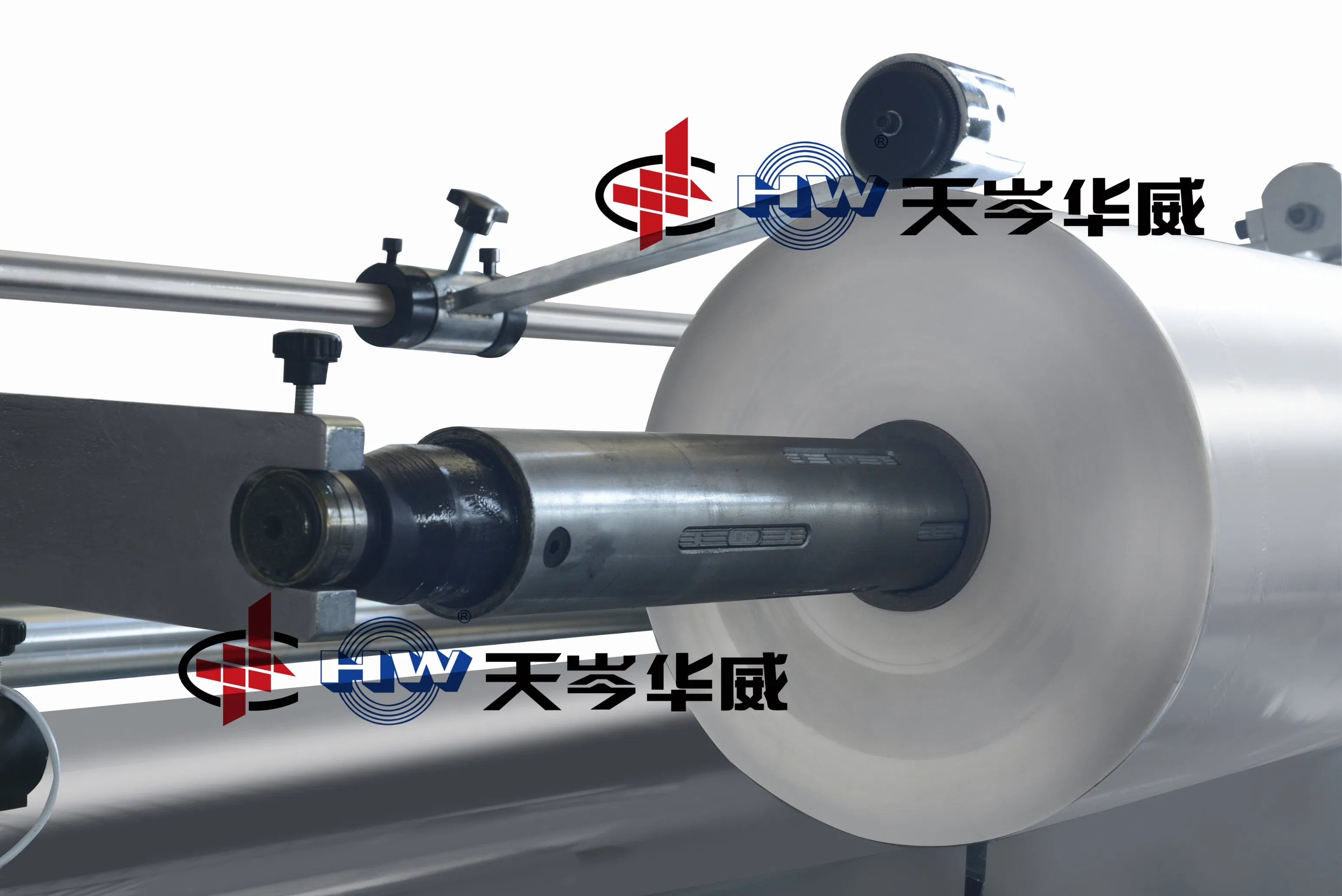

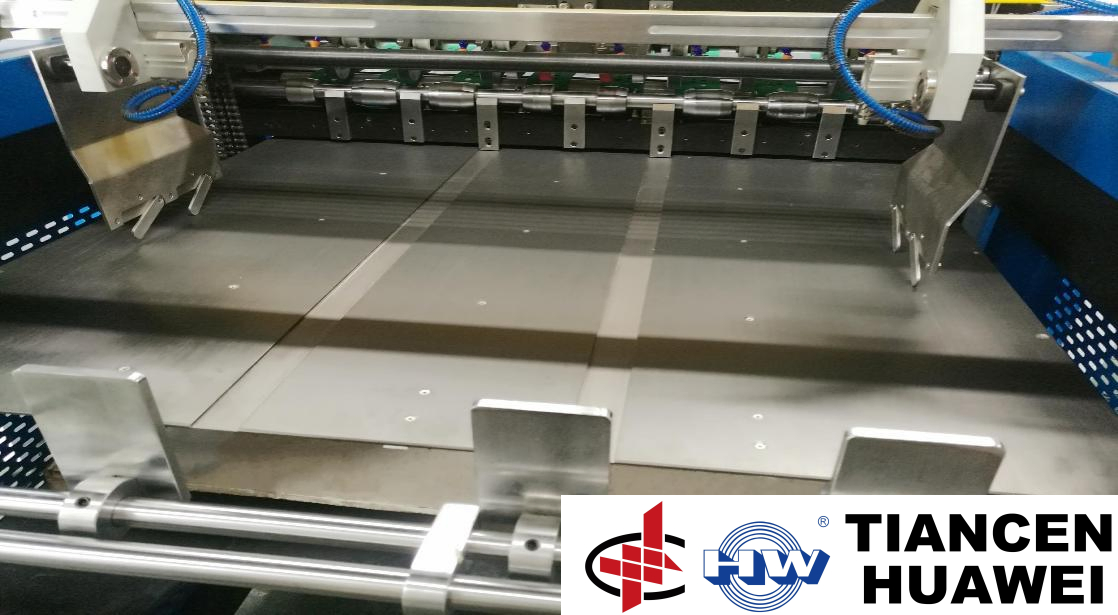

1. The film tension in the film laminating is controlled by magnetic powder clutch, when the machine is stopped, the film is automatically stretched to prevent the film from being slack and involved in the press roller.Equipped with thin paper flattening mechanism to prevent the product curl caused by thin paper laminating, which makes it difficult to deliver paper.The chain knife type products are equipped with chain knife mechanism (for PET film) and scissors type cutting mechanism, it is convenient for users to adopt different cutting methods according to different products.All models are equipped with thin paper wave pressing mechanism, so that the thin paper can be laminating quickly and delivery smoothly.All models are equipped with the German Beck air pump.The main key bearings, electrical components, are use internationally renowned brands, to ensure that the quality of Huawei products are not affected.
