Dry Laminator Machine for Window Bag
Technical Data: ModelGSGF-1100BLayers of complex2 LayersLaminating width1100mmLoading material's diameter600mmAdjustable range of laminating linear speed50-120m/minMax. adjustable temperature of dry oven80 ºCMax. adjustable temperature of heat beat70 ºC -90 ºCTension r......
Send Inquiry
Product Description
Technical Data:

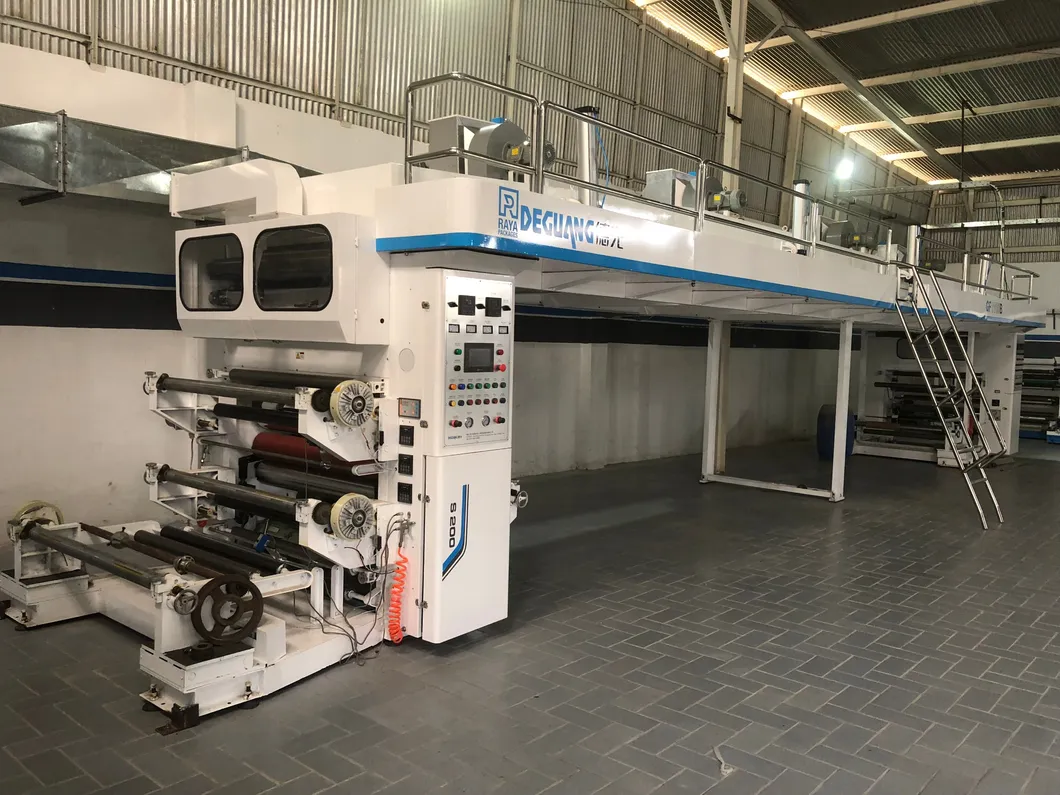

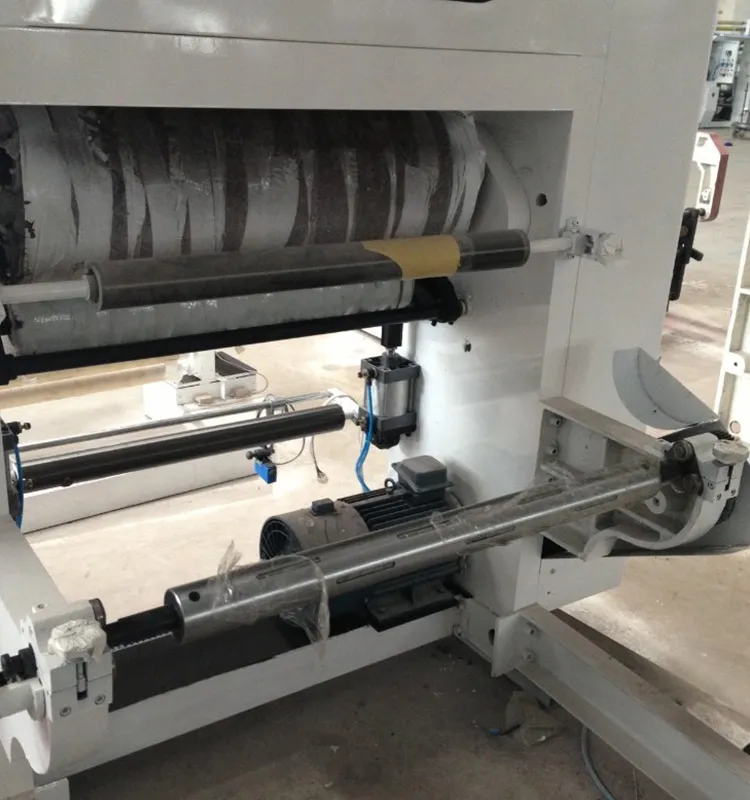

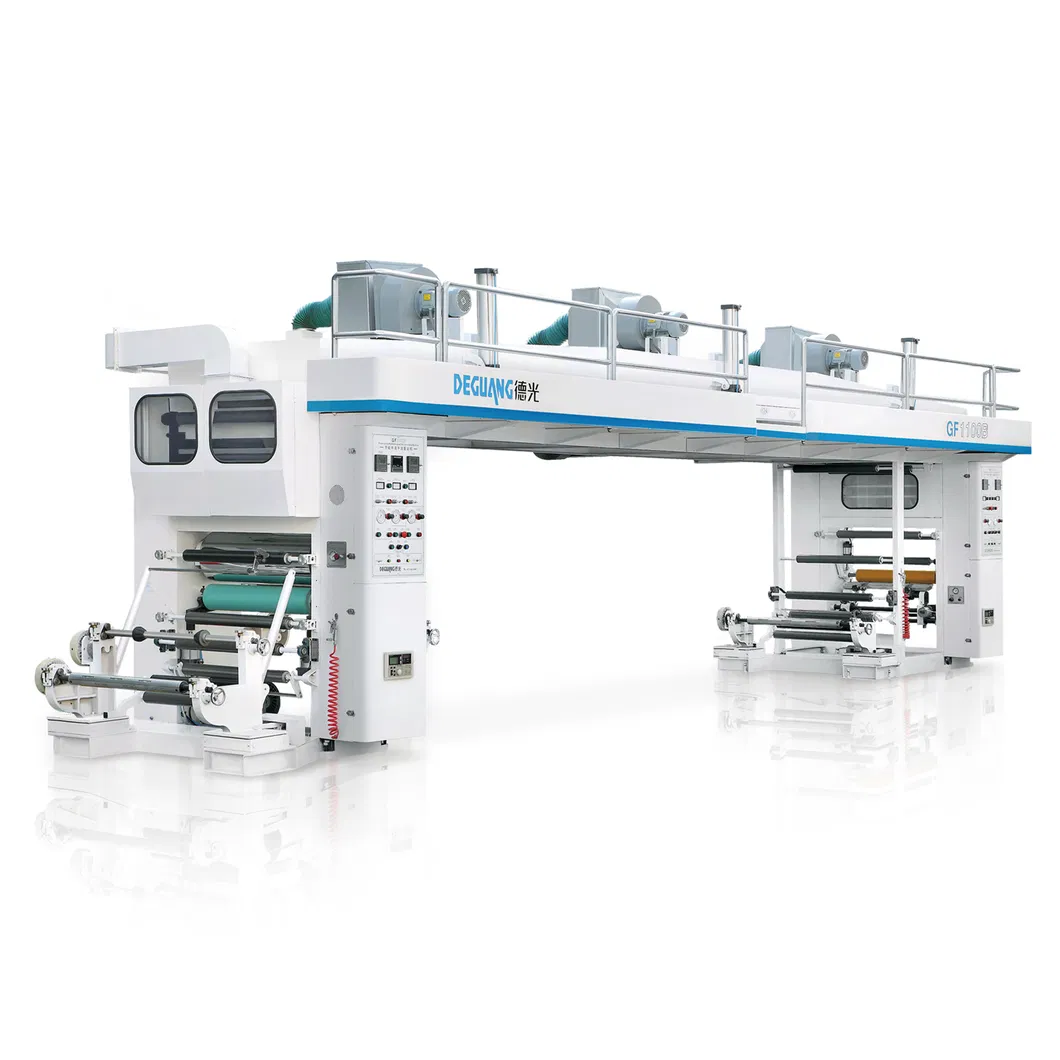

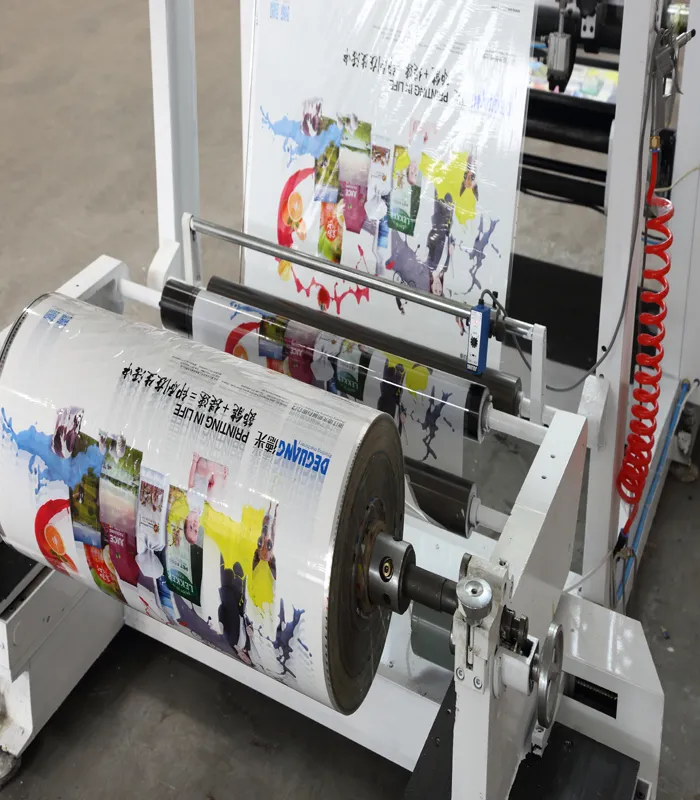

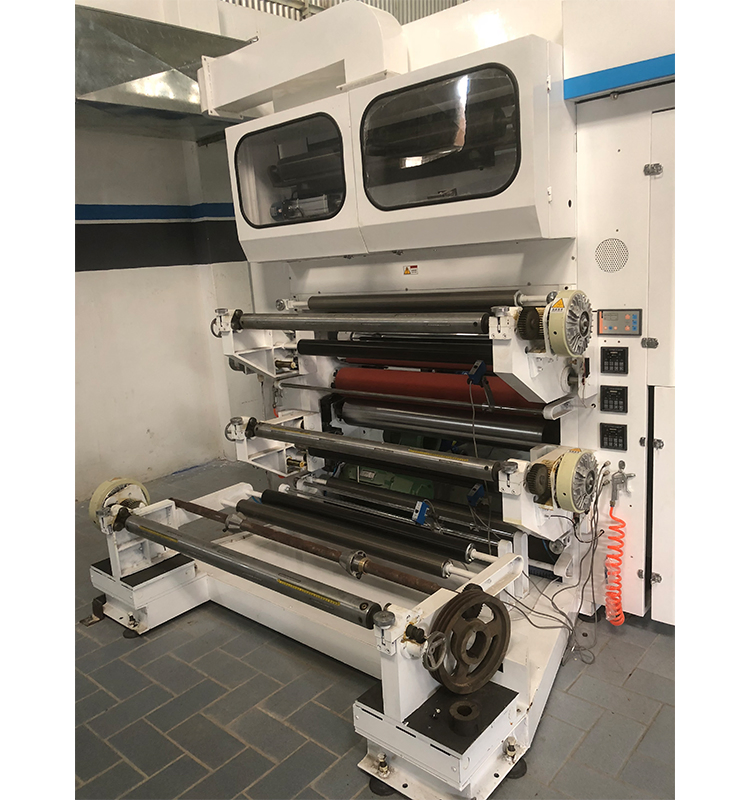

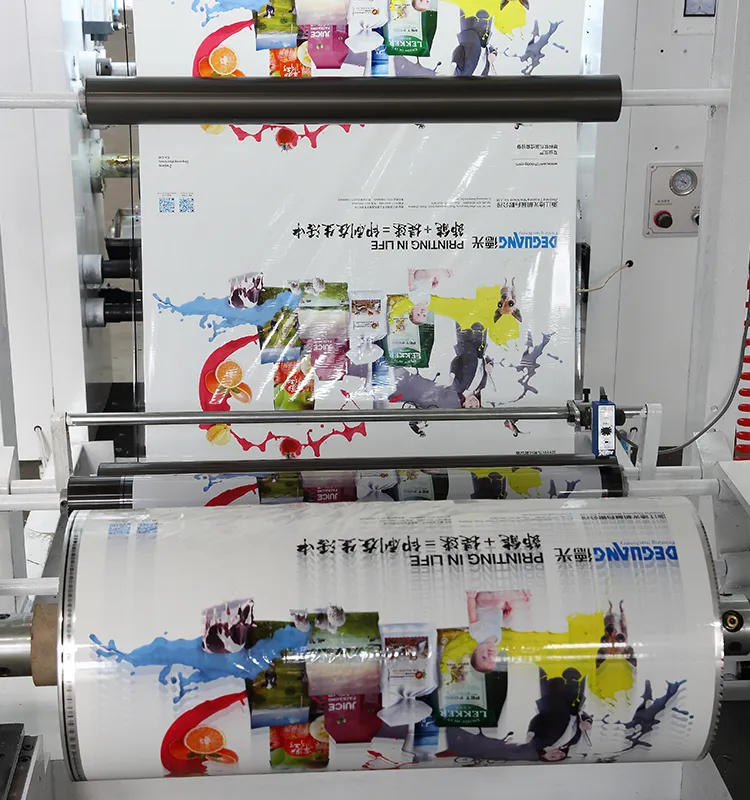

Main Picture:
| Model | GSGF-1100B |
| Layers of complex | 2 Layers |
| Laminating width | 1100mm |
| Loading material's diameter | 600mm |
| Adjustable range of laminating linear speed | 50-120m/min |
| Max. adjustable temperature of dry oven | 80 ºC |
| Max. adjustable temperature of heat beat | 70 ºC -90 ºC |
| Tension ratio | ≤1/1000 |
| Total power | 70kw |
| Weight | 6500kg |
| Overall dimensions (L×W×H)(mm) | 10300×2800×3200 |

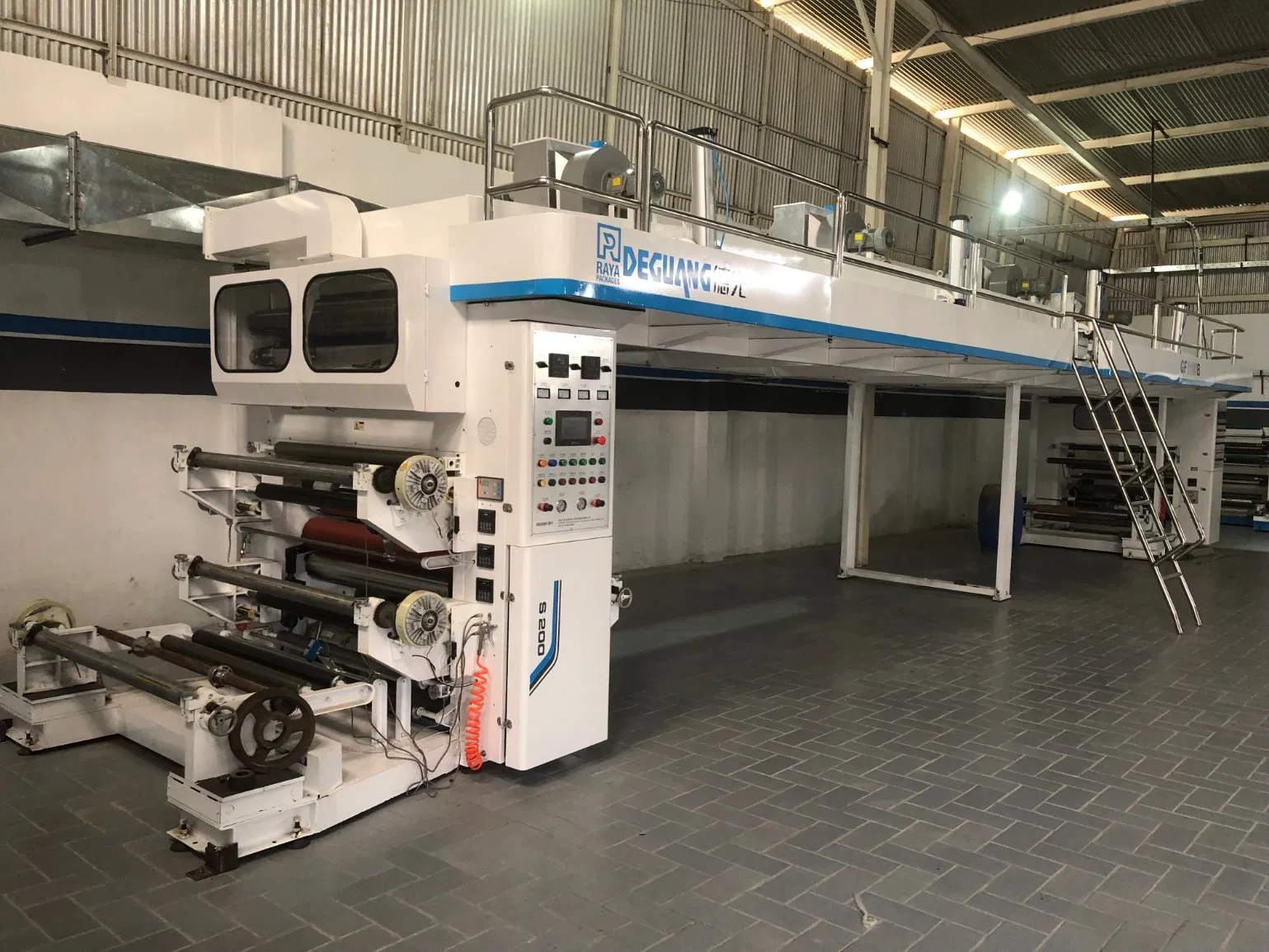

Main Picture:
