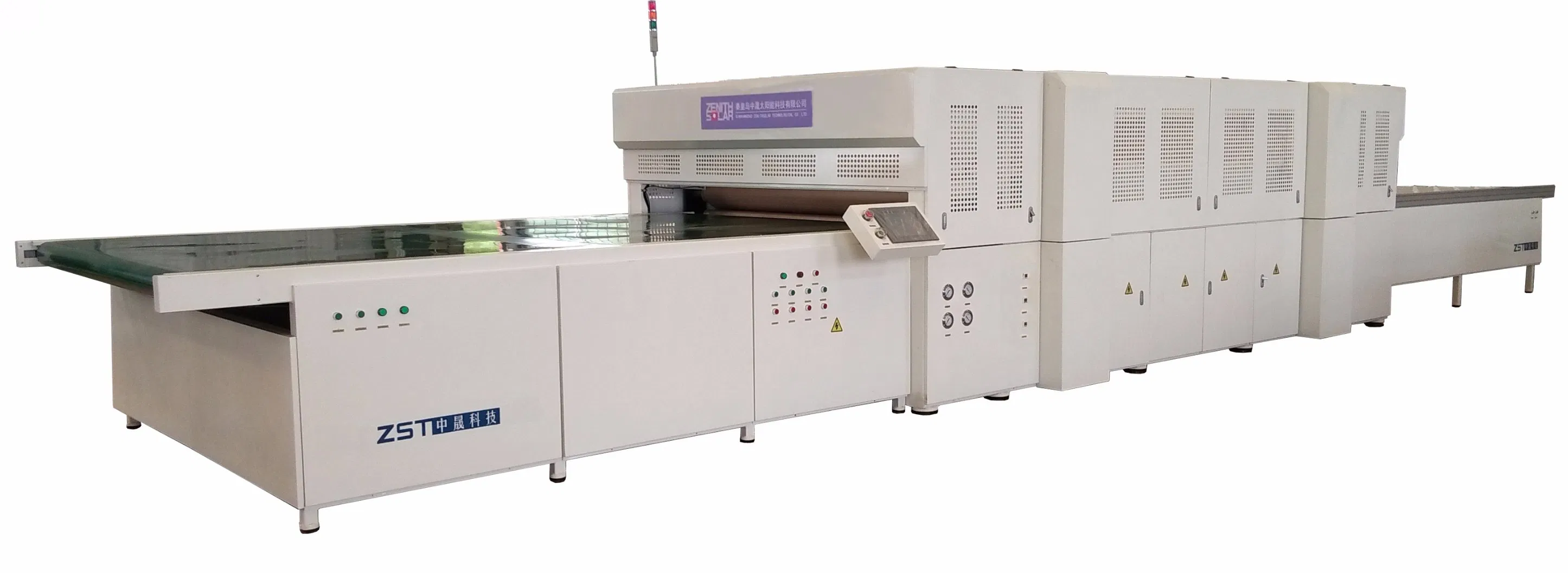

Auto Solar Laminator Machine with Panel
Negotiate the price according to specific circumstancesIntelligent integrated design , Multiple national patents,Germany Busch Vacuum Pump,Smoke-free work during the production,Saving more than 30% of electricity,CE certified products, Capacity: 35MW/Year/3Shift. Lamination area:2200mm*4500mmHeating......
Send Inquiry
Product Description
Negotiate the price according to specific circumstances

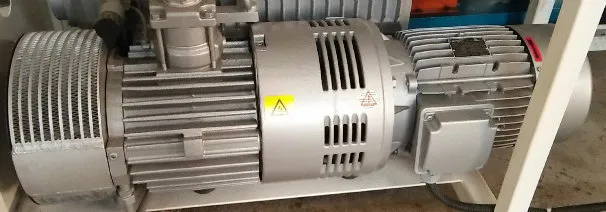

Intelligent integrated design , Multiple national patents,Germany Busch Vacuum Pump,Smoke-free work during the production,Saving more than 30% of electricity,CE certified products, Capacity: 35MW/Year/3Shift.
Power : AC380V/50Hz/3Phase/5Line
Dimensions(mm):14610mm×3200mm×1850mm
Weight : 14Ton
Intelligent integrated design , Multiple national patents,Germany Busch Vacuum Pump,Smoke-free work during the production,Saving more than 30% of electricity,CE certified products, Capacity: 35MW/Year/3Shift.
| Lamination area: | 2200mm*4500mm | Heating method: | heat conduction oil evenly |
| Heating Oil Volume: | 210L | Heating Time: | 25 to 140 ºC: 80~100Minutes |
| Vacuum Rate: | 302M³/H | Lamination time: | 12-15Minutes/PVB/EVA |
| Air pressure: | 0.5-1.2MPa | Compressed Air Flow: | 500L/min |
| Temperature uniformity: | ≤ ± 2 ºC | Temperature Accuracy: | ±1ºC |
| Total Power: | 65KW | Normal Work Power: | 20KW |
Power : AC380V/50Hz/3Phase/5Line
Dimensions(mm):14610mm×3200mm×1850mm
Weight : 14Ton
