Product Description

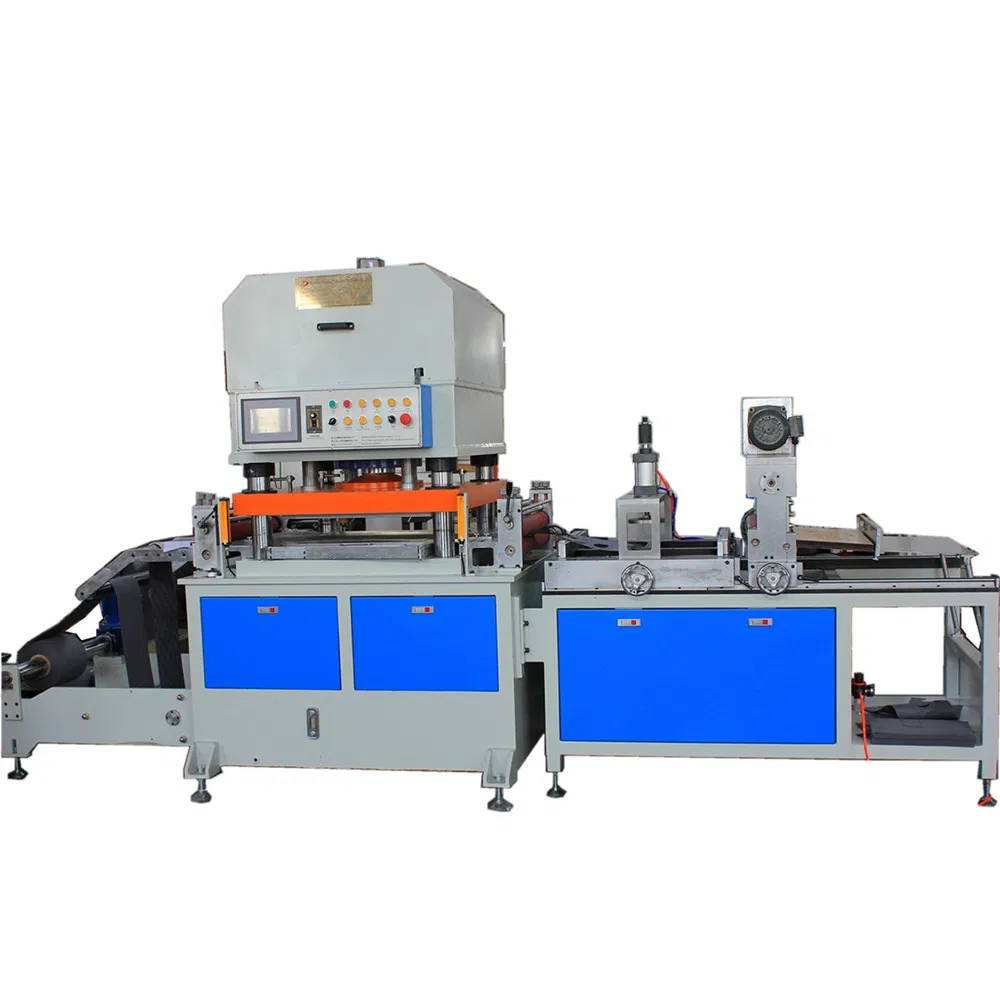

Non-Asbestos Gasket Cutting Machine
DP-Specialists in Non-Asbestos Gasket Cutting Machine
Powerful, Precise, Fast.
Suitable for sheet materials
Available in a wide range of powers from 8 tons to 60 tons with cutting surface from 600mm*650mm up to 1000mm*900mm.
Non-Asbestos Gasket Cutting Machine Functional Characteristics
Bottom plate easily to be pushed out and in,
Flexible and convenient operation,
Photoelectric registering system,
A programmer controller (PLC)
Kiss Cut, through cut both available.
Anti-vibration machine feet,
A cutting speed up to 20-90 punches per minute.
Non-Asbestos Gasket Cutting Machine Scope Application

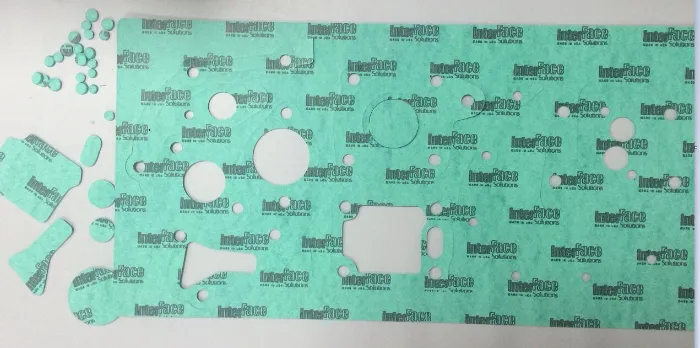

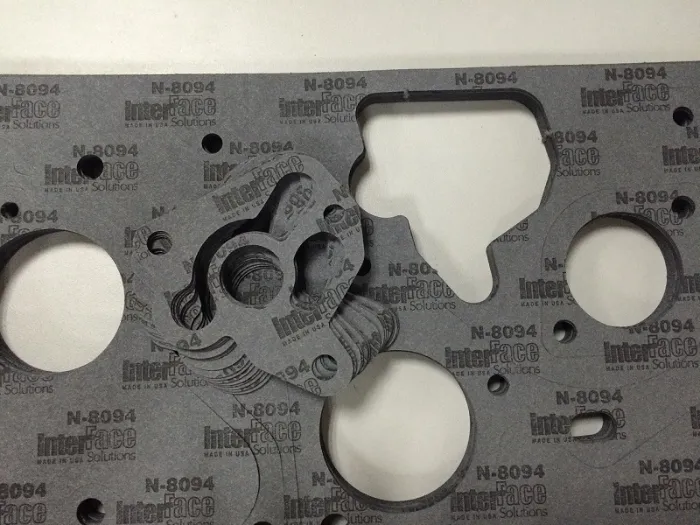

It is applied to cut various materials, such as Rubber, Plastic, Paper Board, Aluminum Foil, Cooper foil, PET, Protective film, Mylar, Reflector, Diffuser, Gaskets, Silicon Tape etc.
Main Technical Parameters Non-Asbestos Gasket Cutting Machine
Our Advantages
WITH UP PUNCHING PLATE have clamping tool that install the cutting mould easily /
The oil pressure system uses advanced, durable special circuit and electric control system of high stability, up to Super level of effectiveness.
Electronic positioning, precision and control in 0.03mm, inferred from round precision control at ± 0. 05mm. Machine feet install the SHIM, body solid and reliable.
Longer tool life, processing objects can be broken and half broken, cut smooth without edges.
PLC man-machine automatic program control oil system with integrated control, opto-electronic protection.
-----------------------------------------------------------------------------

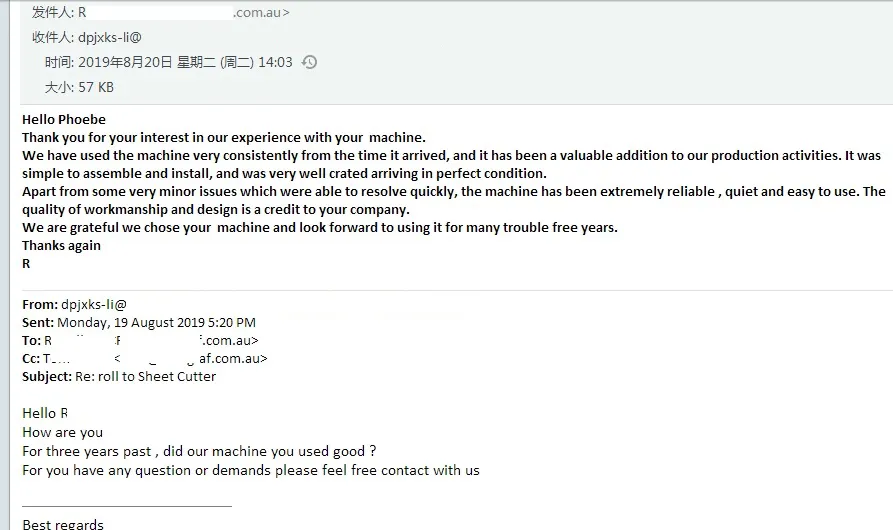

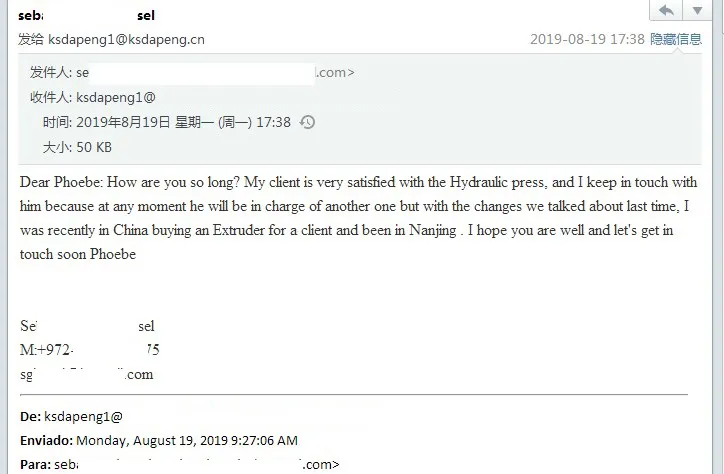

WHY CHOOSE US
-----------------------------------------------------------------------------

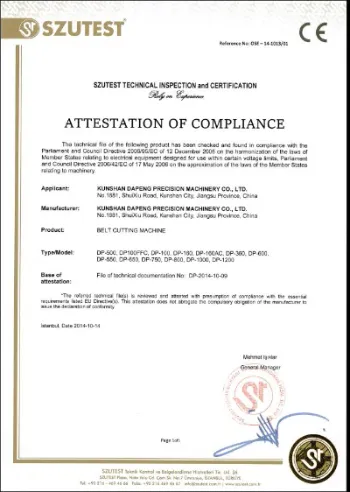

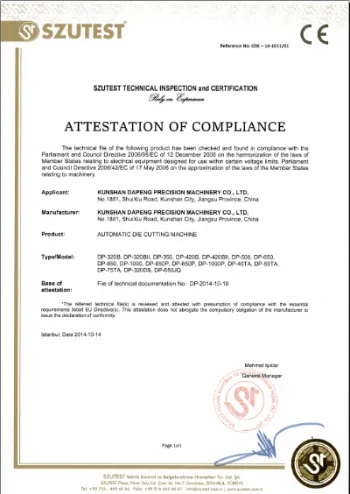

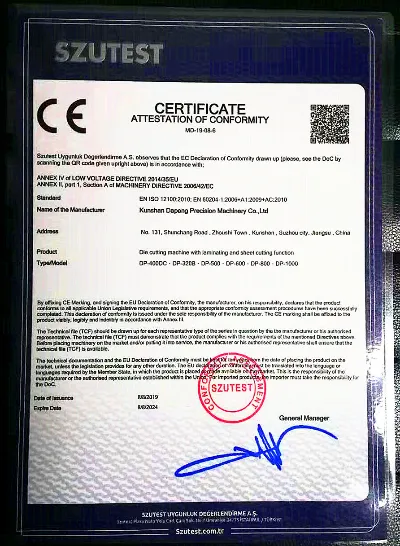

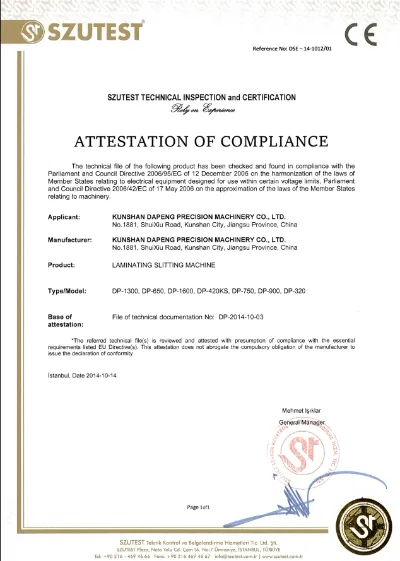

Certifications
DP-Specialists in Non-Asbestos Gasket Cutting Machine
Powerful, Precise, Fast.
Suitable for sheet materials
Available in a wide range of powers from 8 tons to 60 tons with cutting surface from 600mm*650mm up to 1000mm*900mm.
Non-Asbestos Gasket Cutting Machine Functional Characteristics
Bottom plate easily to be pushed out and in,
Flexible and convenient operation,
Photoelectric registering system,
A programmer controller (PLC)
Kiss Cut, through cut both available.
Anti-vibration machine feet,
A cutting speed up to 20-90 punches per minute.
Non-Asbestos Gasket Cutting Machine Scope Application
It is applied to cut various materials, such as Rubber, Plastic, Paper Board, Aluminum Foil, Cooper foil, PET, Protective film, Mylar, Reflector, Diffuser, Gaskets, Silicon Tape etc.
Main Technical Parameters Non-Asbestos Gasket Cutting Machine
| Model | Working Area | Max Tonnage | Max Daylight | Drive Motor | Weight | Main Machine Outline Dimension | Position Accuracy | Power |
| DP-650J | 600mm*650mm | 40t | 100mm | 10HP/7.5KW | 2.8 Ton | 1300mm*1200mm*1800mm | ±0.01 mm | 380V 50HZ |
| DP-800J | 600mm*800mm | 40t | 100mm | 10HP/7.5KW | 3.1Ton | 1300mm*1450mm*1800mm | ±0.01 mm | 380V 50HZ |
| DP-1000J | 600mm*1000mm | 60t | 100mm | 10HP/7.5KW | 4.2Ton | 1300mm*1700mm*1800mm | ±0.01 mm | 380V 50HZ |
Our Advantages
WITH UP PUNCHING PLATE have clamping tool that install the cutting mould easily /
The oil pressure system uses advanced, durable special circuit and electric control system of high stability, up to Super level of effectiveness.
Electronic positioning, precision and control in 0.03mm, inferred from round precision control at ± 0. 05mm. Machine feet install the SHIM, body solid and reliable.
Longer tool life, processing objects can be broken and half broken, cut smooth without edges.
PLC man-machine automatic program control oil system with integrated control, opto-electronic protection.
| Configuration Data | |
| 1. Mitsubishi BRAND PLC | |
| 2. Touch Screen | |
| 3. Optoelectronic safety | |
| 4. Automatic Pressure regulating motor | |
| 5. Host Machine Motor | |
| 6. Oil Bump | |
| 7. Magnetic Valve ,cooler | |
| 8. Host Machine hydro-cylinder | |
| 9. Flatbed cylinder | |
| 10. Servo Motor | |
| OPTIONAL functions | |
| * material feeding | |
| * hot foiling before and rewindng | |
| * web alignment | |
| * total die cutting at register | |
| * conveyor belt and table to take out finished cutting label | |
| * anti-static system installed | |
