High Speed Paper Cup Paper Box Roll Paper Die Cutting Creasing Machine
ModelFDZ970x550FDZ1080X640FDZ1200X640Max Cutting Area950mmx520mm1050mmX610mm1170mmX610mmCutting Precision0.15mm0.15mm0.15mmPaper Gram Weight 135-400g135-400g135-400gProduction Capacity100-180 times/min100-180 times/min100-180 times/minAir Pressure Requirement0.5Mpa0.5Mpa0.5MpaAir Pressure Consumpti......
Send Inquiry
Product Description
| Model | FDZ970x550 | FDZ1080X640 | FDZ1200X640 |
| Max Cutting Area | 950mmx520mm | 1050mmX610mm | 1170mmX610mm |
| Cutting Precision | 0.15mm | 0.15mm | 0.15mm |
| Paper Gram Weight | 135-400g | 135-400g | 135-400g |
| Production Capacity | 100-180 times/min | 100-180 times/min | 100-180 times/min |
| Air Pressure Requirement | 0.5Mpa | 0.5Mpa | 0.5Mpa |
| Air Pressure Consumption | 0.25m³/min | 0.25m³/min | 0.25m³/min |
| Max Cutting Pressure | 300 T | 300 T | 300 T |
| Weight | 7.5T | 9T | 11T |
| Max Roller Diameter | 1600MM | 1600MM | 1600MM |
| Total Power | 12KW | 12KW | 12KW |
| Dimension | 5500x2000x1800mm | 6500x2000x1800mm | 7500x2000x1800mm |
Introduction:

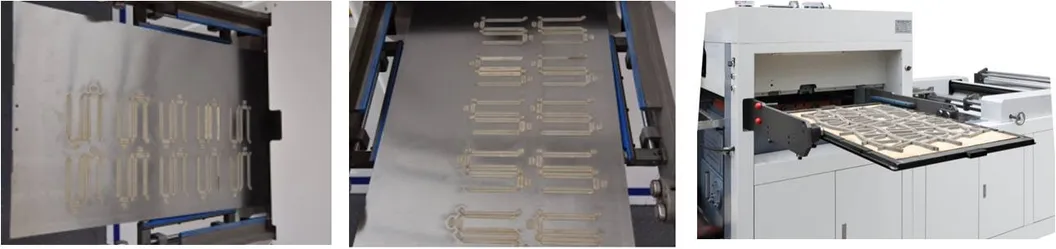

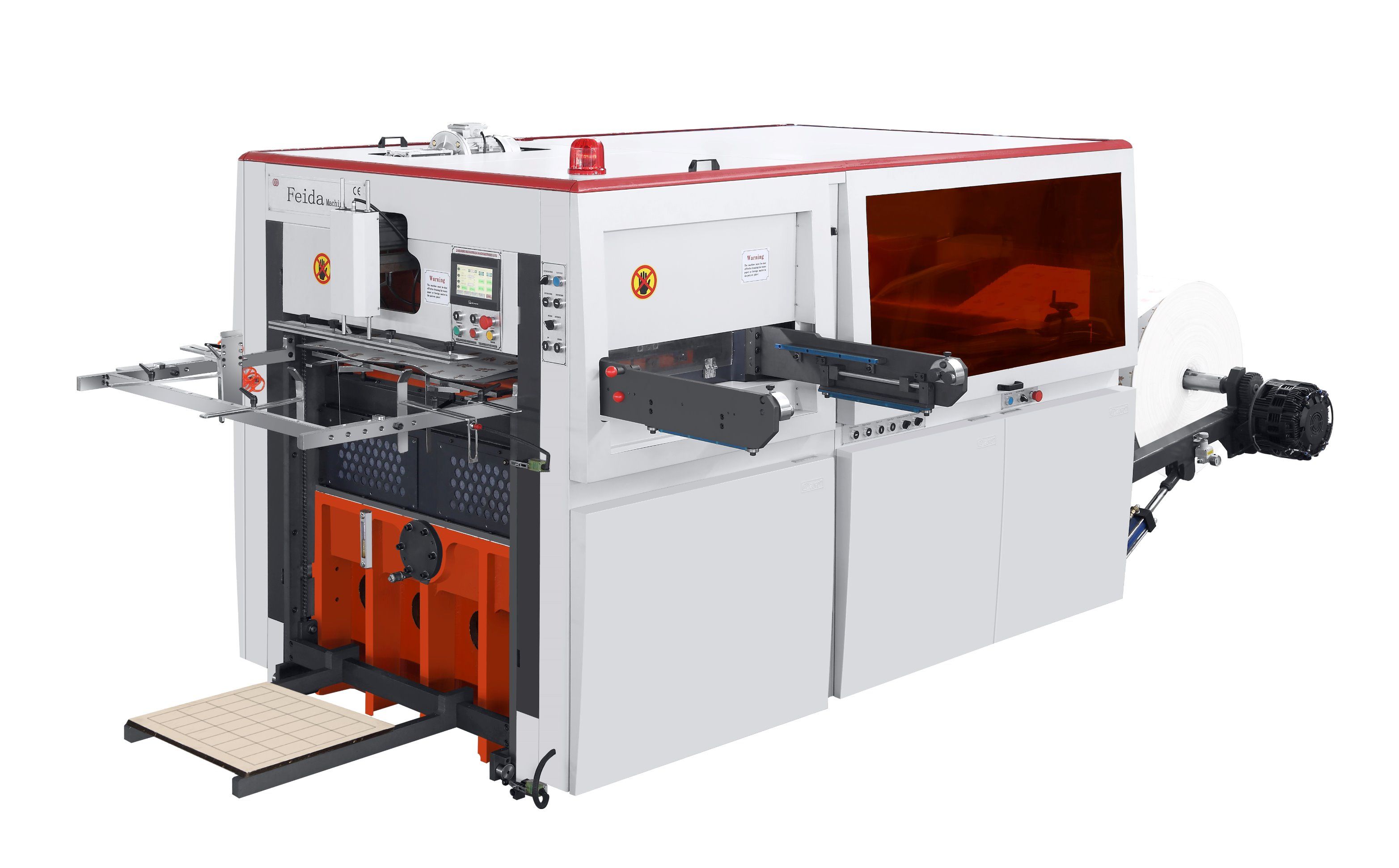

FDZ series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.
Main Structure:

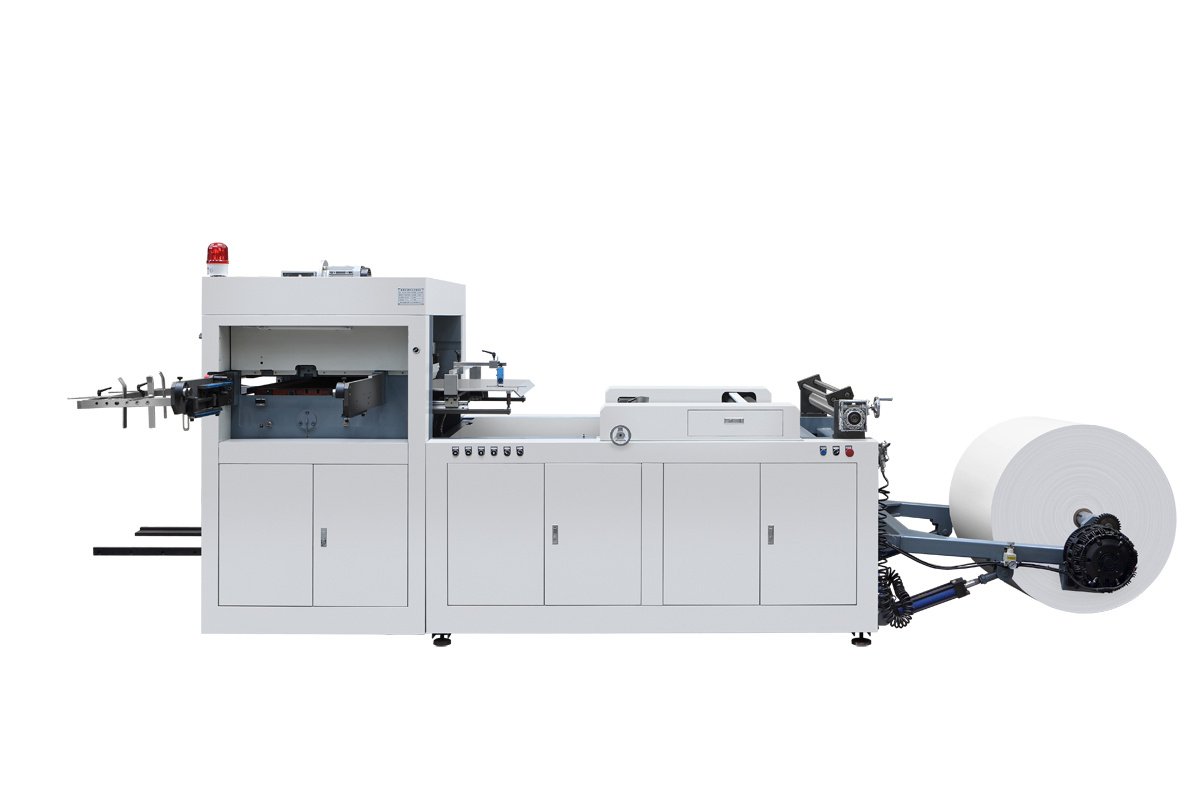

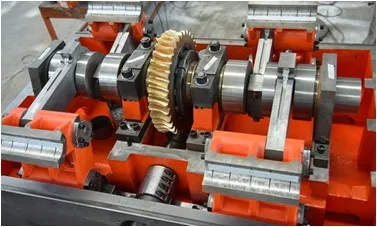

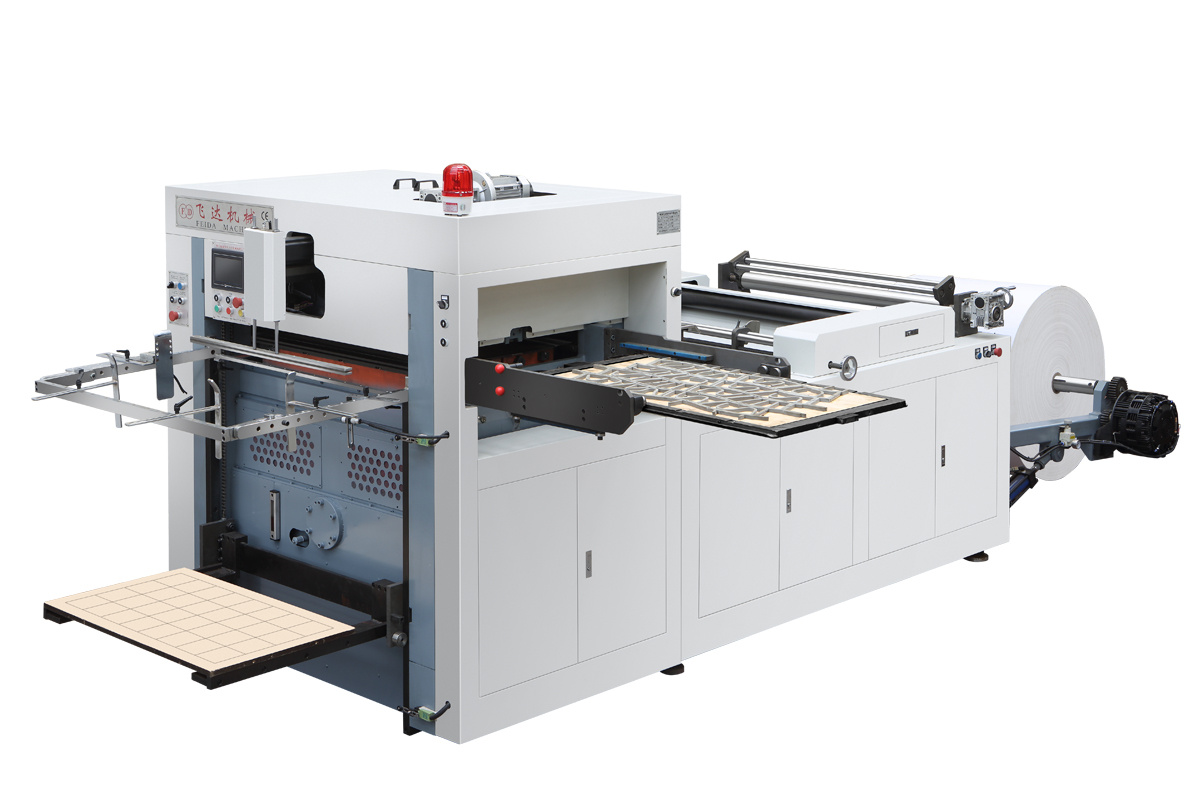

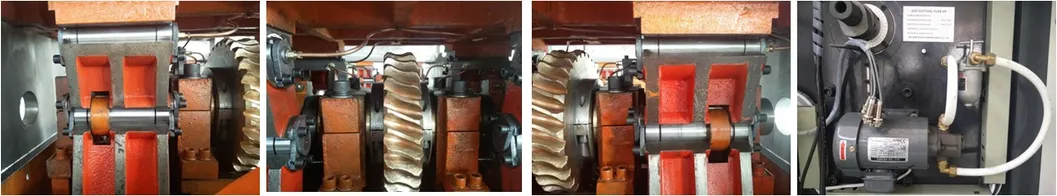

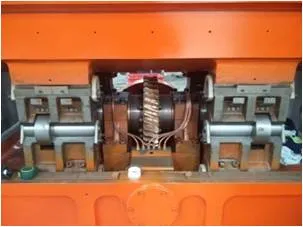

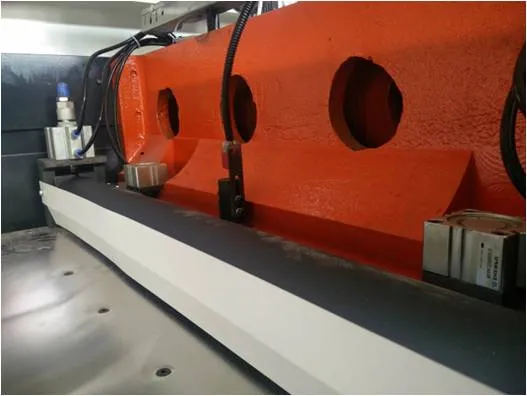

1.Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.

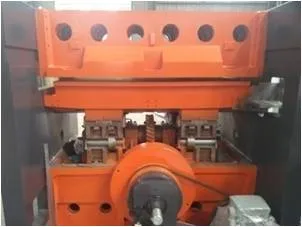

Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.
2.Lubrication System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.
3. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.
Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.
4. Electrical control pressure: accurate and fast to achieve die-cutting pressure adjustment, The pressure is automatic adjusted through the motor to control the four feet by HMI.It is very convenient and accurate.

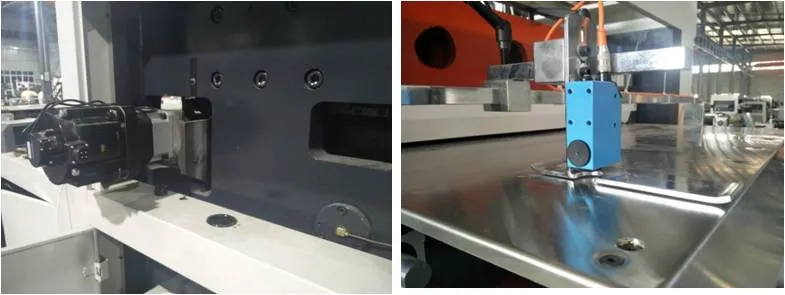

5. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
6. Electrical cabinet
Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.
PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen.
Electrical control system: adopts micro computer control, encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding, convey, die-cutting and delivering process automatic control and detect.
Security devices: machine alarming when failure happens, and automatic shut down for protection.
7. Correction Unit: This device is controlled by Motor, which can fix and adjust the paper in a correct position. (left o right)
8. Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.
Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.
Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
9. Paper blocked alarm: the alarm system makes the machine stop when paper feeding blocked.
10. Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that's hydraumatic, it could support at least 1.5T. Max roll paper diameter 1.6m.
11. Load material: Electric roll material loading, which is easy and fast. The two rubber covered rollers are controlled by Traction Motor, so it's very easy to make paper go forward automatically.
12. Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is, it can be flatten or refolded towards other directions.
13. Feed material: the photoelectric eye tracking system assures the synchronization of material feeding and die-cutting speed.
>>> RFQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
