High-Speed Digital Auto-Positioning Optical Sensor CCD Camera Fast Durable Sheet Cutter for Cut and Crease Stickers & Cardboards
Automatic Sheet Cutter Cut and Crease Stickers & Cardboards1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly2. Optimized auto feeding system, more efficiency and no jam3. Physical buttons + touch screen, intelligent human-computer interaction, easy to operate4......
Send Inquiry

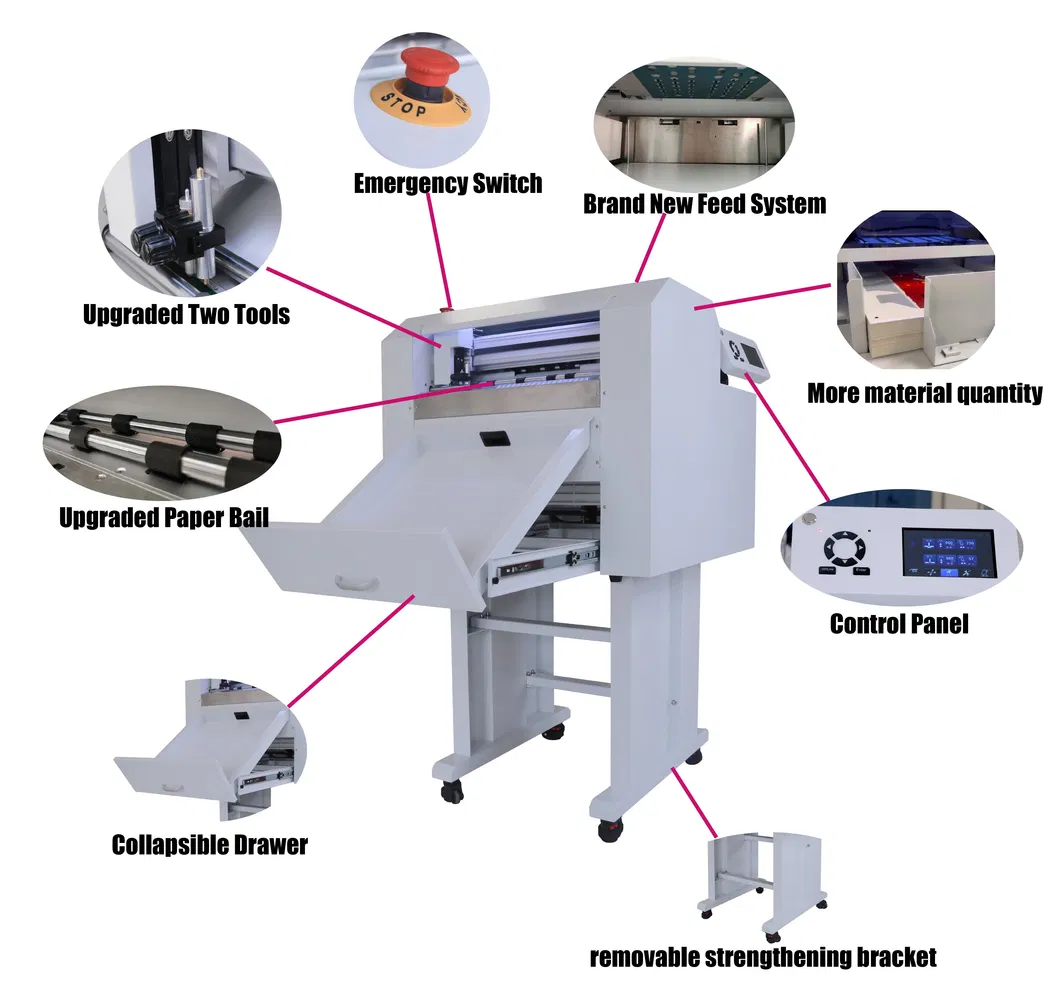

Product Description

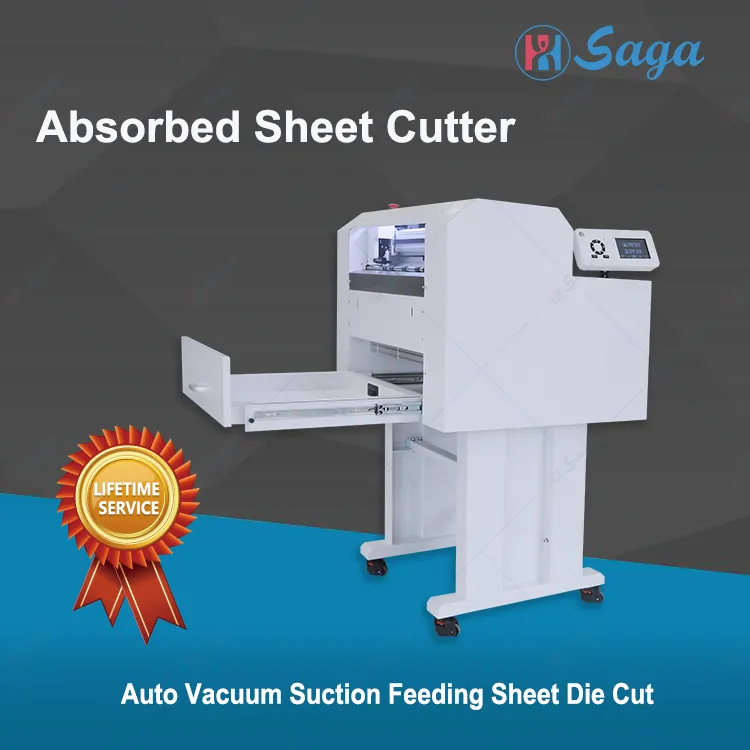

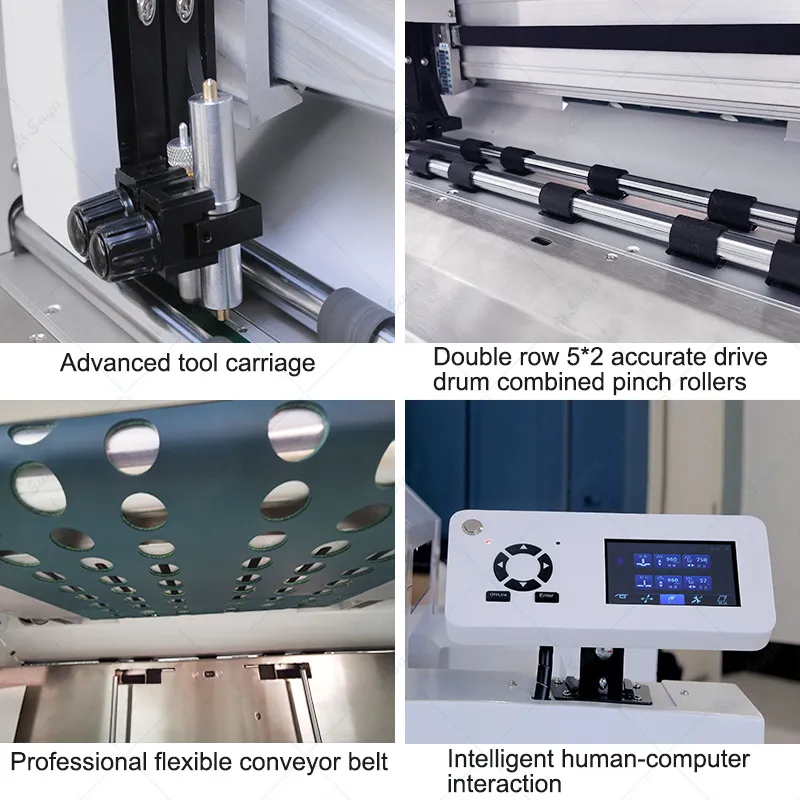

Automatic Sheet Cutter Cut and Crease Stickers & Cardboards
1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly
2. Optimized auto feeding system, more efficiency and no jam
3. Physical buttons + touch screen, intelligent human-computer interaction, easy to operate
4. Industrial grade CCD camera recognition with high-precision

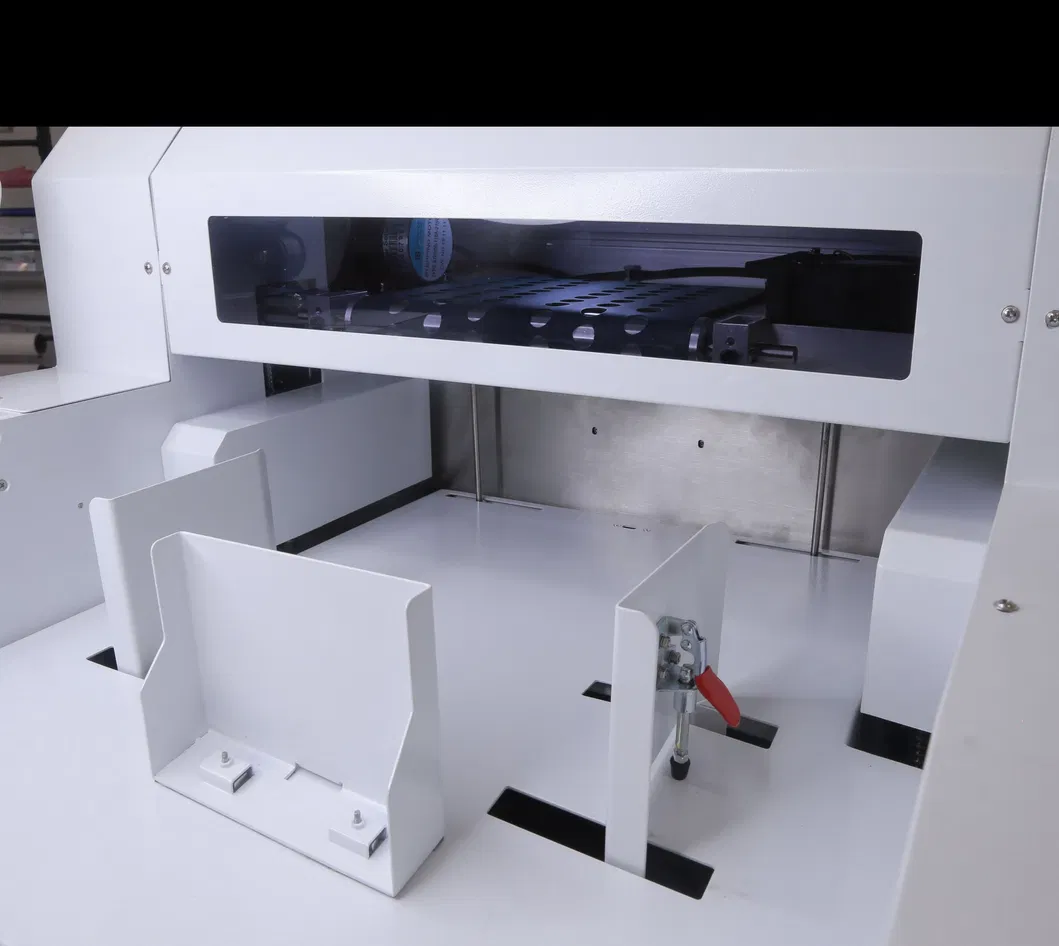

5. Vacuum suction feeding system , quick and stable
Model name | SG-ASC 1907 |
Cutting control system | X- High-power brushless servo motor |
| Positioning sensor type | Digital Camera (CCD) |

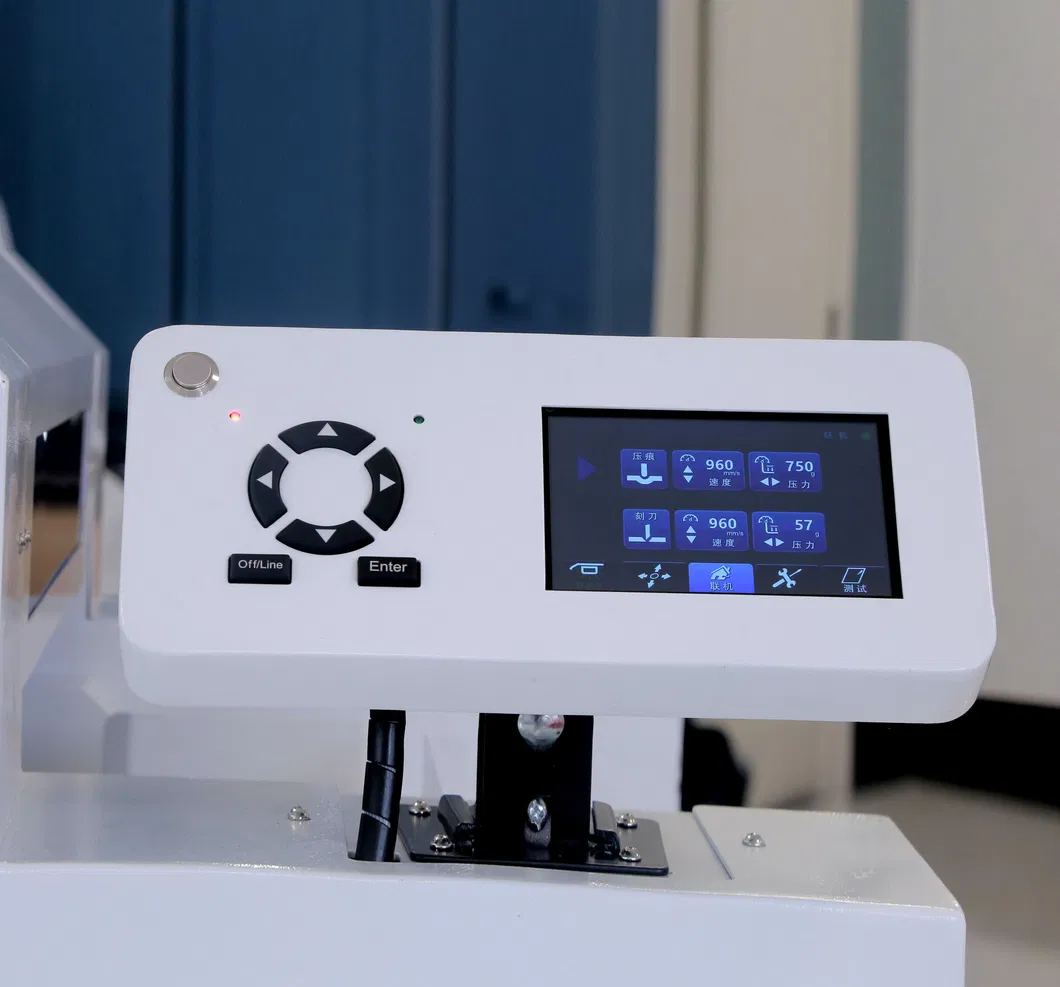

| Control panel | 5 inch capacitive touch screen |

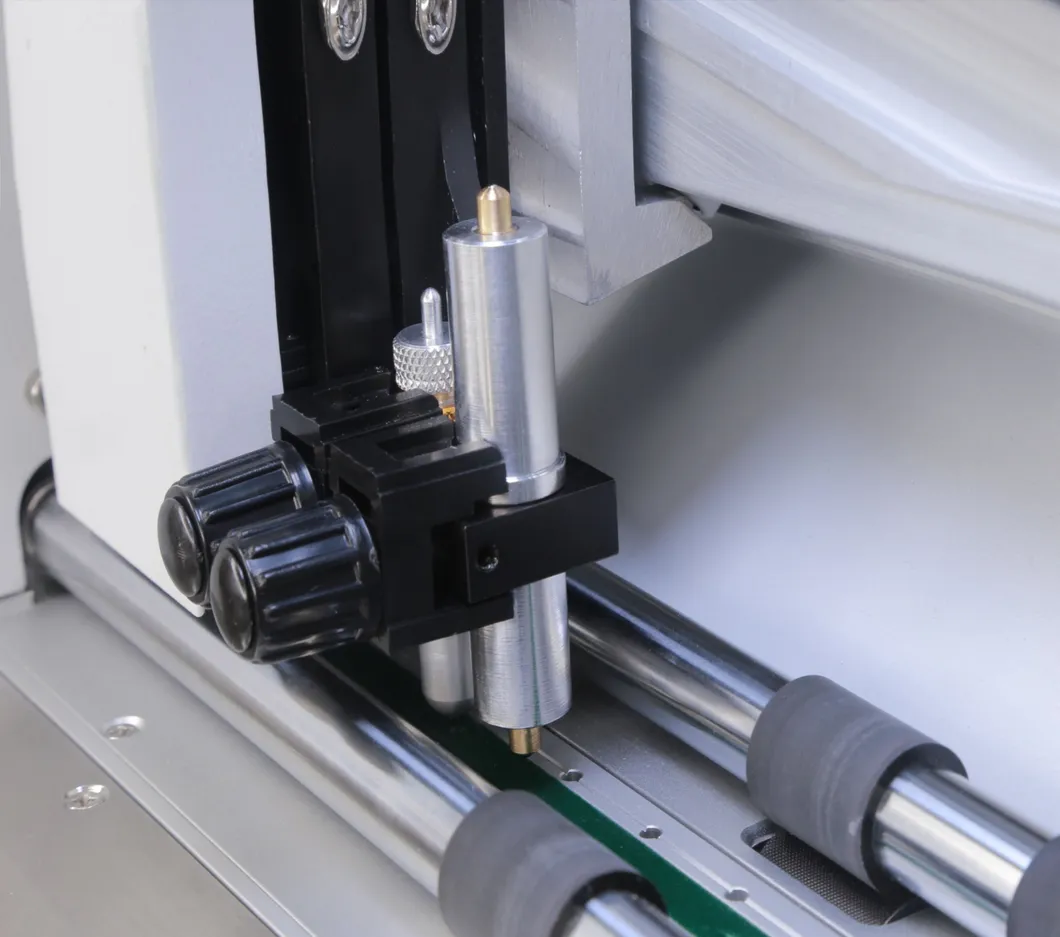

| Number of tool holders | Double tool holders |
| Tools | Blade, creasing tool and pen |
| Machine performance | |
| Media hold method | Vacuum suction |
| Scanning code type | Mark/QR code |
| Maximum cutting size | A3+ (483mmX330mm) |
| Scanning speed | 5-10s |
Maximum actual cutting speed | 12mm/s-960mm/s |
Maximum Cutting Force | Creasing 0-750gf (3gf Step) |
Mechanical resolution | 0.02mm |
Programmable resolution | HPGL0.025mm |
| Repeat precision | ≤0.05 |
| Cutting Media Types | Self-adhesive sticker, cardboard, PVC, etc. |
Software and compatibility | |
Connectivity | USB |
Software and compatibility | Corel Draw,Adobe Illustrator PC only, compatible for windows7, 8,10 (USB interfaces ) |
Power and working environment requirements | |
Voltage and current | 100VAC-120VAC,50/60Hz,Maximum current 6.8A |
Power | 350W |
Voltage and current (Vacuum Pump) | 110VAC,50Hz,Rated current 12.4A,60Hz,Rated current 17.2A |
Power(Vacuum Pump) | 50Hz,1.1KW; 60Hz,1.3KW |
Stand | Included |
Operation environment | Temperature +5°C to+35 °C (41ºF-95ºF), Humility 30% -75% (Non-condensing) |
Dimensions and weights | |
Actual dimensions | L787mm* W740mm*H1320mm |
Package dimensions | L970mm* W970mm*H880mm |
NW/GW | 114kg/146kg |
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
