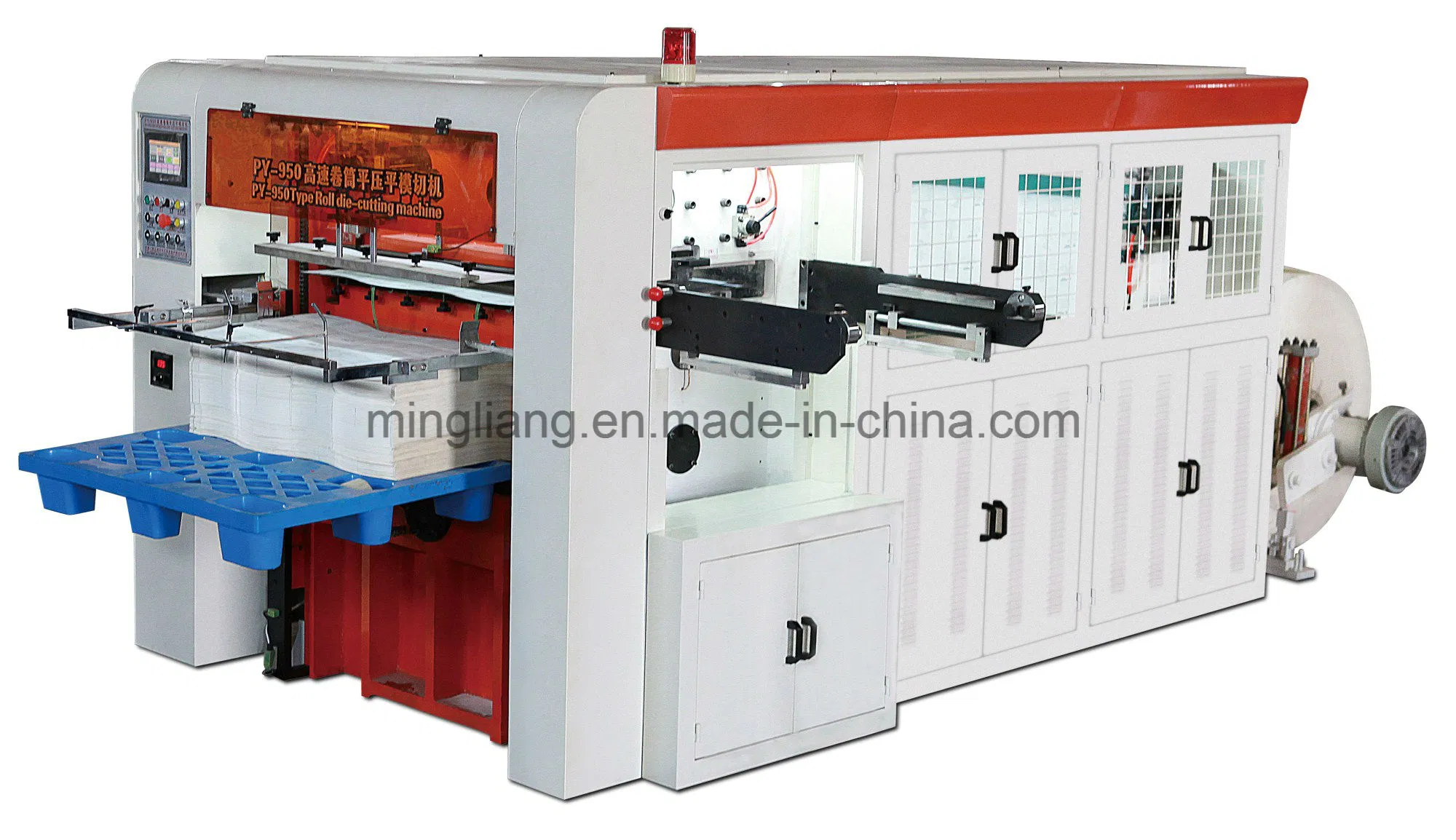

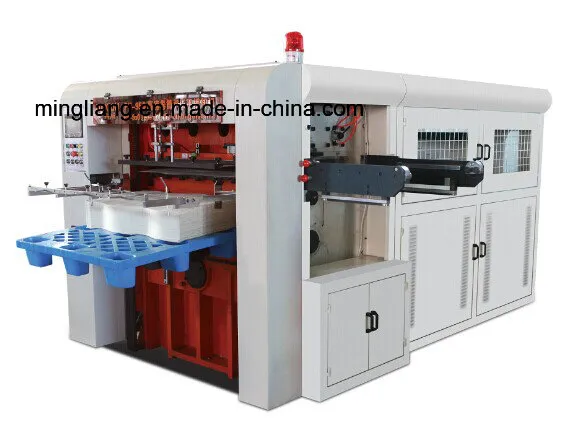

High Speed Automatic Roll Creasing Die-Cutting Machine
PY-1200 is an ideal and professional machine in die-cutting creasing and embossing various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box, medical package,wine package, food package and other environmental protection products. It adopts micro......
Send Inquiry
Product Description
PY-1200 is an ideal and professional machine in die-cutting creasing and embossing various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box, medical package,wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.
Technical parameter:
| Type | PY-1200 |
| Cut Precision: | ± 0.10mm |
| Production capacity | 90-120times/min |
| Maximum cutting size: | 1200 x650mm |
| Suitable Material: | 100-800g/m2 PE coated paper corrugating paper plastic material |
| Maximum Pressure: | 300T |
| Total Power: | 11KW |
| Total Weight: | 9T |
| Overall Dimension: | 4000 x 2500 x 1850 mm |
| Working Air Source: | Air pressure 0.5-0.7Mpa (Need to buy compressor) |
Main Feature:

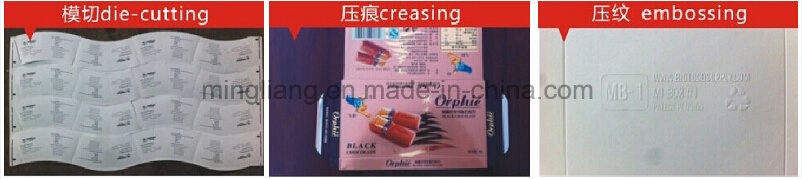

1.The normal working speed is 90-120times per minute. It has the ability to die-cutting,creasing and embossing for various shapes.

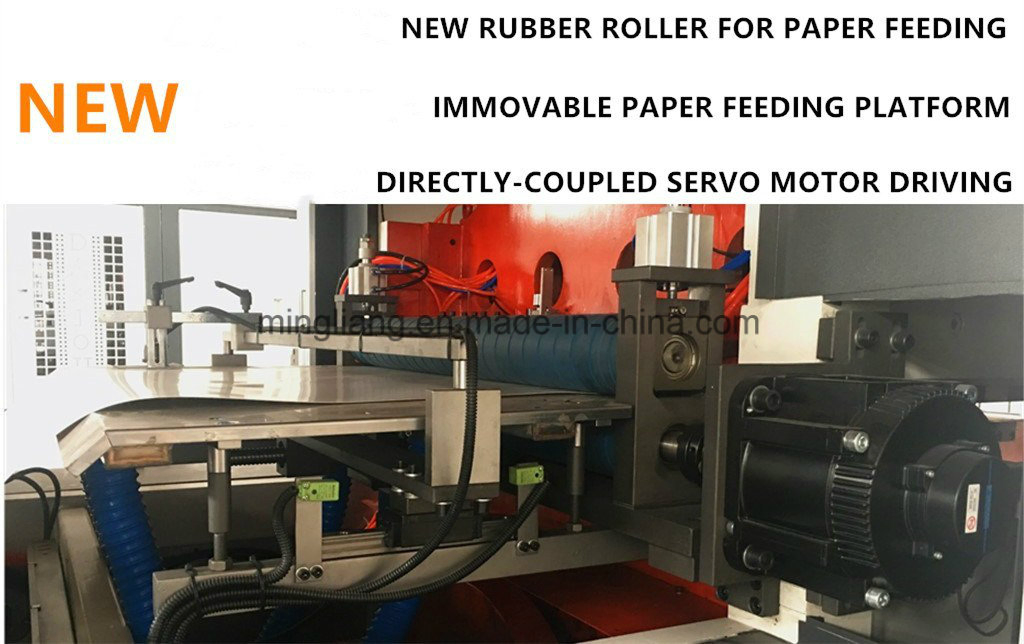

2.Paper conveyed by servo motor to ensures steady and accurate conveying.photoelectricity sensor checks the color code of printing to ensure fix the paper position accurately.
3.Worm wheel and worm transmission system ensures the powerful and steady pressure;It is very convenient and accurate to adjust pressure through HMI.
4.Electric control system uses PLC and HMI. Equipped with safety refinements to make acousto - optical alarming and auto stop when some faults.
5.Lubricating with oil circulation and alarming when lack of oil to ensure smooth running and prolong the machine life.
6.The die-cutting frame uses pneumatic locking system to convenient operation. Die-cutting down steel board from Taiwan is accurate and lasts forever.
7.It adapts electric control pneumatic clutch to protect the machine when start and emergency stop.The flywheel provides a mounting location to the clutch and also can increase the pressure.
