              Product DescriptionSAGA cutting plotterFeartures:1,High force cutting head with 4 wheels 2,Aluminum alloy construction, ABS end caps, welded steel stand 3,Aluminum body structure,sheet metal support,stable useApplications: Self-adhesive sticker , label etc.Maximum thick:0.2mm(depend on material)Deta......

              Send Inquiry

              Product Description

              Product Description
              SAGA cutting plotter
              Feartures:
              1,High force cutting head with 4 wheels
              2,Aluminum alloy construction, ABS end caps, welded steel stand
              3,Aluminum body structure,sheet metal support,stable use


              Applications:

              Self-adhesive sticker , label etc.

              Maximum thick:0.2mm(depend on material)

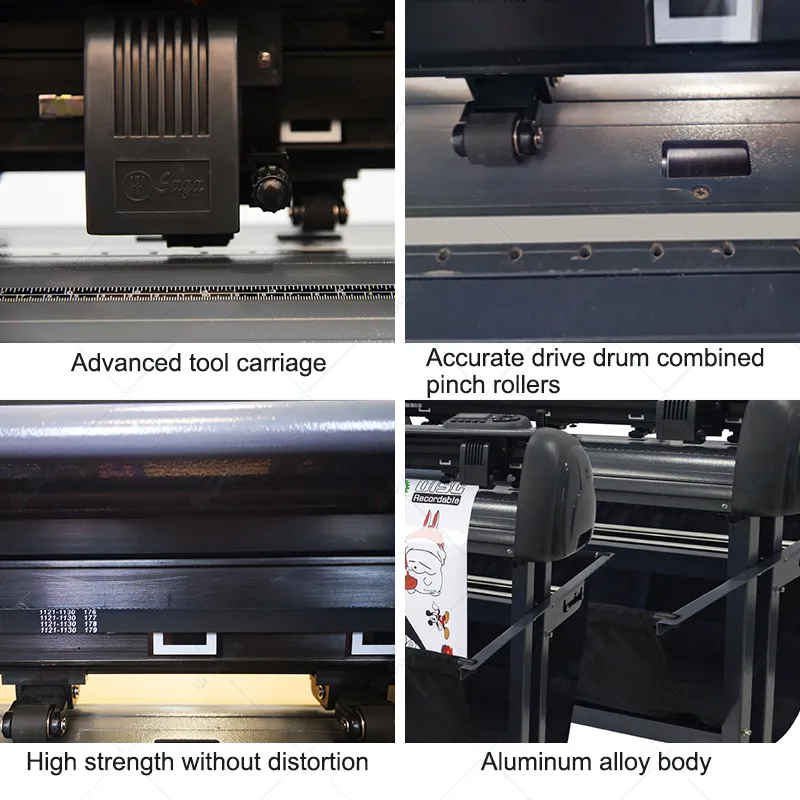

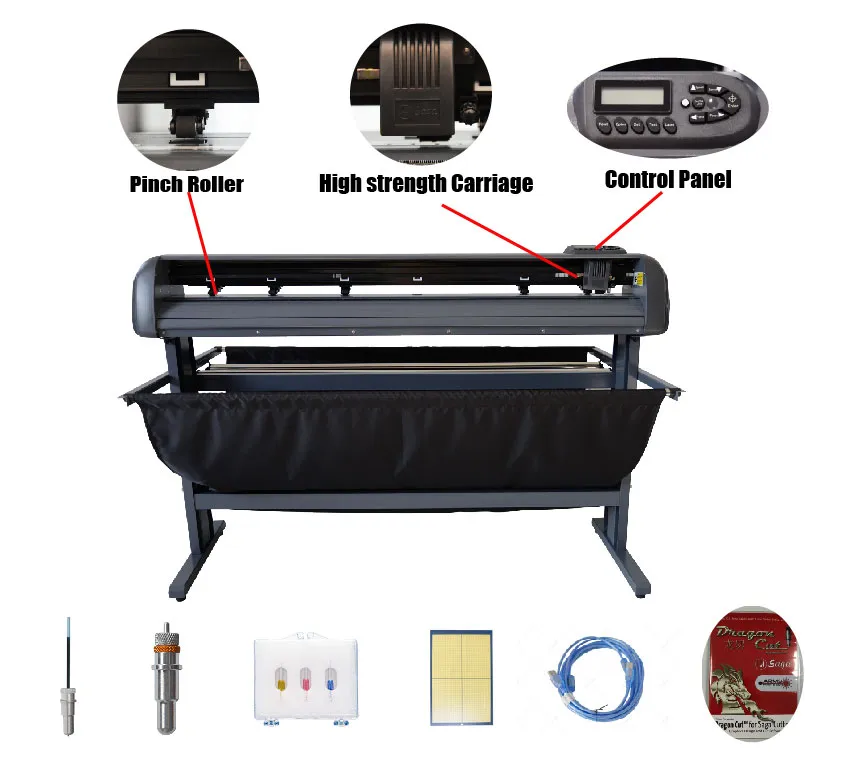

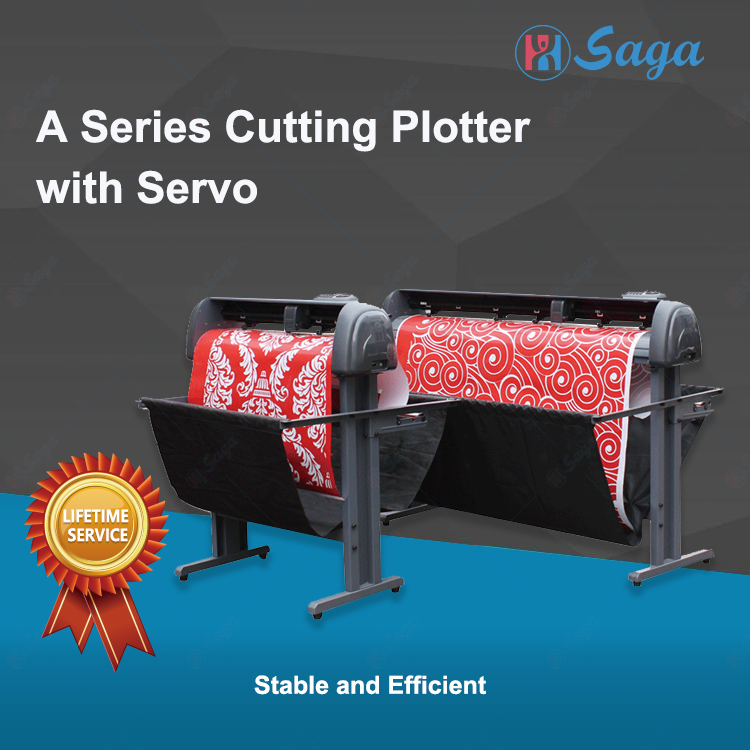

              Detailed Photos
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)

              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)

              Product Parameters

              Model NameSG-1800II
              Maximum sheet size1800mm
              Maximum cutting size1680mm
              Minimum cutting characterAbout 5mm2
              Mechanical resolution0.02mm
              Repeat precision 0.082mm
              Maximum linear cutting speed960mm/s
              Maximum cutting force750g
              Cutting control systemDC servo
              Motor speed  0-3500 RPM
              CPU  64-DSP
              Package dimensions2100mmx400mmx550mm

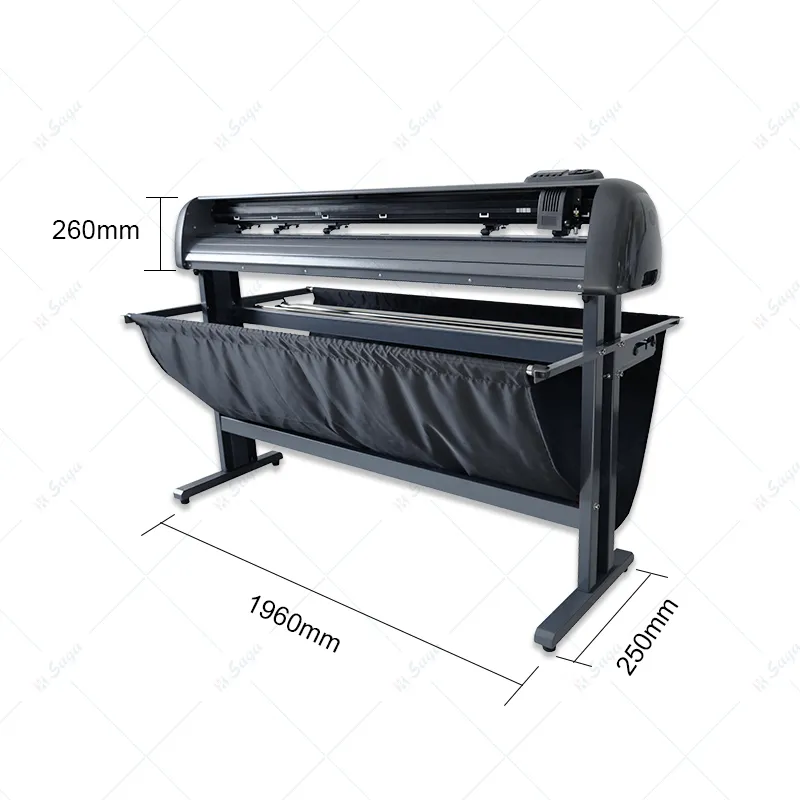

              Acutal dimensions1960mmx250mmx260mm
              GW/NW68KG/47KG
              Software and compatibility
              ConnectivityUSB/RS-232
              Software and compatibilityDragon Cut,for computer,compatible for Windows7,8,10(USB direct connection to the computer)
               Corel Draw/Illustrator Plug-in(SD direct connection to the computer)
              Power and working environment requirments
              Power source100V-240V,50/60Hz
              Power150W
              Operation environmentTemperature +5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing)
              Stand&PocketIncluded

              This parameter is subject to change without prior notice.The company reserves the right of final interpretation.

              Packaging & Shipping
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)
              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)



              After Sales Service

              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)

              Certifications

              Digita Laser Economical High-Performance Sample Sturdy Vinyl Die Sticker Label Self Adhesive Prototype Small Machine Cutter (SG-1800II)

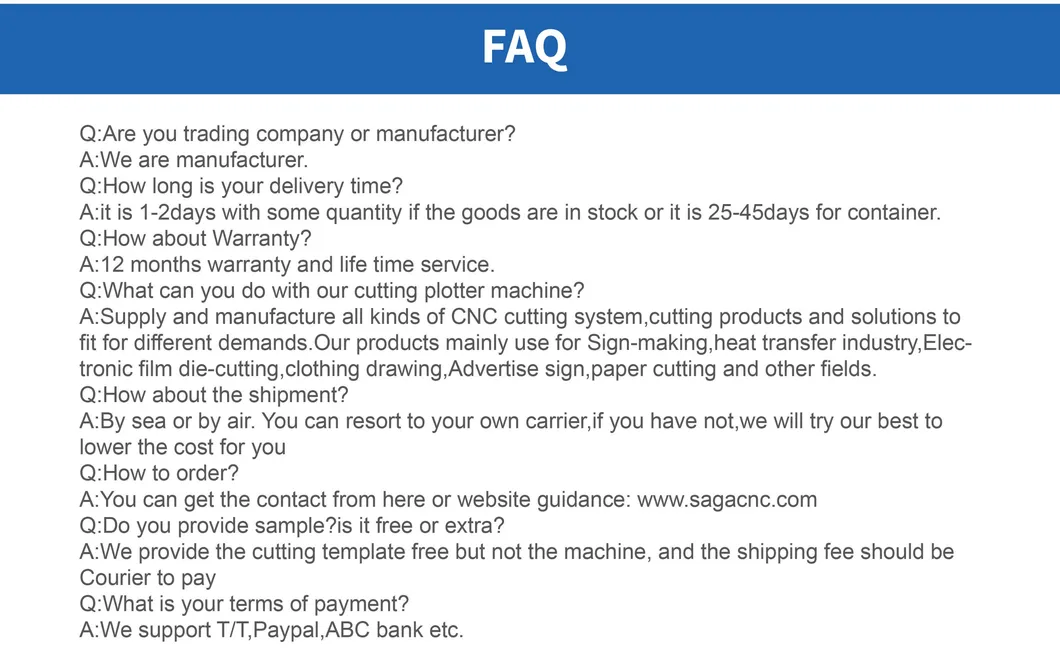

              FAQ
