Carton Flatten Die Punching Machine Die Cutting Machine Carton Cutting Machine
Technical Specification Model FD970x550Max cutting area 940mmx510mmCutting precision ±0.20mmPaper gram weight120-600g/cbmProduction capacity 90-180times/minAir pressure requirement 0.5MpaAir pressure consumption 0.25m³/minMax cutting pressure 150TWeight 6.5TMax roller diameter 16......
Send Inquiry
Product Description
Technical Specification
| Model | FD970x550 |
| Max cutting area | 940mmx510mm |
| Cutting precision | ±0.20mm |
| Paper gram weight | 120-600g/cbm |
| Production capacity | 90-180times/min |
| Air pressure requirement | 0.5Mpa |
| Air pressure consumption | 0.25m³/min |
| Max cutting pressure | 150T |
| Weight | 6.5T |
| Max roller diameter | 1600mm |
| Total power | 12KW |
| Dimension | 4500x2200x1800mm |
Introduction

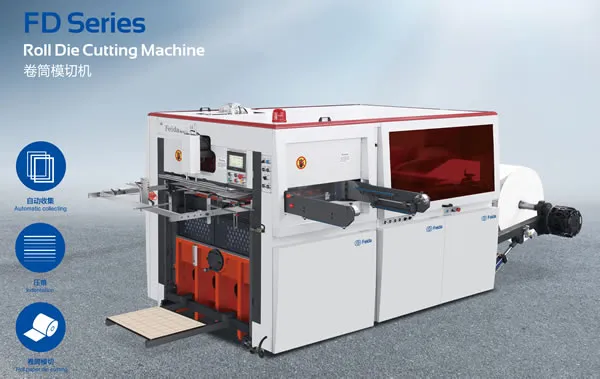

FD series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.
Main structure

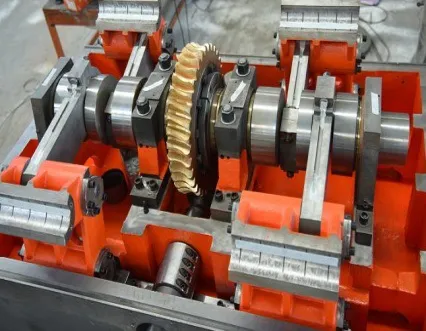

1.Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.

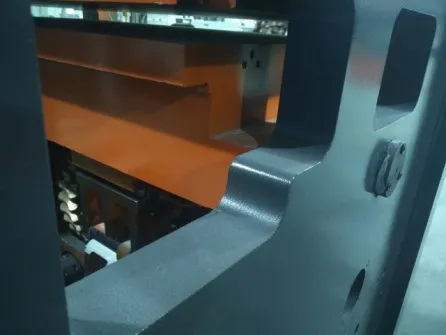

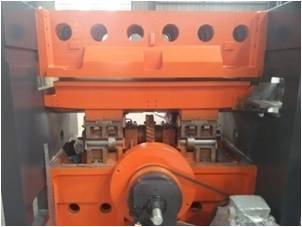

Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.

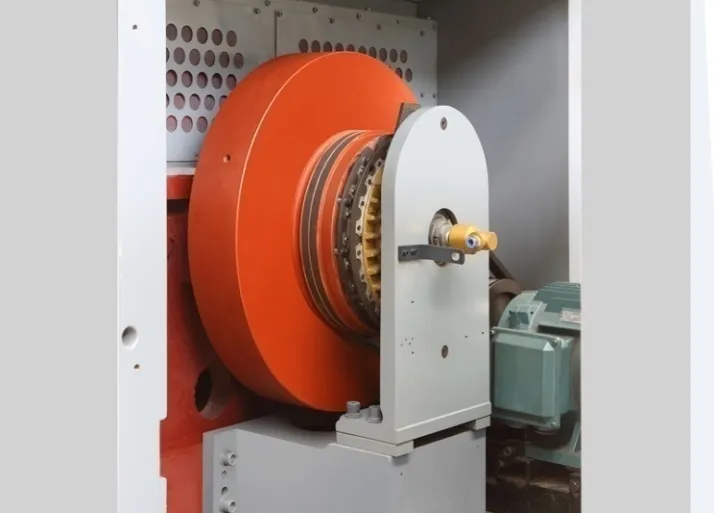

2. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

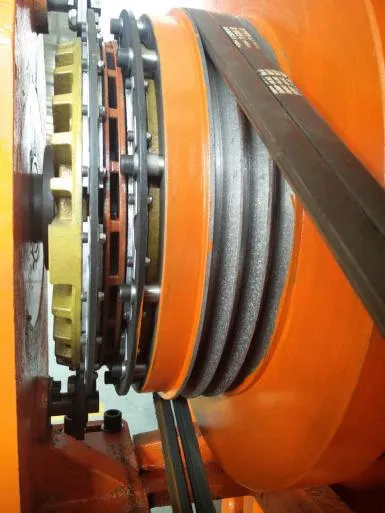

Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

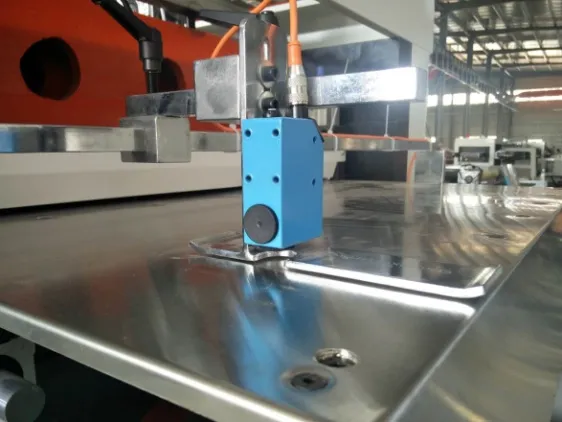

3. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
4. Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.
Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.

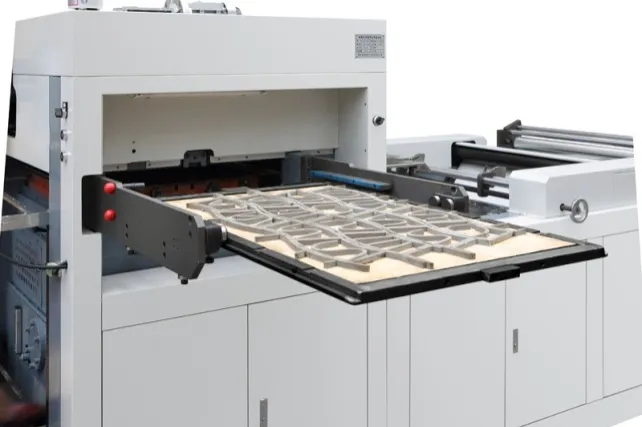

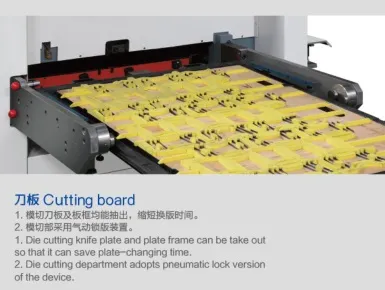

Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
FAQ
Q1. What Kinds Of products Can Be Made On Feida die cutting Machine ?
Feida roll die cutting machine is suitable for creasing,die cutting,embossing paper cup,paper plate,paper box,square box,etc paper packaging
Q2. What Is The Packing Way Of The Machine for delivery?
Usual , flexible packaging with iron underframe
Q3. What Is The Machine Delivery Time ?
As Generally speaking, 20--40 days shippment after confirming layout.
Q4. How About The Machine Guarantee?
One year. During this period, any parts damaged caused by machineself, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
Q5. What About The Machine Installation And Training ?
If customer request, we will send our technician to install and train operation.Buyer bears 100USD allowance per day,tickets,accomadation,food
Q6.What Is The Terms Of Payment ?
By 100%T/T , 30% of deposits should be paid in advanced , then 70% of balance should be paid before shippment . or L/C at sight , both are ok .
Welcome to contact with us freely or send me the inquiry if you are interested in our machine.
