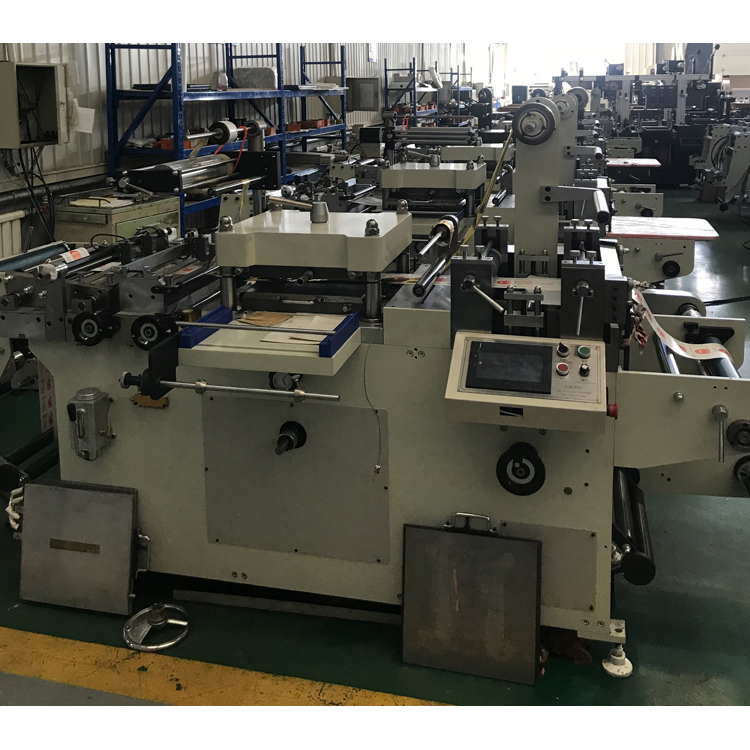

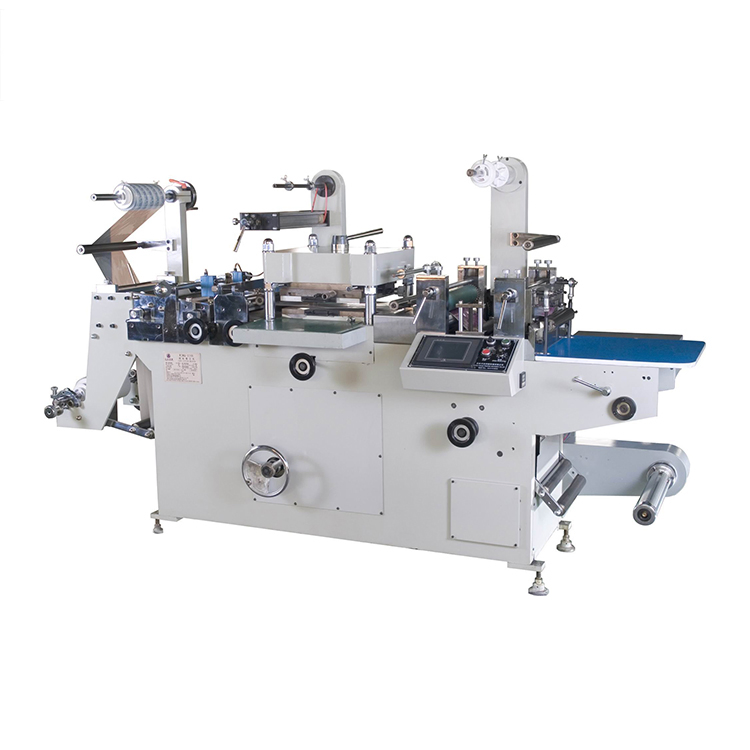

Automatic Flatten Adhesive Label Die Cutting Machine
Automatic Flatten Adhesive Label Die Cutting MachineOur BeliefWe are creating the first brand of Chinese label machine with all strengthCharacteristicsThe machine adopts flat-bed mode and the material runs stably.Servo motor controls the driving to ensure precise material transportation.The machine ......
Send Inquiry
Product Description
Automatic Flatten Adhesive Label Die Cutting Machine
Our Belief
Our Belief
We are creating the first brand of Chinese label machine with all strength
Characteristics
The machine adopts flat-bed mode and the material runs stably.
Servo motor controls the driving to ensure precise material transportation.
The machine has auto edge correction and electric eye tracer which ensure high precise die-cutting.
It can do die-cutting, waste-off, sheeting, and rewinding in one process.
It is optional for the material to add separate unwinding unit, lamination, stamping and punching.
Multi-function design makes the machine fit for adhesive, nylon, laser anti-counterfeit and blank label die cut. It is corollary a equipment for rotary label printing machine, flexo printer, screen printer etc.
Technical Variables
Optional function
1.To load separated unwinding unit
2.Lamination
3. Pounching
4.Gold stamping
Trade Terms
1.Quotation Validity : 30 days
2.Delivery Time :75 days after the deposit payment received by the seller
3.Country of Origin and manufacturer: HEBEI WANJIE MACHINERY TECHNOLOGY CO.,LTD P.R.CHINA
4.Shipping port: Tianjin Port
5.Payment Terms: T/T and irrevocable L/C at sight
6.Guarantee:12 months starting from the date of signing Acceptance Report for installation and Commissioning.
7.Installation and commissioning in the customer's factory:
8.The seller's engineers' traveling, board and lodging costs and air tickets are for the buyer's account.

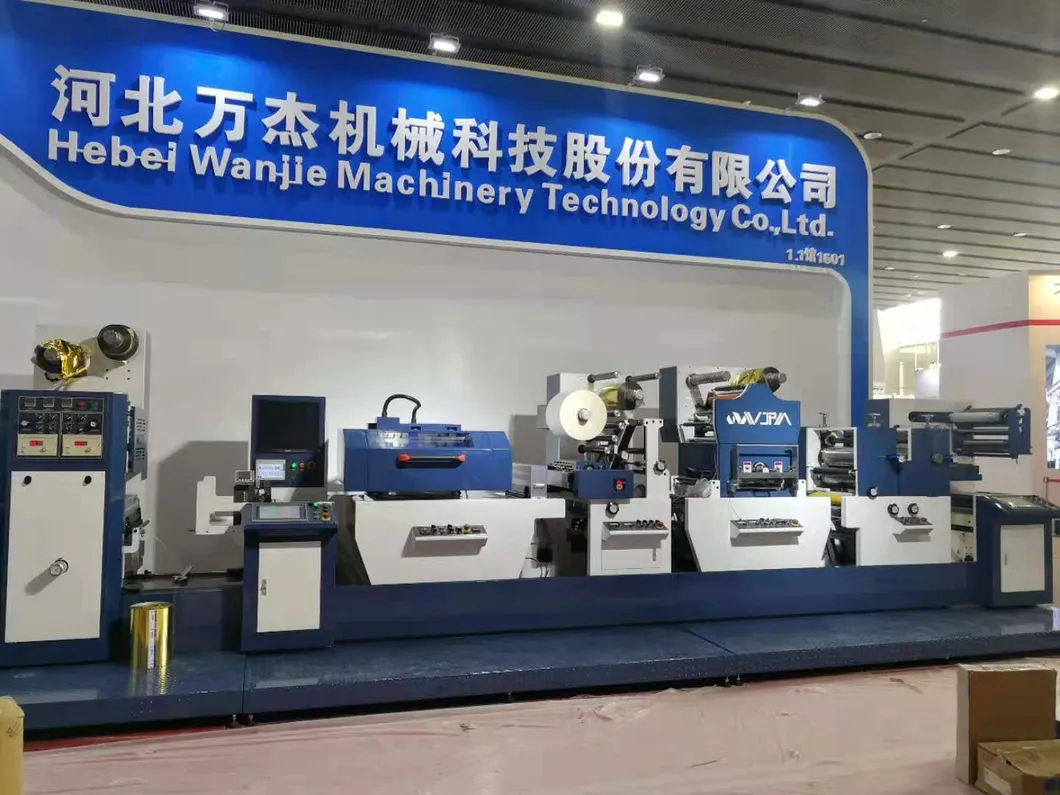

Fair Show
Characteristics
The machine adopts flat-bed mode and the material runs stably.
Servo motor controls the driving to ensure precise material transportation.
The machine has auto edge correction and electric eye tracer which ensure high precise die-cutting.
It can do die-cutting, waste-off, sheeting, and rewinding in one process.
It is optional for the material to add separate unwinding unit, lamination, stamping and punching.
Multi-function design makes the machine fit for adhesive, nylon, laser anti-counterfeit and blank label die cut. It is corollary a equipment for rotary label printing machine, flexo printer, screen printer etc.
Technical Variables
| Model | WJMQ-350A |
| Max speed | 200 times/min. |
| Max unwinding diameter | 450 mm |
| Max paper width | 350 mm |
| Max die-cutting width | 340 mm |
| Max die-cutting length | 340 mm |
| Die-cutting precision | Plus and minus0.1 mm |
| Main power | 2.2 kw |
| Supply voltage | 220V Plus and minus 10 percent |
| Machine weight | About 1800 kg |
| Overall size | 2.8*1.1*1.5 m |
Optional function
1.To load separated unwinding unit
2.Lamination
3. Pounching
4.Gold stamping
Trade Terms
1.Quotation Validity : 30 days
2.Delivery Time :75 days after the deposit payment received by the seller
3.Country of Origin and manufacturer: HEBEI WANJIE MACHINERY TECHNOLOGY CO.,LTD P.R.CHINA
4.Shipping port: Tianjin Port
5.Payment Terms: T/T and irrevocable L/C at sight
6.Guarantee:12 months starting from the date of signing Acceptance Report for installation and Commissioning.
7.Installation and commissioning in the customer's factory:
8.The seller's engineers' traveling, board and lodging costs and air tickets are for the buyer's account.
Fair Show
We are creating the first brand of Chinese label machine with all strength
