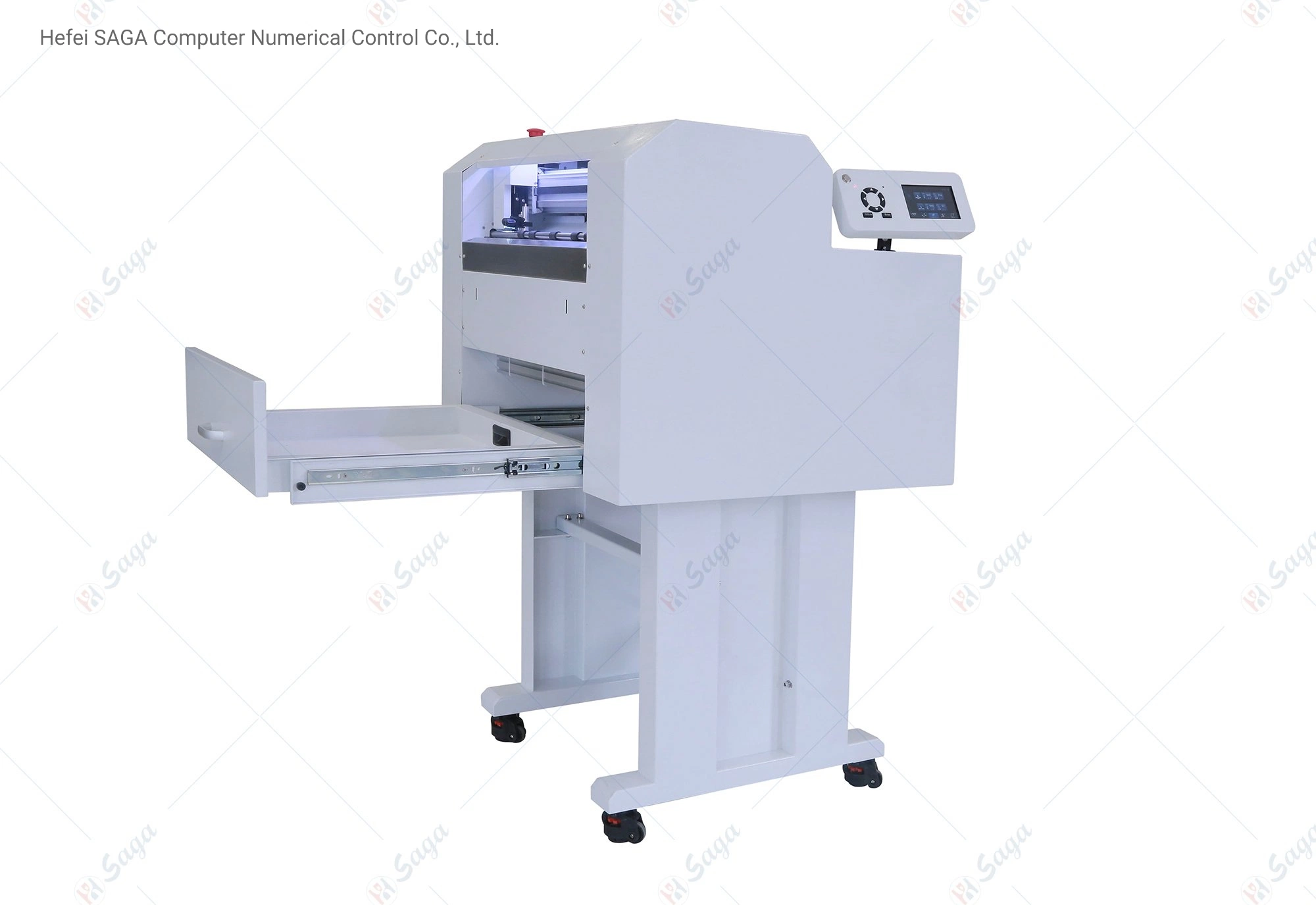

Automatic Digital Feeding Die Cutter Plotter for Self-Adhesive Paper/Cardstocks / Kraft Paper/Acrylic Sheet with Precise and Fast Cutting and Creasing
Automatic high quality sheet cutter to cut and crease stickers & cardboardsProduct Description1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly2. Optimized auto feeding system, more efficiency and no jam3. Physical buttons + touch screen, intelligent human-com......
Send Inquiry
Product Description
1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly

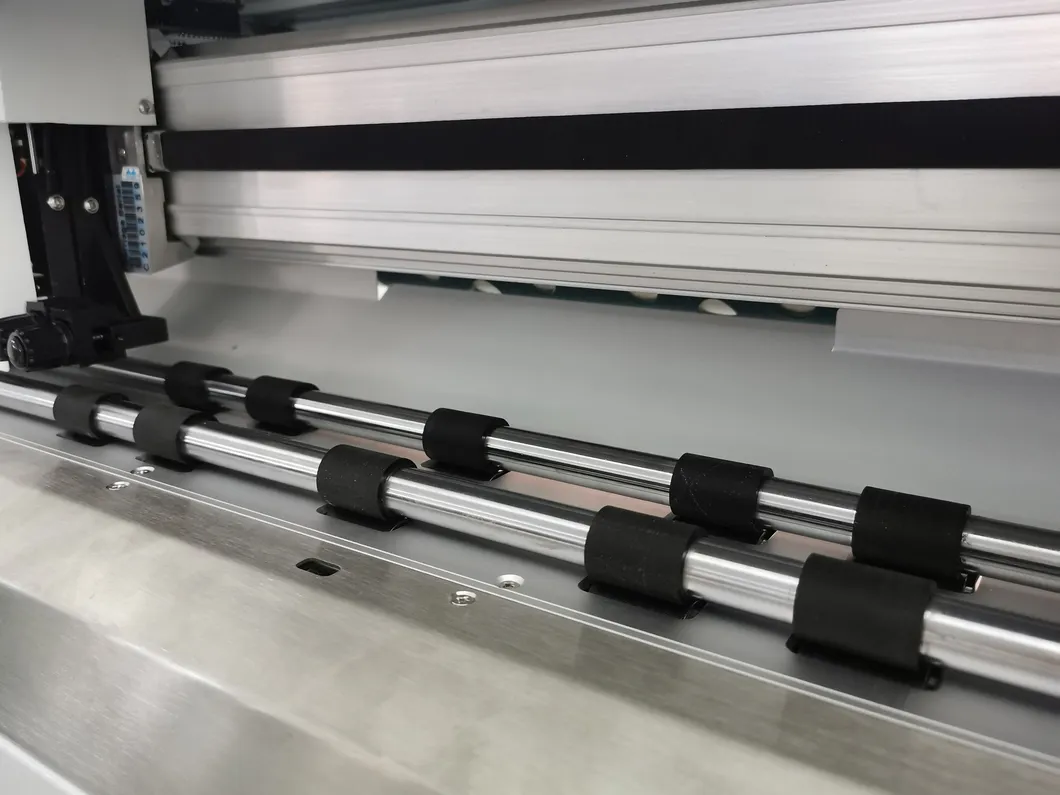

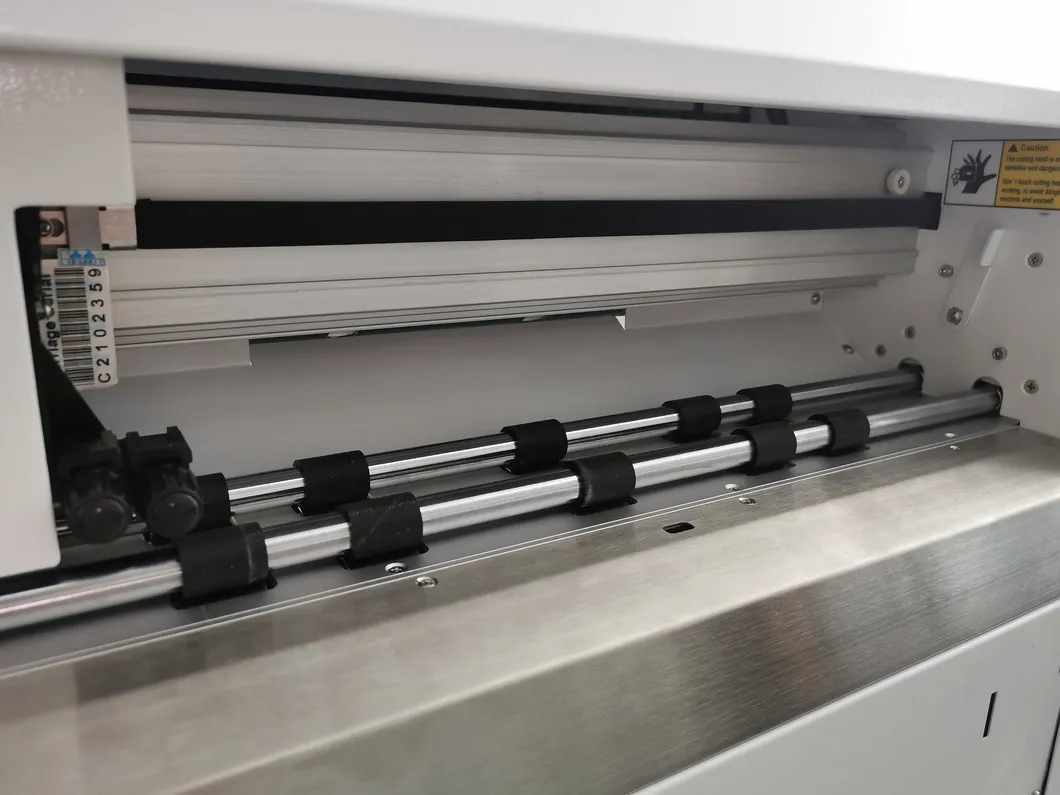

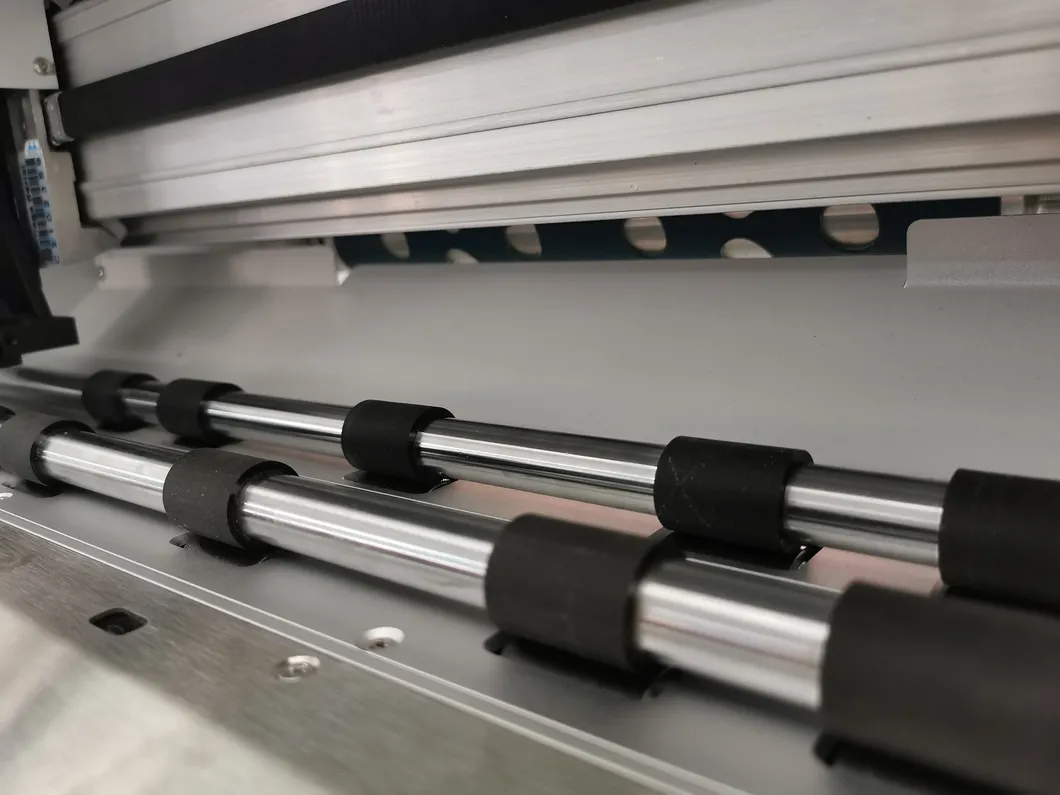

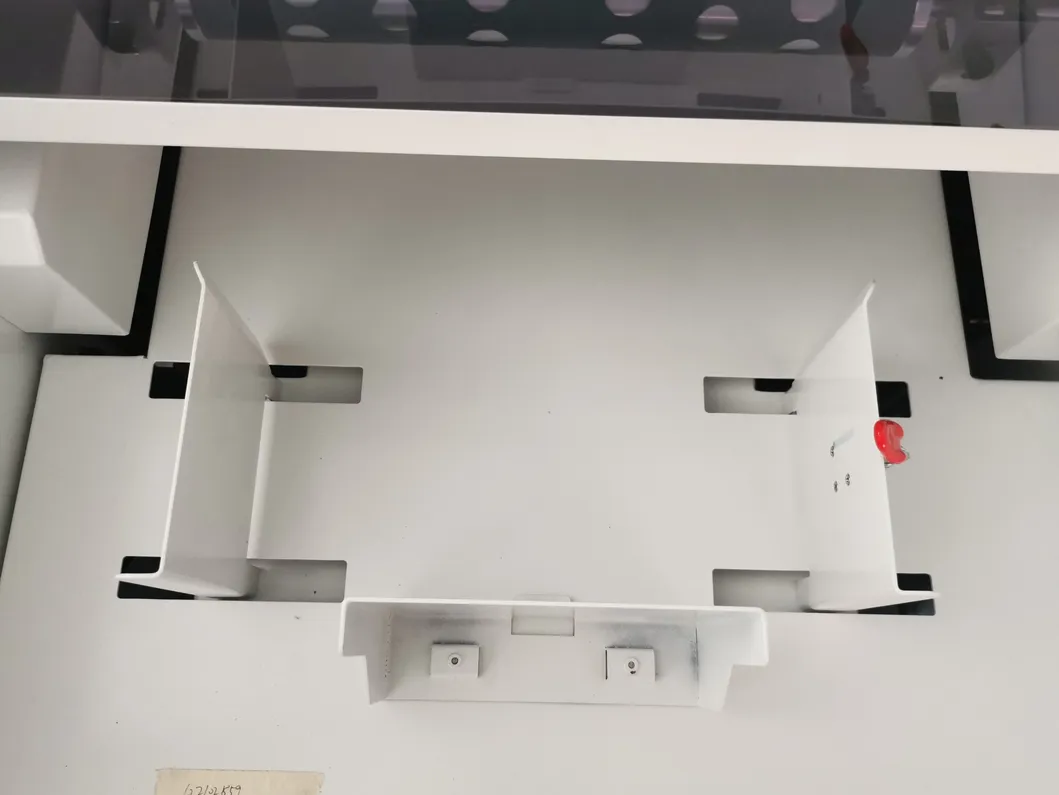

2. Optimized auto feeding system, more efficiency and no jam

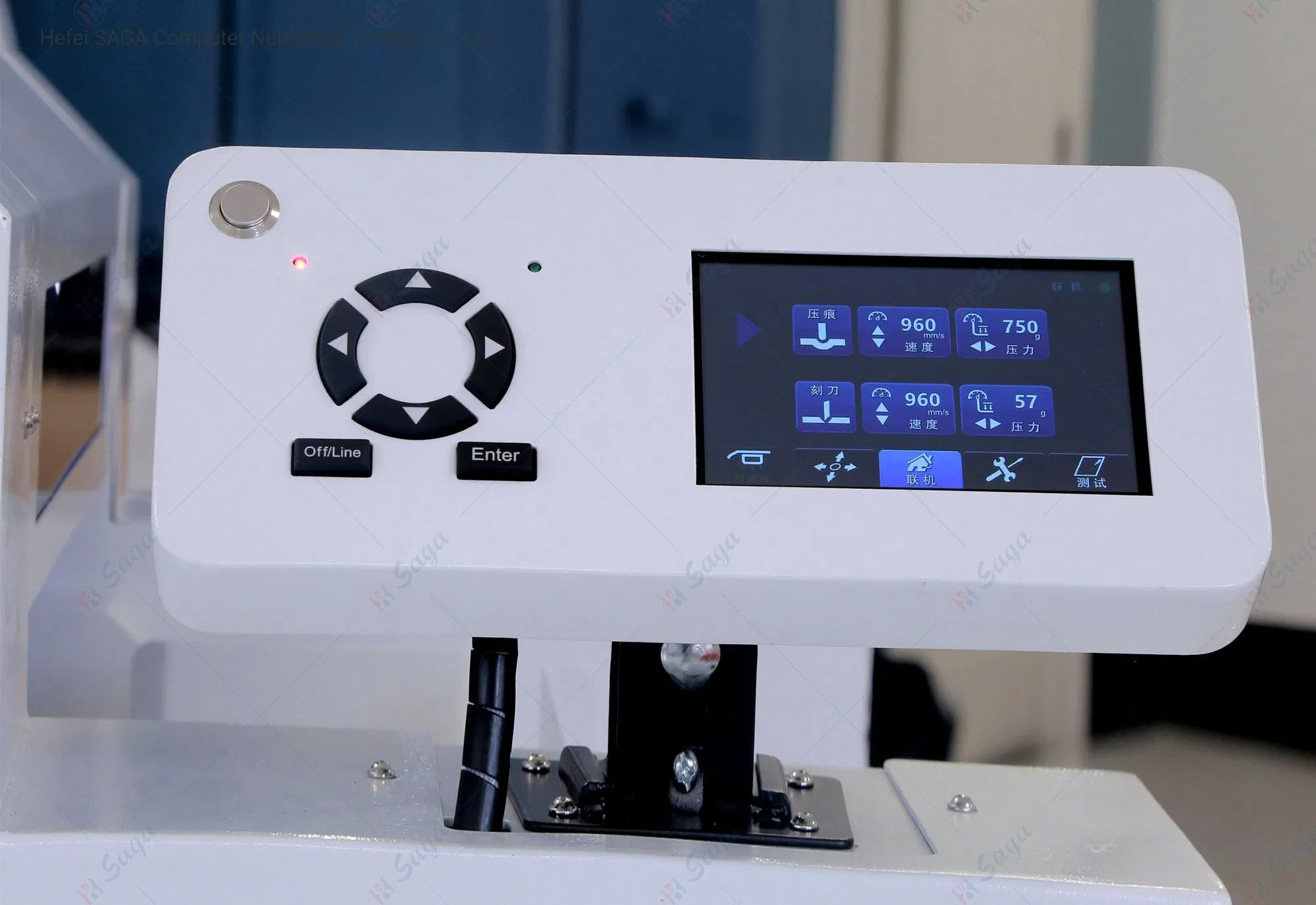

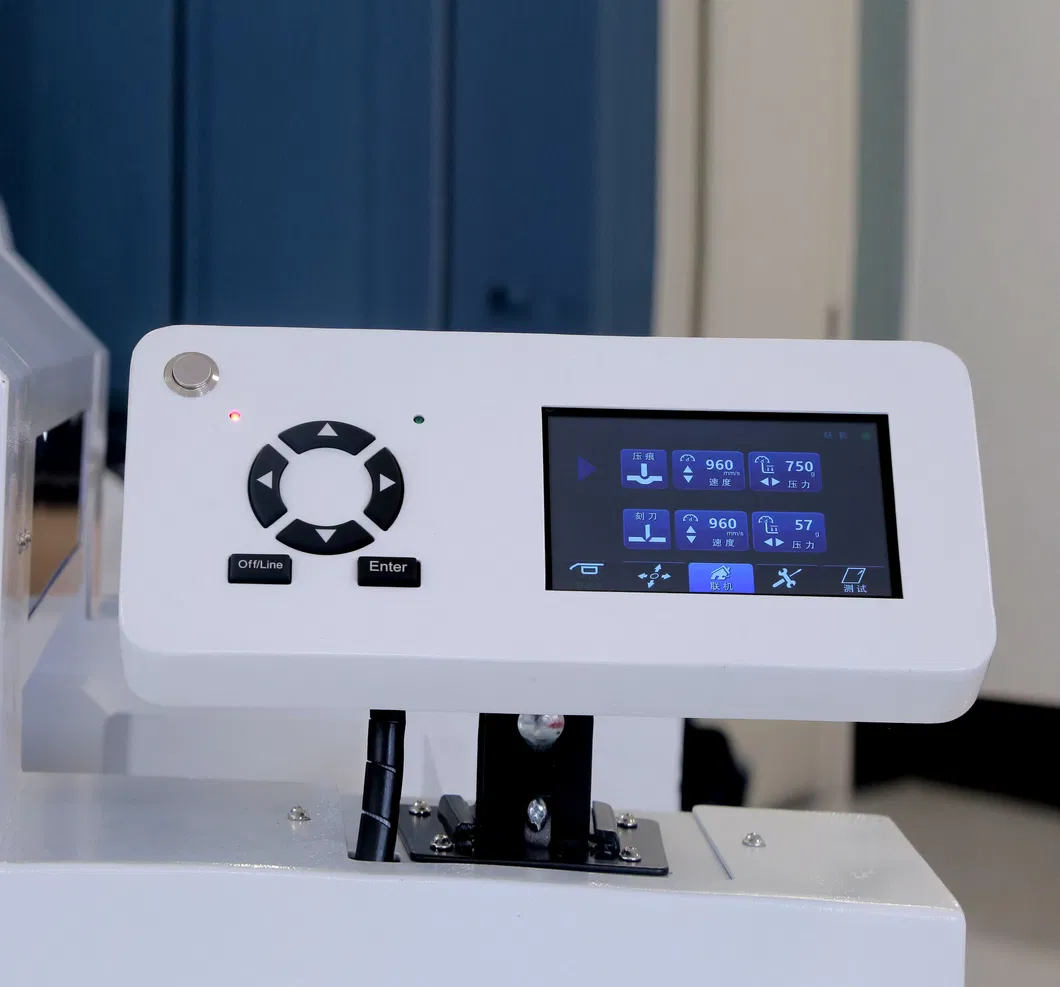

3. Physical buttons + touch screen, intelligent human-computer interaction, easy to operate
4. Industrial grade CCD camera recognition with high-precision

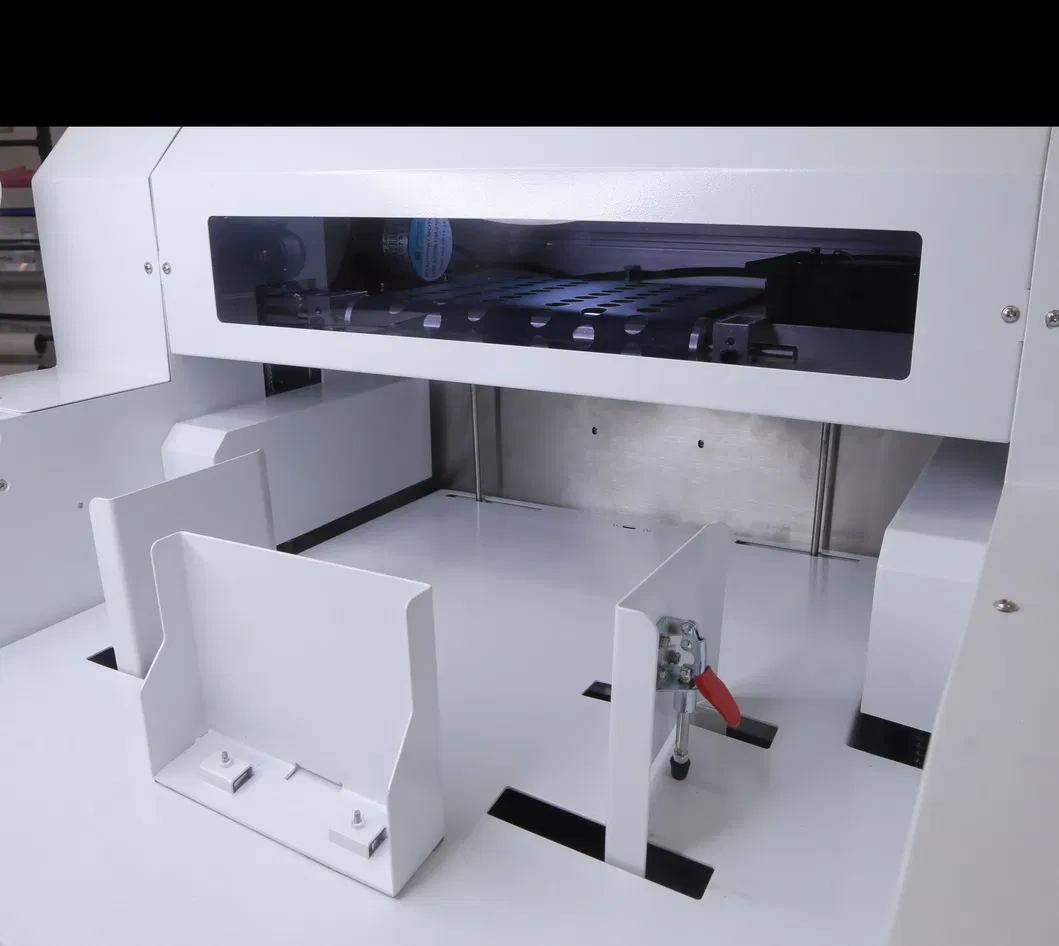

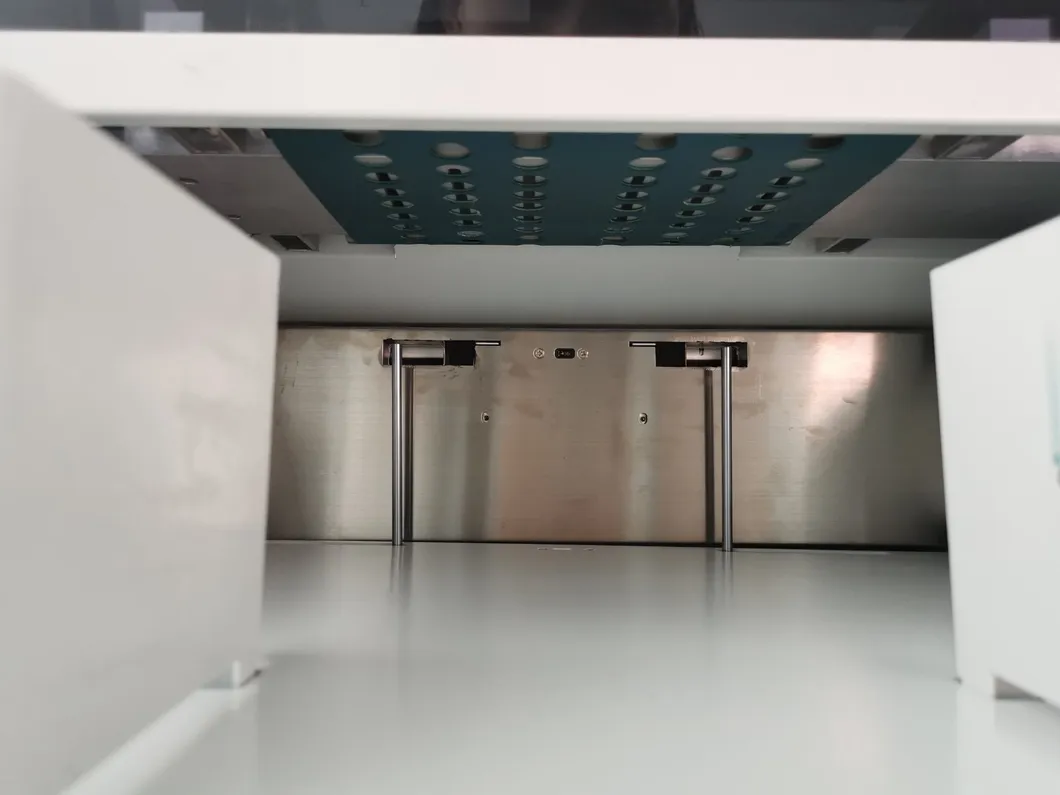

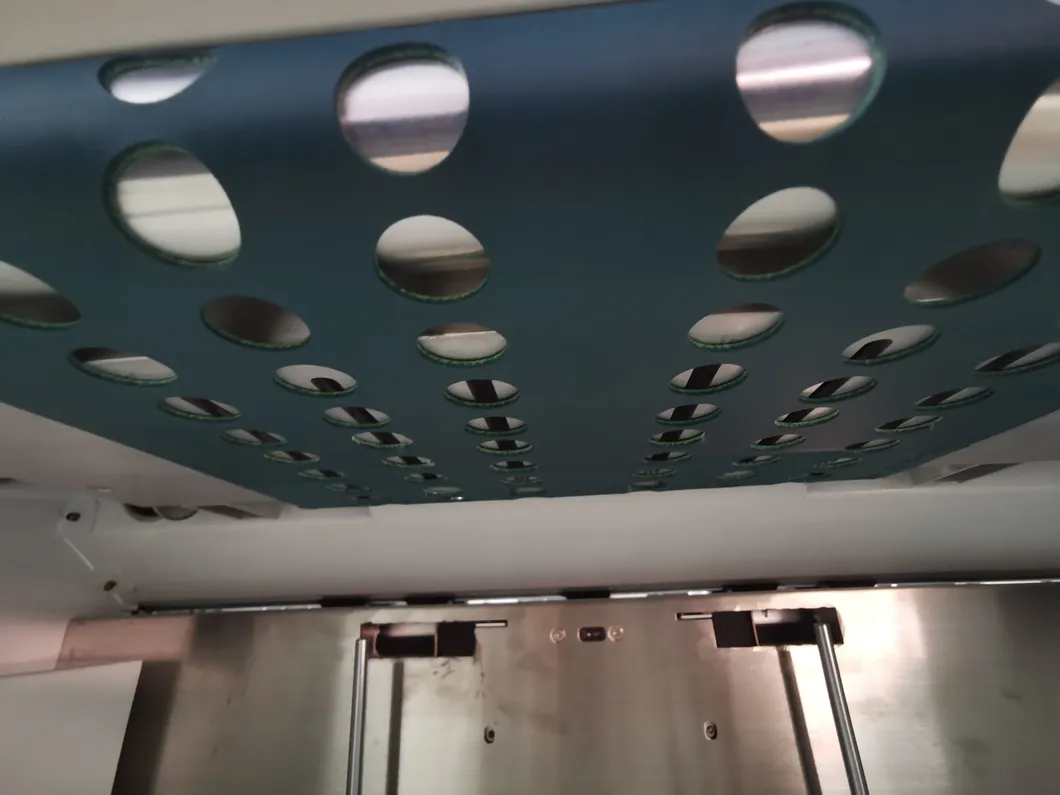

5. Vacuum suction feeding system , quick and stable
Model name | SG-ASC 1907 |
Cutting control system | X- High-power brushless servo motor |
| Positioning sensor type | Digital Camera (CCD) |
| Control panel | 5 inch capacitive touch screen |

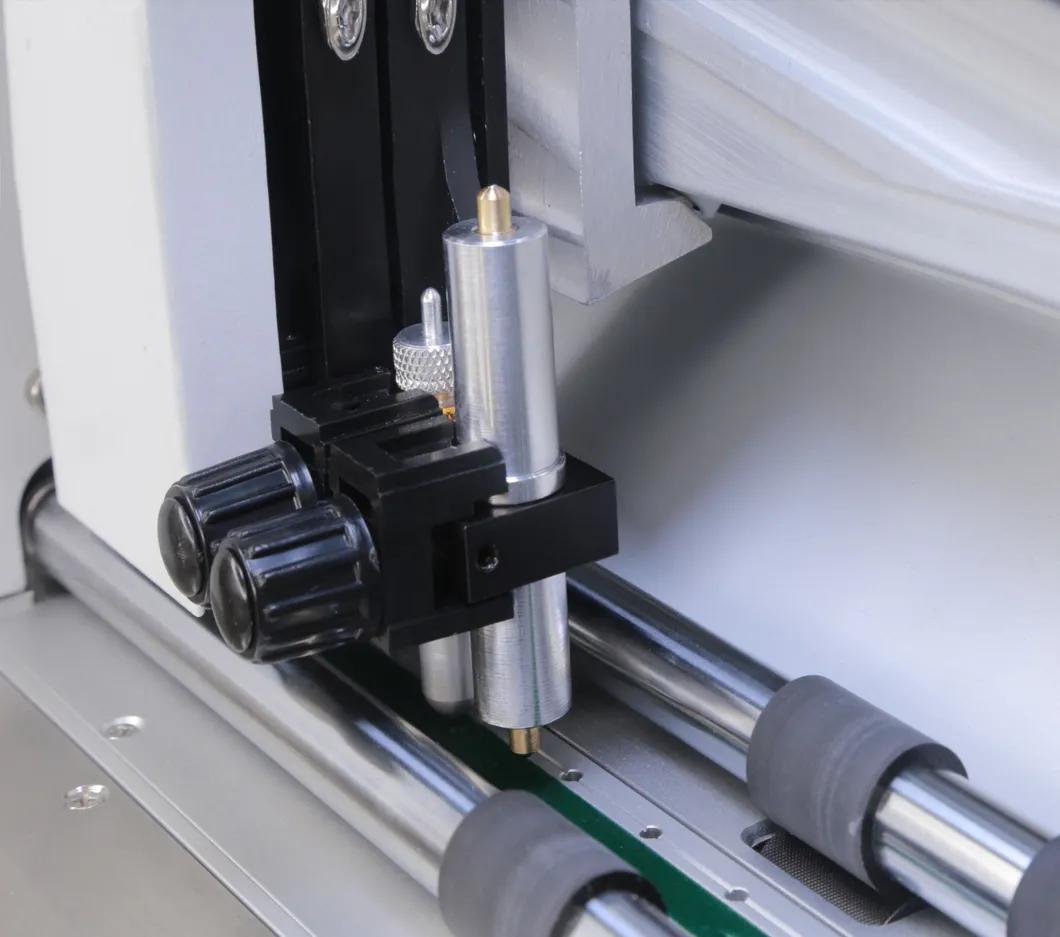

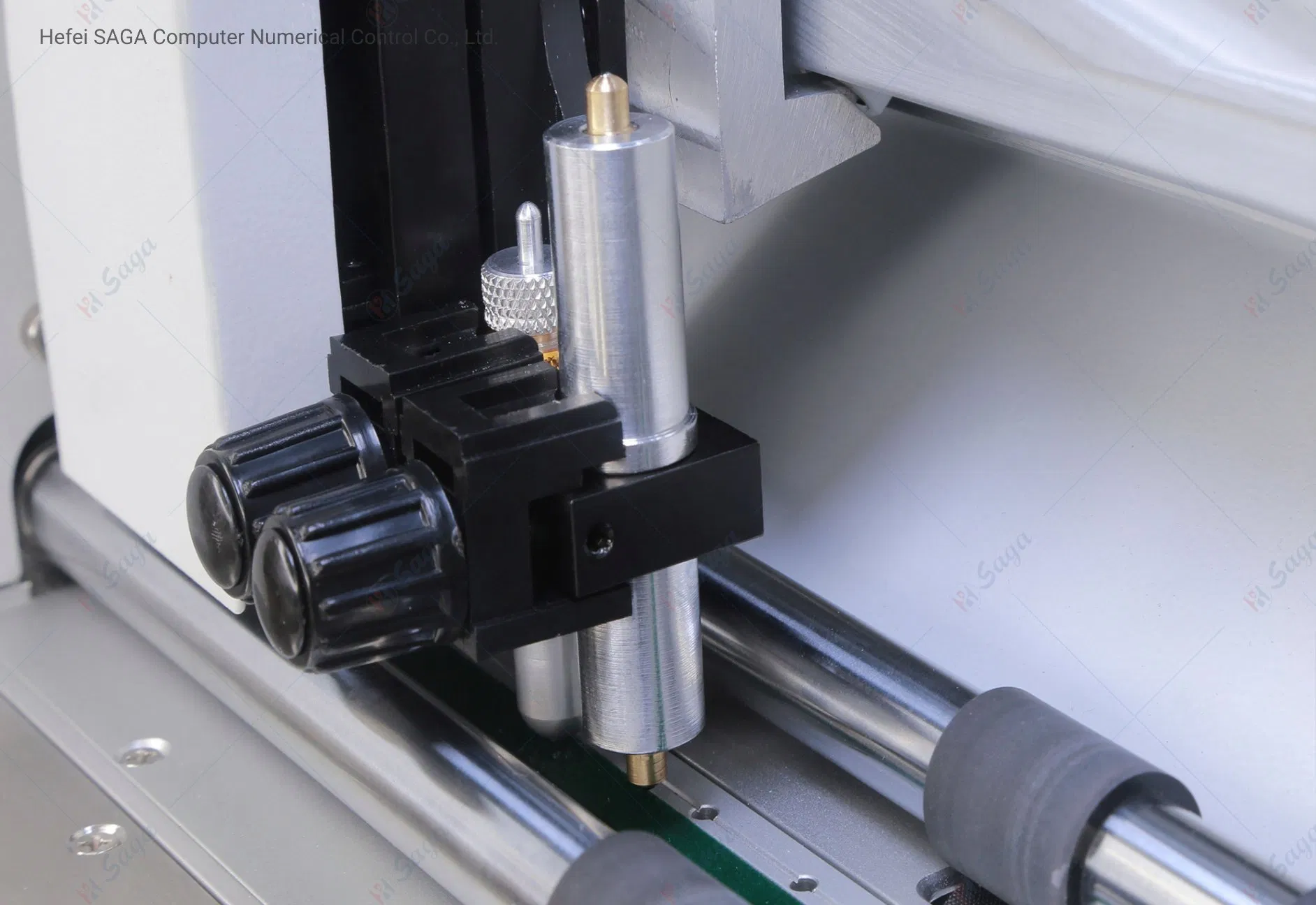

| Number of tool holders | Double tool holders |
| Tools | Blade, creasing tool and pen |
| Machine performance | |
| Media hold method | Vacuum suction |
| Scanning code type | Mark/QR code |
| Maximum cutting size | A3+ (483mmX330mm) |
| Scanning speed | 5-10s |
Maximum actual cutting speed | 12mm/s-960mm/s |
Maximum Cutting Force | Creasing 0-750gf (3gf Step) |
Mechanical resolution | 0.02mm |
Programmable resolution | HPGL0.025mm |
| Repeat precision | ≤0.05 |
| Cutting Media Types | Self-adhesive sticker, cardboard, PVC, etc. |
Software and compatibility | |
Connectivity | USB |
Software and compatibility | Corel Draw,Adobe Illustrator PC only, compatible for windows7, 8,10 (USB interfaces ) |
Power and working environment requirements | |
Voltage and current | 100VAC-120VAC,50/60Hz,Maximum current 6.8A |
Power | 350W |
Voltage and current (Vacuum Pump) | 110VAC,50Hz,Rated current 12.4A,60Hz,Rated current 17.2A |
Power(Vacuum Pump) | 50Hz,1.1KW; 60Hz,1.3KW |
Stand | Included |
Operation environment | Temperature +5°C to+35 °C (41ºF-95ºF), Humility 30% -75% (Non-condensing) |
Dimensions and weights | |
Actual dimensions | L787mm* W740mm*H1320mm |
Package dimensions | L970mm* W970mm*H880mm |
NW/GW | 114kg/146kg |
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
Since funded in 2009, SAGA Computer Numerical Control Co., Ltd has become an integrated high-tech enterprise with its business scope covers R&D, Manufacturing and Trading of Sheet Cutter, Die Cutter, Flatbed Cutter, Vinyl Cutter, Paper Trimmer, Inkjet/Garment Plotter, Down/Fiber Filling Machine, heat presses, as well as other printing and cutting solutions. Besides hardware, SAGACNC also develops and provides certain software applications for all associated products.
SAGACNC currently possesses an 8000 square-meter factory, and more than 100 employees. We have an annual yield of 20000 units of machines which are exported to over 40 countries and regions. With professional high-notch systems development team and mechanical design team of over 30 engineers, SAGACNC assures its products all designed and developed with independence, rationality, stability and continuity. After a decade of development, SAGACNC has made its name with good reputation and track-record via the excellent product quality and service concept.
In the new era, SAGACNC will constantly develop and provide the best quality products with competitive price to make SAGA a world-class premium brand, a benchmark in printing and cutting industry.
