Adhesive Label Die Cutting Machine (750* 520mm , ML-750)
Product Feature1. CE certified2. Max sheet size: 750mm*520mm3. Top quality material for machine body4. High standard safety system5. Hot saleCertification(s): CE, ISO9001Creasing and Die Cu......
Send Inquiry
Product Description
Product Feature
1. CE certified
2. Max sheet size: 750mm*520mm
3. Top quality material for machine body
4. High standard safety system
5. Hot sale
Certification(s): CE, ISO9001

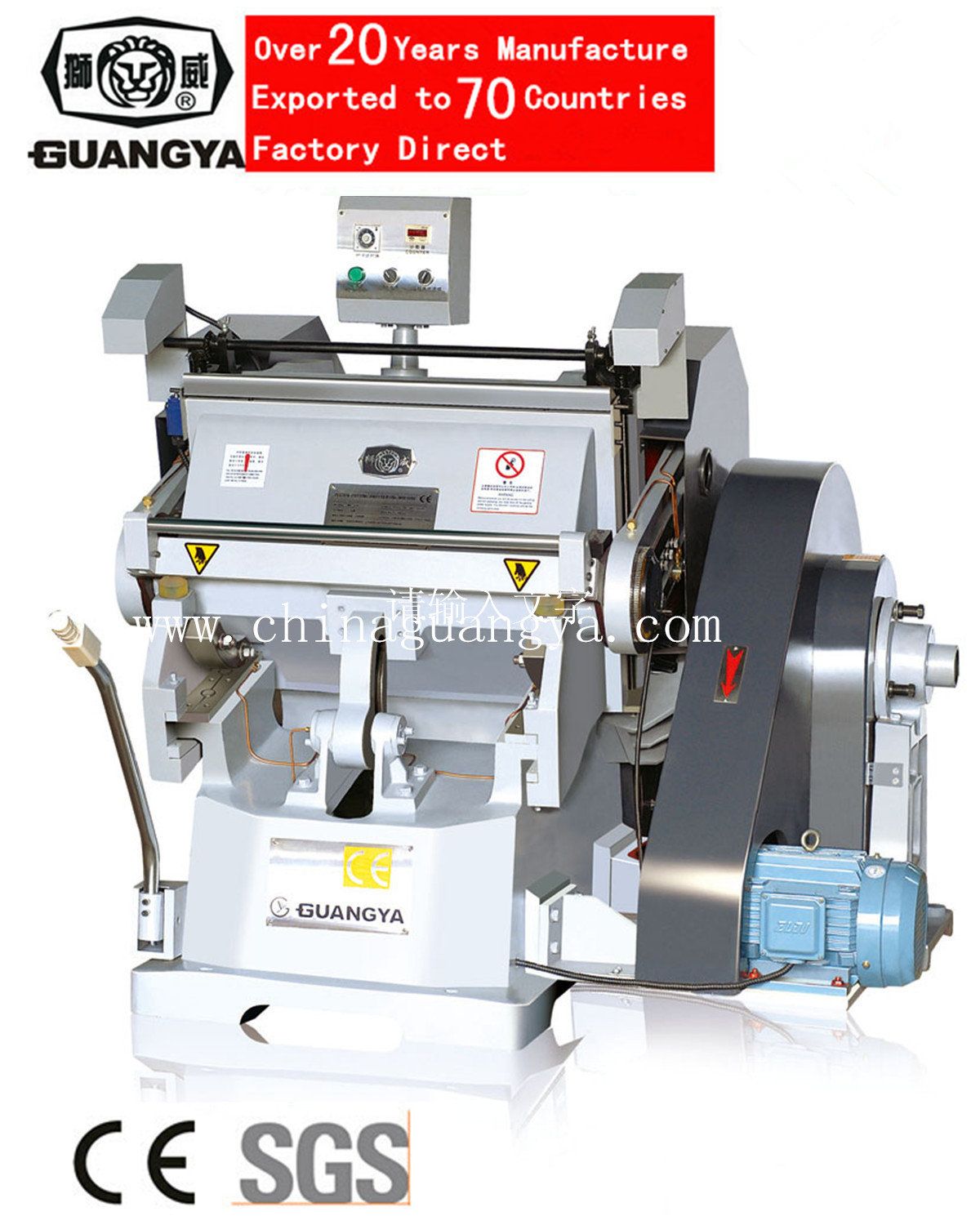

Creasing and Die Cutting Machine is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases with moveable bar.
1. CE certified
2. Max sheet size: 750mm*520mm
3. Top quality material for machine body
4. High standard safety system
5. Hot sale
Certification(s): CE, ISO9001
Creasing and Die Cutting Machine is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases with moveable bar.
Model | ML-750 |
| Inside chase(mm) | 750×520 |
| Max. die cutting size(mm) | 750×520 |
| Speed(cuts/min) | 28±2 |
| Max. rule length (m) | ≤15 |
| Power main motor(kw) | 2.2 |
| Gross weight (kg) | 2,000 |
| Dimensions (L×W×H) (mm) | 1650×1540×1650 |
